Lexmark E352DN Service Manual

4-8 Lexmark™ E350d, E352dn
4512-420, -430

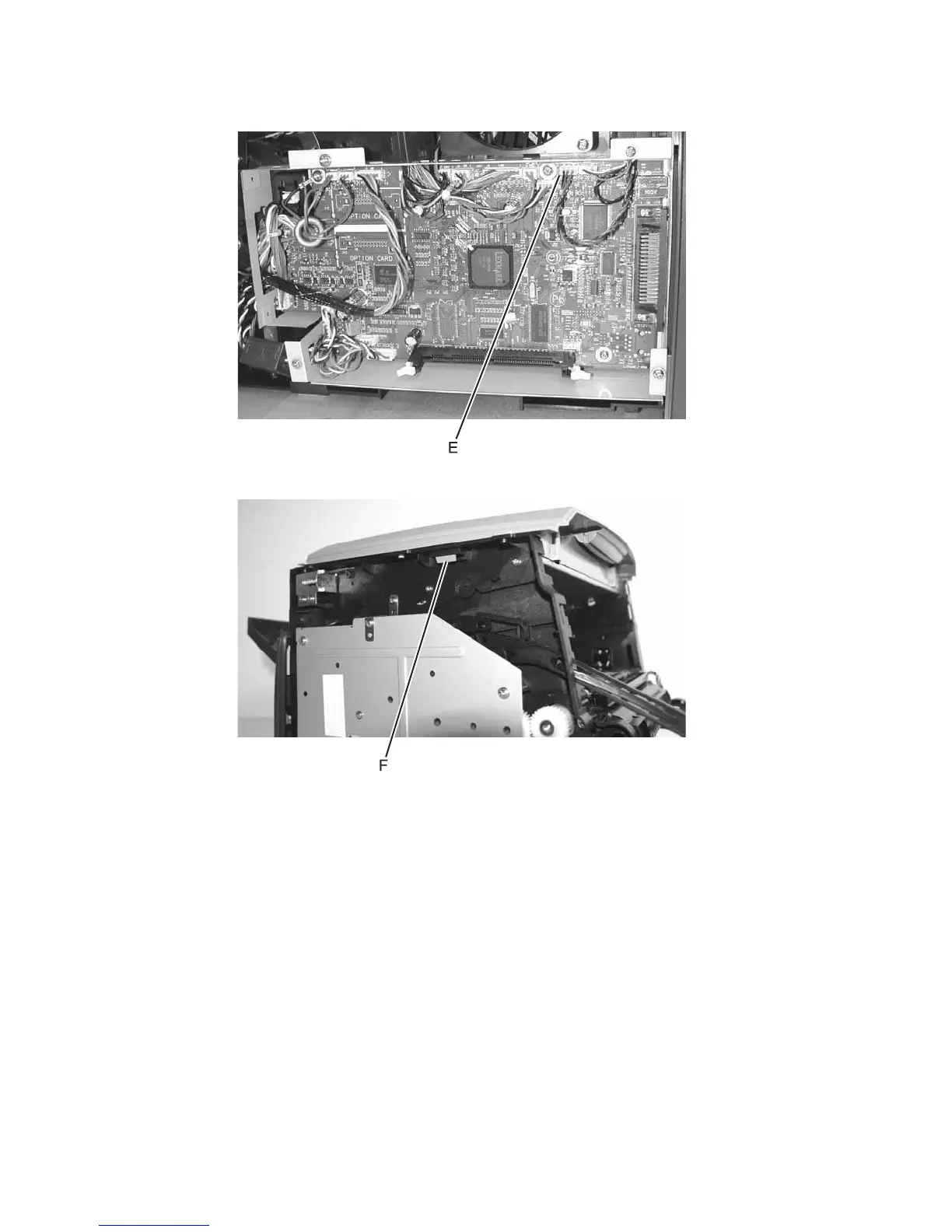

8. Disconnect the cable (E) of the narrow media sensor from J10 on the controller card.
9. Free the cable while noting which top frame opening it goes through.
10. Release the latches (F) on both sides to unhook the top cover.
11. Lift and remove the top cover.
Installation note:
• Be sure to re-route the cable back through the same hole.
• Be sure that the ground strap aligns at screw (C).
• Verify the proper alignment of the top cover with the paper exit guide along the mating edges at the rear of
the exit tray.
• Verify that the rollers in the top cover contact the exit guide rollers at the top rear. There are arrows under
the top cover to verify the location of the rollers.

Lexmark E352DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 2400 DPI
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Internal memory	32 MB
Maximum internal memory	160 MB
Sound pressure level (printing)	52 dB
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Maximum print size	210 x 297 mm
Media weight (tray 1)	80 gsm
Paper tray media types	Envelopes, Labels, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk, TCP/IP IPv6
Compatible operating systems	Mac OS X Mac OS 9.x Citrix MetaFrame Linux Microsoft Windows 2000, NT, Me, XP, Server 2003, 98, Vista Novell UNIX
Maximum duty cycle	80000 pages per month
Sustainability certificates	ENERGY STAR
Operating altitude	0 - 2500 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	FCC Class B, UL 60950-1, U.S. FDA, IEC 320-1, CSA, ICES Class B, CE Class B, CB IEC 60950-1, IEC 60825-1, GS (TÜV), SEMKO, UL AR, CS, TÜV Rh, N Mark, ACA C-tick Class B, CCC Class B, BSMI Class B, MIC, EK Mark, PSB

Weight and Dimensions

Dimensions (WxDxH)	396 x 359 x 259.5 mm
