LG 32LN540B Service Manual

- 20 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

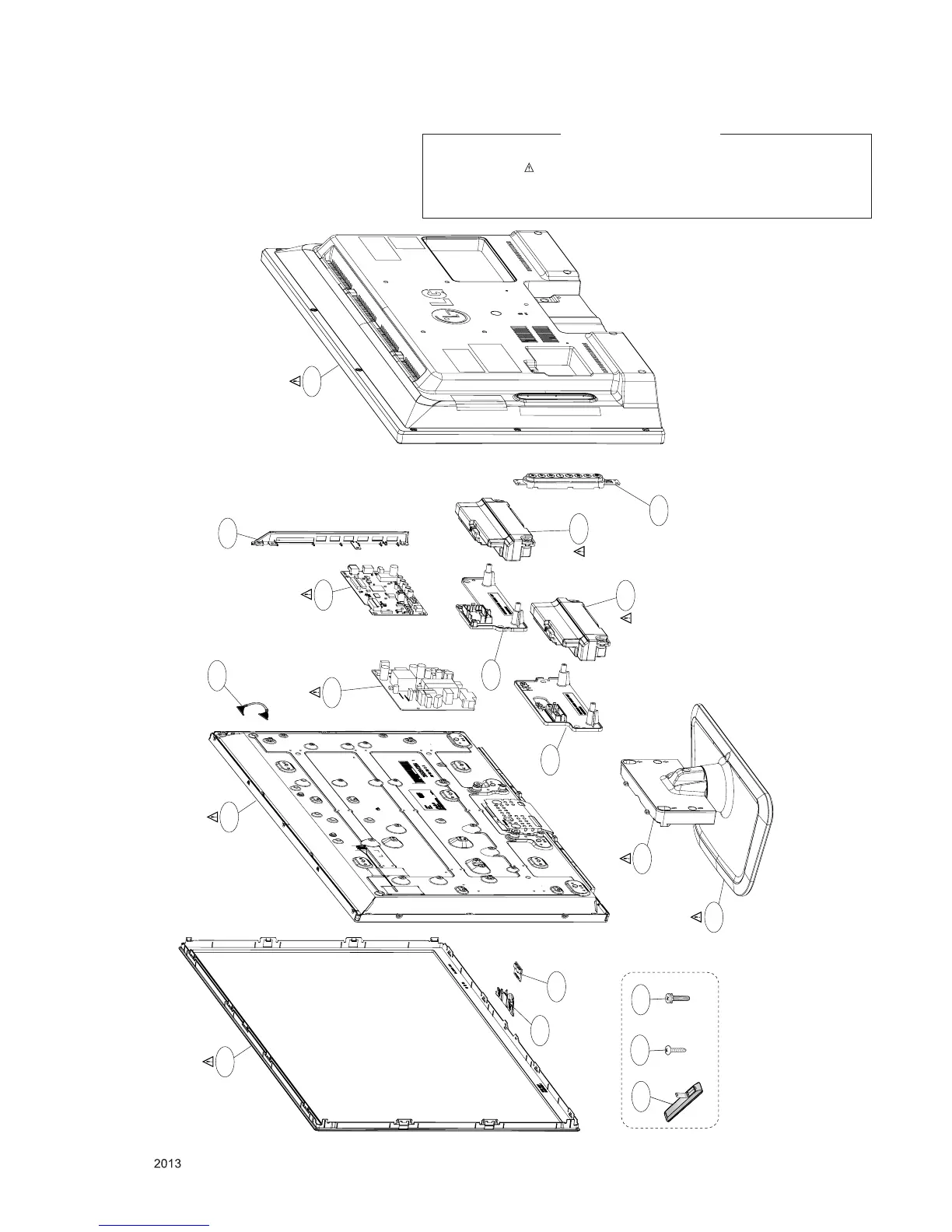

EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
A2
A9
A10
900
200
400
540
521
530
500
301
910
120
300
510
123
122
121
Set + Stand
Stand Base
+
Stand Body
LV1

LG 32LN540B Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	32 \
Display brightness	- cd/m²
Display resolution	1360 x 768 pixels
Native aspect ratio	16:9
Native refresh rate	50 Hz
LED backlighting type	Direct-LED
Display diagonal (metric)	81.2 cm
Supported graphics resolutions	1360 x 768 (WXGA)
Motion interpolation technology	MCI (Motion Clarity Index) 100
3D	No
Annual energy consumption	57 kWh
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 85 %
Operating relative humidity (H-H)	0 - 80 %
Tuner type	Analog & digital
Analog signal format system	-
Digital signal format system	DVB-C, DVB-T
Audio system	Virtual Surround
RMS rated power	20 W
Number of speakers	2
HDMI version	1.4
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Audio formats supported	AAC, AC3, HE-AAC, MP3, PCM
Image formats supported	JPG, JPS, MPO
Video formats supported	DIVX, MPEG
Product color	Black
Mercury content	0 mg
Panel mounting interface	200 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	12.3 W
Power consumption (typical)	39 W
Cables included	AC
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth (with stand)	207 mm
Height (with stand)	497 mm
Weight (with stand)	6700 g
Depth (without stand)	79 mm
Width (without stand)	738 mm
Height (without stand)	437 mm
Weight (without stand)	6000 g
