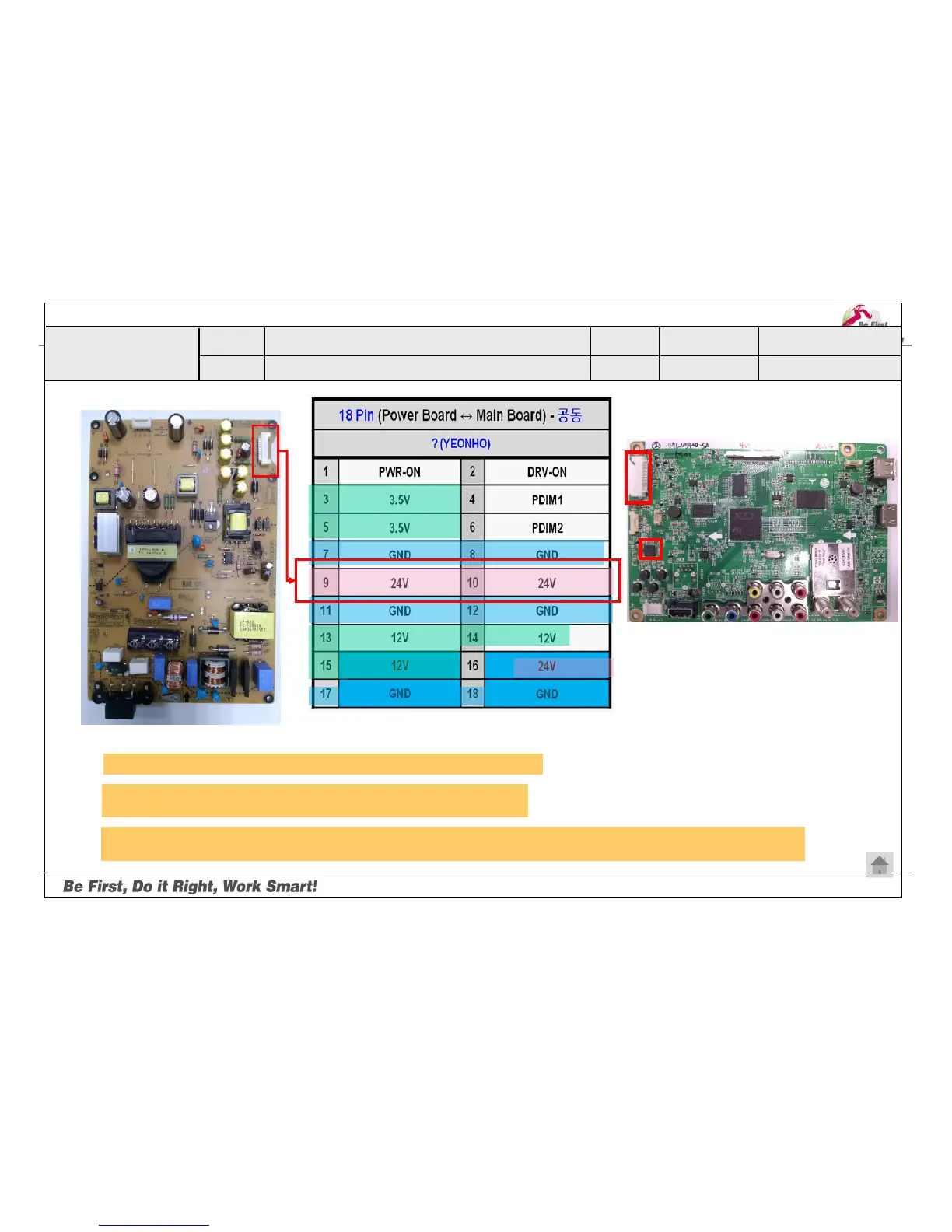

Checking order when there is no audio
Check the contact condition of or 24V connector of Main Board
Measure the 24V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the
GND and output terminal, the speaker is normal.
Standard Repair Process Detail Technical Manual
Voltage and speaker checking method
when there is no audio
C. Audio error_No audio/Normal video
