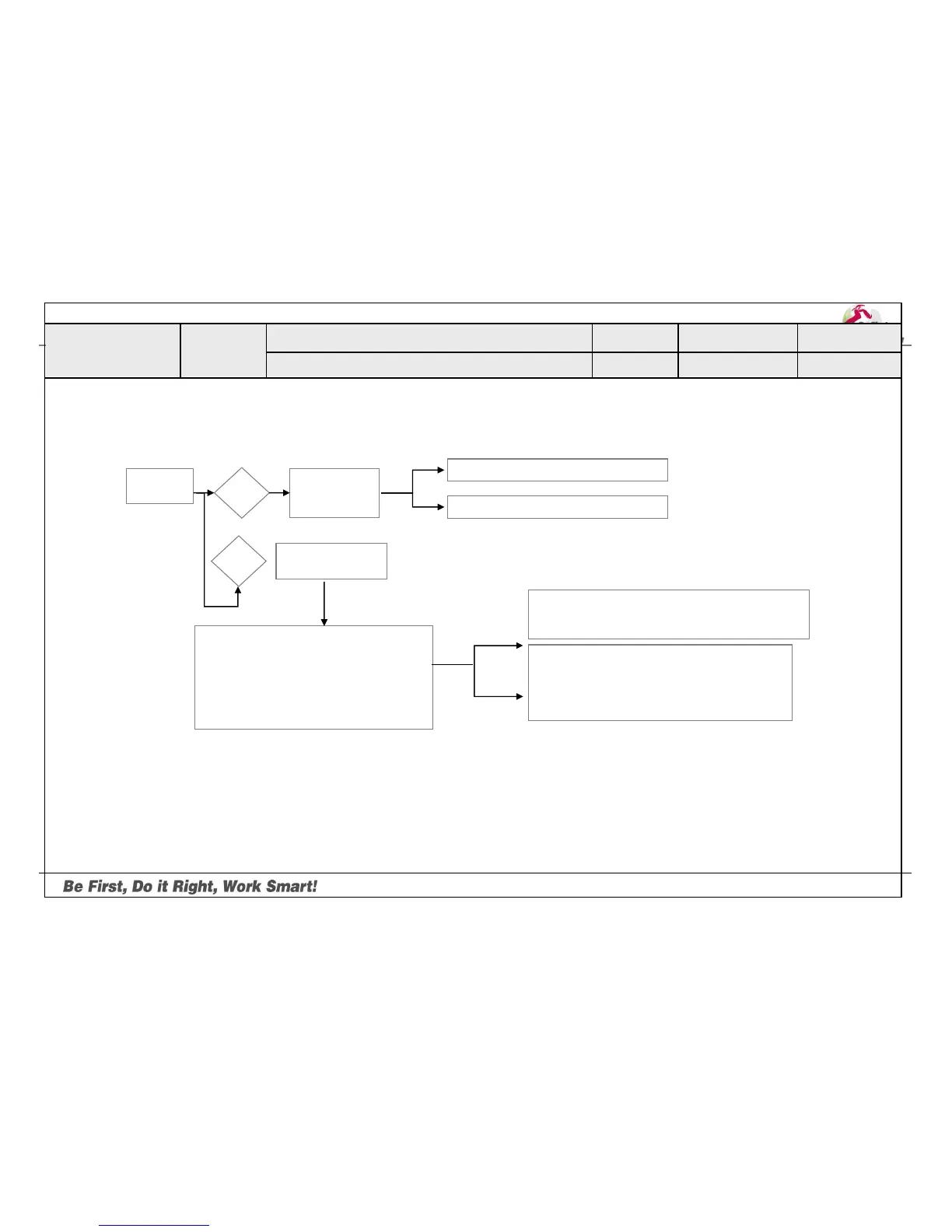

Check
location of
noise
Identify
nose type
Circuit
noise
Replace PSU(with LED driver)
Replace LED driver
Mechanical
noise
Check location of
noise
OR
When the nose is severe, replace the module
(For models with fix information, upgrade the S/W
or provide the description)
OR
※ If there is a “Tak Tak” noise from the cabinet,
refer to the KMS fix information and then
proceed as shown in the solution manual
(For models without any fix information, provide
the description)
OR
※ Mechanical noise is a natural
phenomenon, and apply the 1st level
description. When the customer does not
agree, apply the process by stage.
※ Describe the basis of the description in
“Part related to nose” in the Owner’s
Manual.
E. Noise
Circuit noise, mechanical noise
Established
date
Revised date
13/14
LCD TV
Error
symptom
Standard Repair Process
2012. 01 .14
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
