THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
IR/CONTROL
2012/07/18
6
NC4_S7LRM
C607
0.1uF
16V
OPT
R601
100
+3.5V_ST
L600
BLM18PG121SN1D
KEY2
R602
10K
1%
IR
R600
100
C604
100pF
50V
+3.5V_ST
C603
1000pF
50V
R603
10K
1%
C602
0.1uF
16V
KEY1
+3.5V_ST
R607
3.3K
LED_R/BUZZ
P600
12507WR-08L
1
2
3
4
5
6
7
8
9
R610
1.8K
L601
BLM18PG121SN1D
CONTROL_FILTER
L602
BLM18PG121SN1D
CONTROL_FILTER
C608
0.1uF
16V
CONTROL_FILTER
C609
0.1uF
16V
CONTROL_FILTER
R611
0
CONTROL_NO_FILTER
R612
0
CONTROL_NO_FILTER

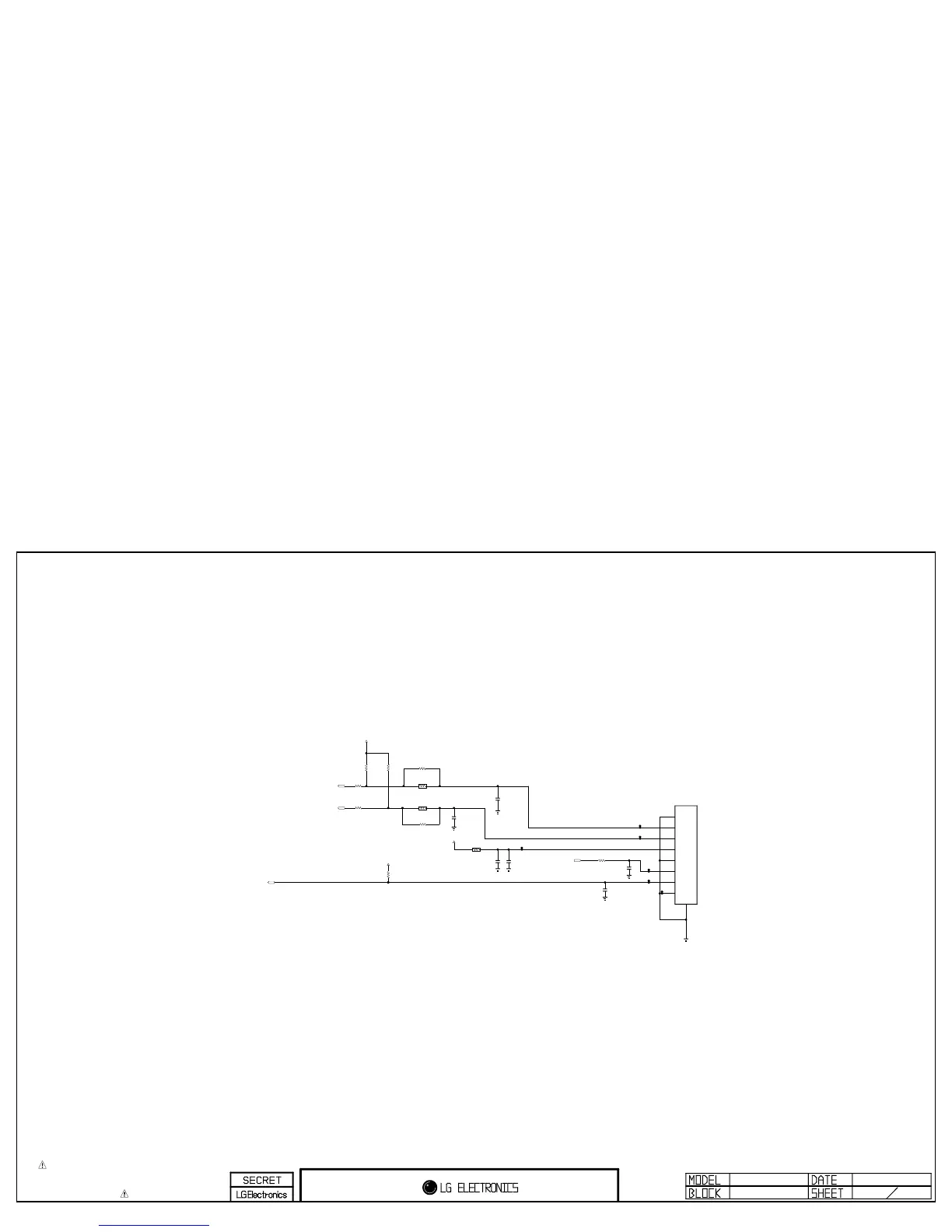

IR/LED and Control
Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
