74
206-4340
Reference: External Stereo Speaker Specications
SPEAKER OUT
LINE OUT
1
3
2

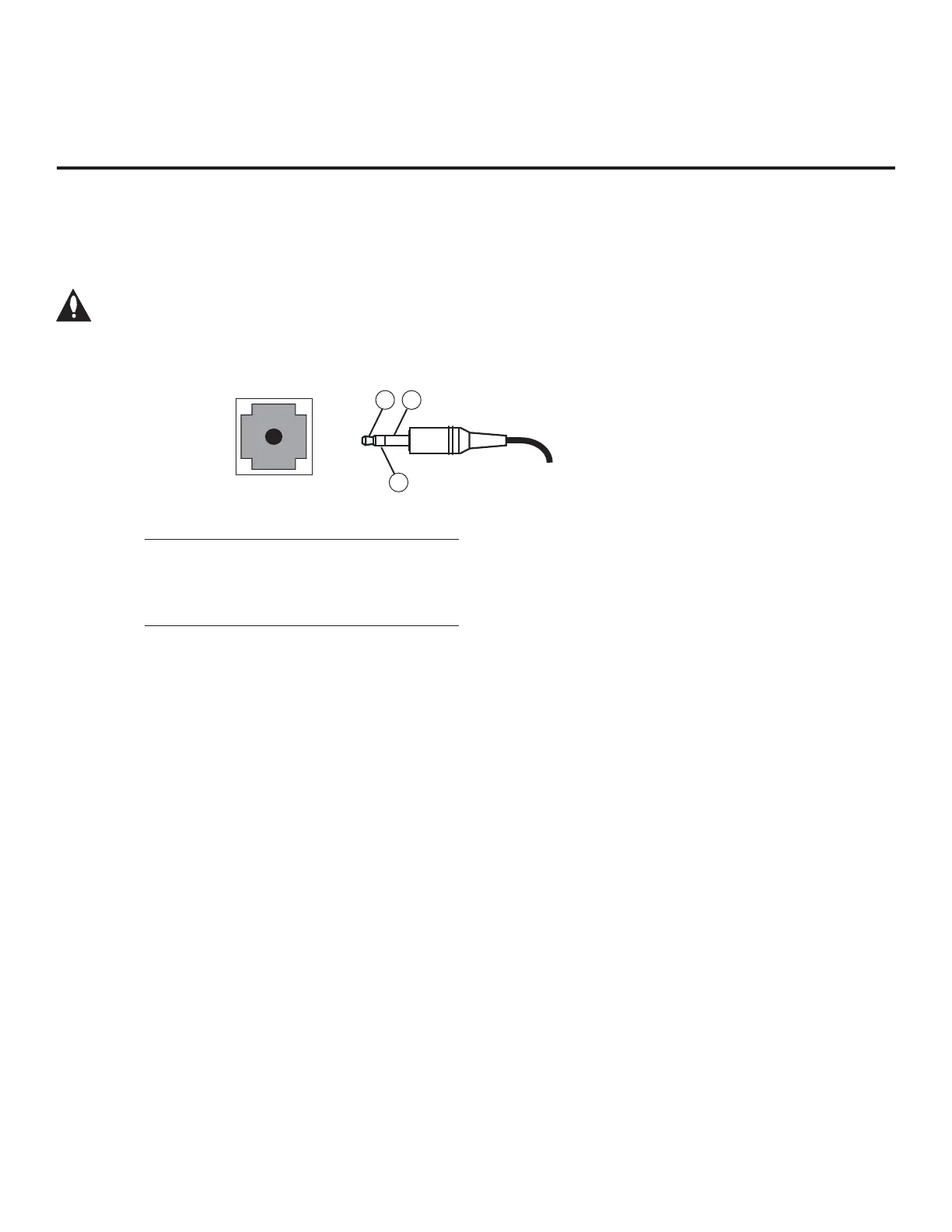

1 LEFT (Tip)
2 RIGHT (Ring)
3 GROUND (Sleeve)
The SPEAKER OUT / LINE OUT 3.5 mm stereo jack on the LT570H rear panel provides stereo speaker
signal outputs (xed speaker, variable speaker, or xed line level [amplier]) for external audio equipment.
Set Installer Menu item 097 AUDIO OUTPUT as required in accordance with external audio equipment
connected to the TV. Also, refer to the following diagram for pinout details.
Caution: Do NOT insert a mono plug, as this may damage the TV.
