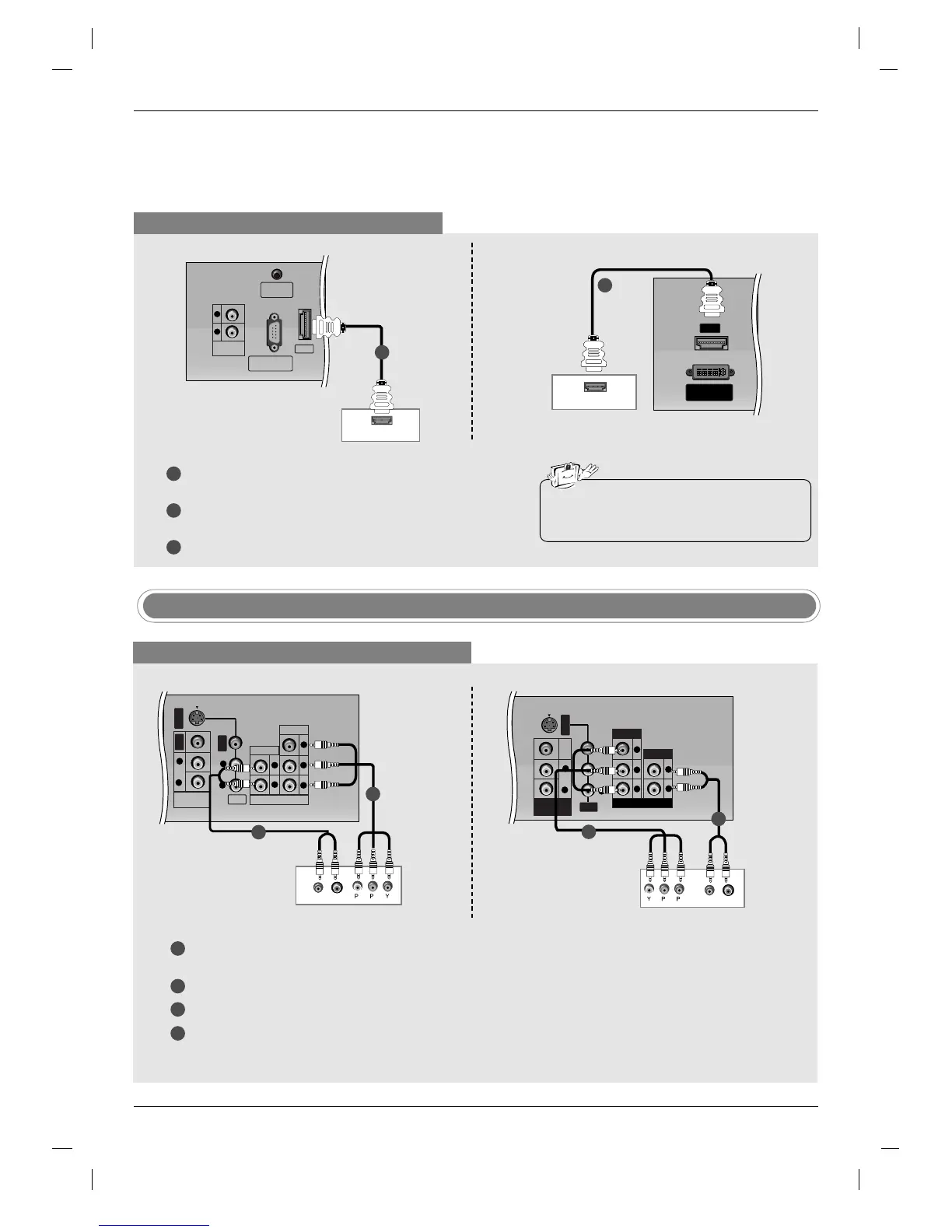

STB ( Set-Top Box) Setup
External Equipment Connections
External Equipment Connections
Installation
Installation
When connecting with a HDMI cable
1
2
3
Connect the HDMI output of the DVD player to the HDMI jack on
the set.
Select
HDMI DTV input source with using the INPUT button on
the remote control.
Refer to the DVD player's manual for operating instructions.
• TV can receive the video and audio signal
simultaneously with using a HDMI cable.
HDMI
RS-232C INPUT
(CONTROL/SERVICE)
REMOTE
CONTROL
VARIABLE
AUDIO OUT
R
L
HDMI OUTPUT
DVD
1
1
HDMI OUTPUT
HDMI
DVI INPUT
(PC/DTV INPUT)
DVD
When connecting with a component cable
1
2
3
4
Connect the video outputs (Y, PB, PR) of the digital set-top box to the COMPONENT VIDEO (Y, PB, PR) jacks
on the set.
Connect the audio outputs of the digital set-top box to the COMPONENT AUDIO jacks on the set.
Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)
Select
Component 1 input source with using the INPUT button on the remote control.
- If connected to Component 2, select
Component 2 input source.
TV Back panel (32inch)
TV Back panel (26inch)
S-VIDEO
PR
PB
Y
R
L
VIDEO
COMPONENT 1
AUDIO
VIDEO
AUDIO
R
L
AV
VIDEO
AUDIO
R
L
MONITOR
OUT
B
R
(R) AUDIO (L)
DTV Receiver (Set-top Box)
TV Back panel (32inch)
1
2
AV
S-VIDEO
AUDIO
VIDEO
R
L
R
PR PB Y
L
VIDEO
COMPONENT 1
AUDIO
VIDEO
AUDIO
R
L
MONITOR
OUT
B
R
(L)AUDIO(R)
DTV Receiver (Set-top Box)
TV Back panel (26inch)
1
2
