LG 32LX2R Series User Manual

20

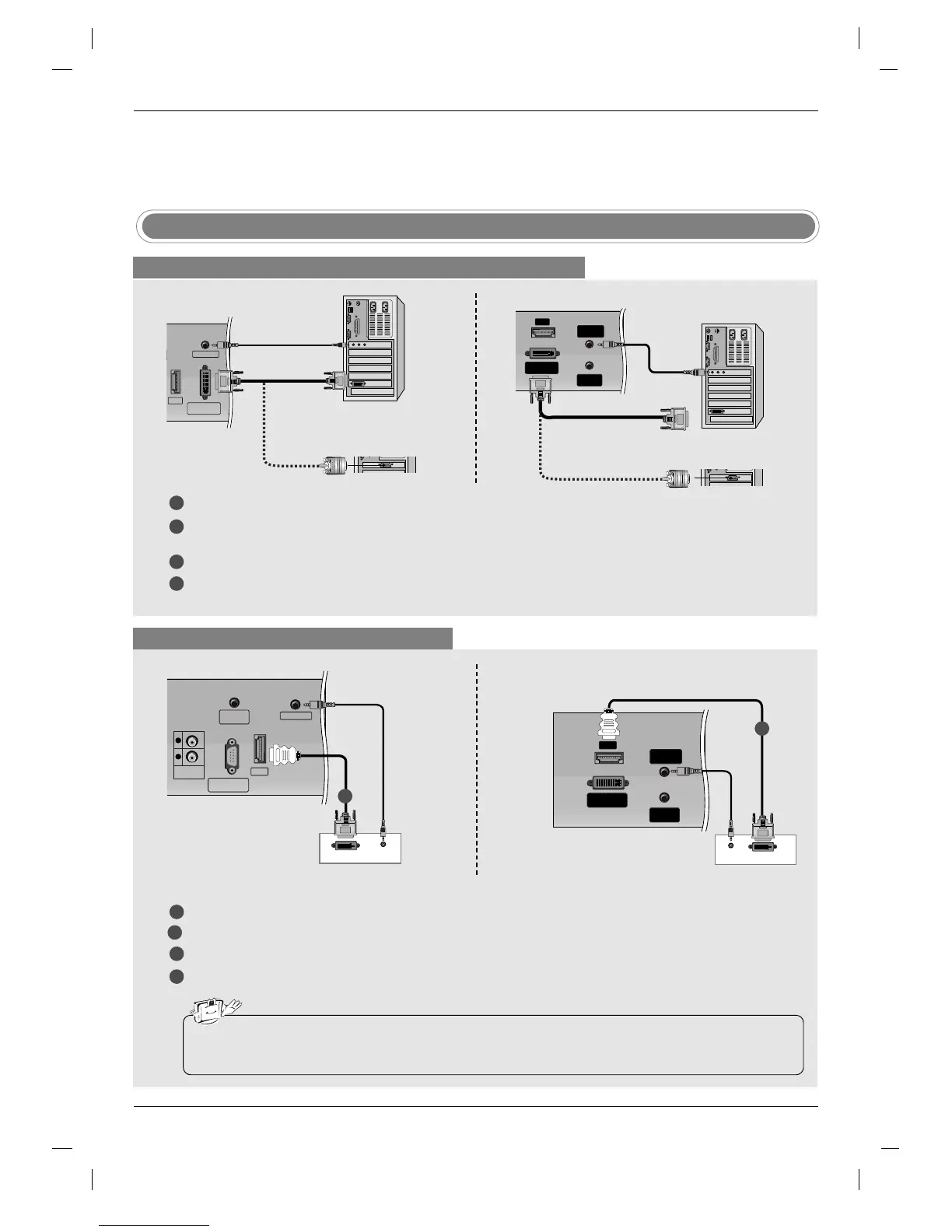

External Equipment Connections
External Equipment Connections
Installation
Installation
Connect the DVI output of the PC to the HDMI jack on the set.
Connect the PC audio output to the PC SOUND jack on the set.
Turn on the PC and the set.
Select
HDMI PC input source with using the INPUT button on the remote control.
PC Setup
1
2
3
4
Connect the TV to the PC with the PC cable.
Connect the PC audio output to the TV's PC SOUND
input.
Turn on the PC.
Select
DVI PC input source with using the INPUT button on
the remote control.
HDMI
PC SOUND
DVI INPUT
(PC/DTV INPUT)
NOTE
Connect the signal cable (DVI-D cable, Not DVI to
D-Sub cable) from the DVI output socket of the PC
to the DVI input socket of the set when using a PC
with DVI output. In some video cards, DVI-Analog
output may not be supported.
When connecting with a HDMI to DVI cable
When connecting with a DVI-D cable or a DVI to D-Sub cable
1
2
3
4
DVI OUPUT AUDIO
HDMI
PC SOUND
RS-232C INPUT
(CONTROL/SERVICE)
REMOTE
CONTROL
VARIABLE
AUDIO OUT
R
L
1
PC
• If the PC has a DVI output and no HDMI output, a separated audio connection is necessary.
• It’s not available to connect with a HDMI to DVI cable to the DVI INPUT jack on the set.
PC
DVI OUPUTAUDIO
HDMI
PC
SOUND
REMOTE
CONTROL
DVI INPUT
(PC/DTV INPUT)
PC
HDMI
PC
SOUND
REMOTE
CONTROL
DVI INPUT
(PC/DTV INPUT)
PC
1
TV Back panel (32inch)
TV Back panel (26inch)
TV Back panel (32inch)
TV Back panel (26inch)
