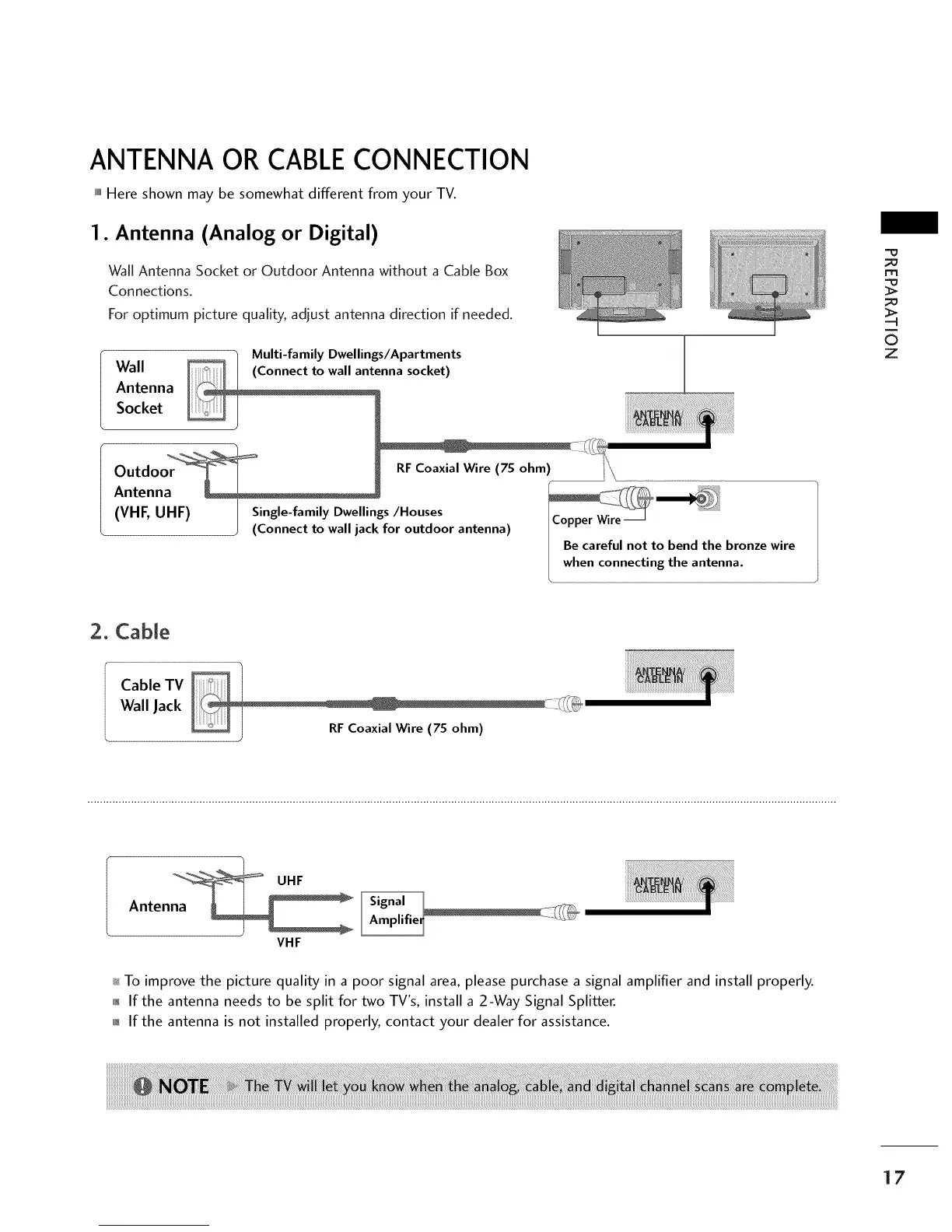

ANTENNA OR CABLECONNECTION
""_Here shown may be somewhat different from your TV.
1. Antenna (Analog or Digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box
Connections.
For optimum picture quality, adjust antenna direction if needed.
_ Multi-family Dwellings/Apartments
Wall nna socket)
Antenna
Socket
Outdo RF Coaxial Wire (75 ohm)
Antenn __/--
(VHF, UHF) I Single-family Dwellings/Houses _ot_-_] t ............................../ (Connect to wall jack for outdoor antenna) o bend the bronze wire
i when connecting the antenna.
m
©
z
2. Cable
Cable TV
Wall Jack
UHF
Antenna _
VHF
To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
01_If the antenna needs to be split for two TV's, install a 2-Way Signal Splitter.
01_If the antenna is not installed properly, contact your dealer for assistance.
17
