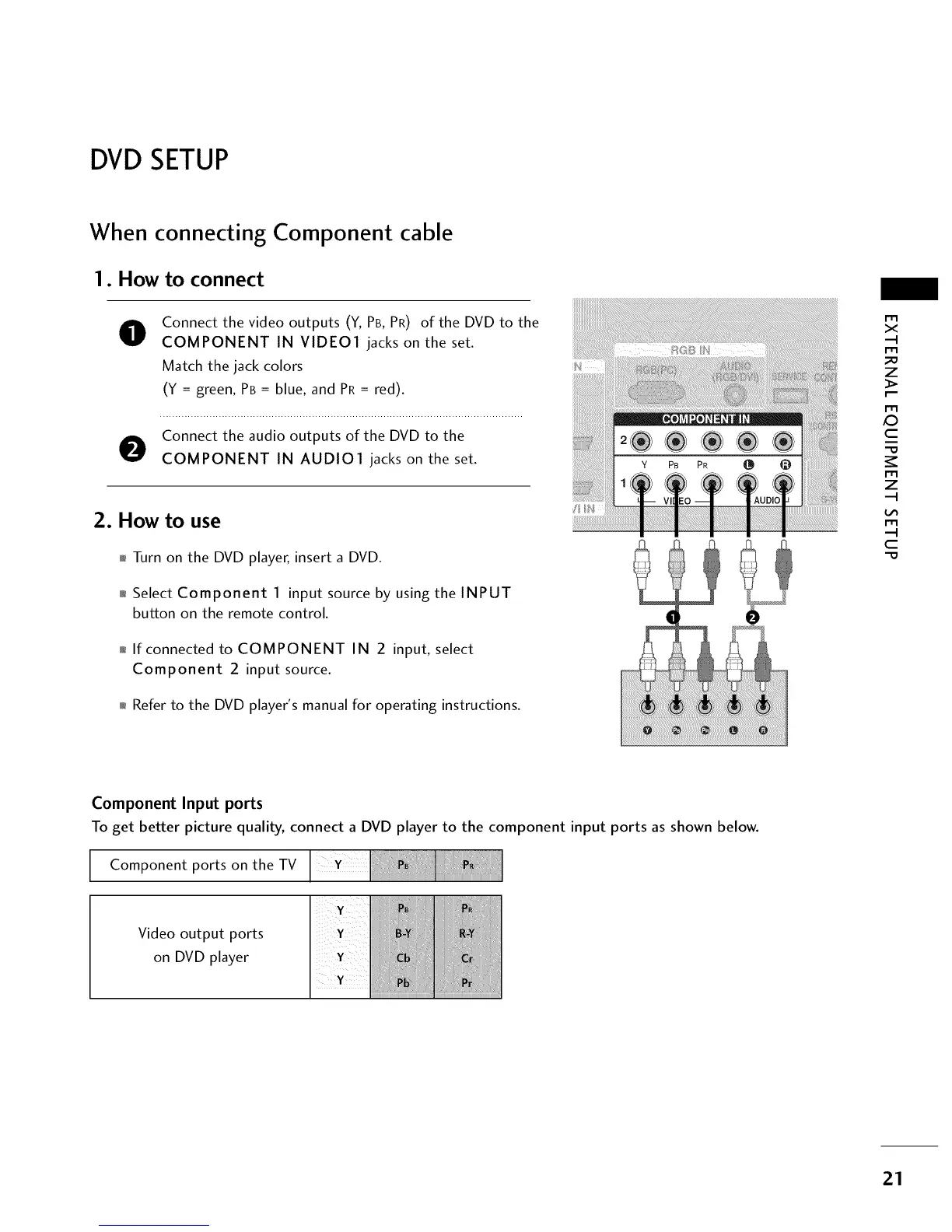

DVD SETUP
When connecting Component cable
1. How to connect
O
Connect the video outputs (Y, PB, PR) of the DVD to the
COMPONENT IN VIDE01 jacks on the set.
Match the jack colors
(Y = green, PB = blue, and PR = red).
O Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO1 jacks on the set.
2. How to use
01_Turn on the DVD player, insert a DVD.
01_Select Component 1 input source by using the INPUT
button on the remote control.
01_If connected to COMPONENT IN 2 input, select
Component 2 input source.
01_Refer to the DVD player's manual for operating instructions.
x
m
z
m
XD
c
m
z
m
c
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
Video output ports
on DVD player
21
