24 MAKING CONNECTIONS
ENGLISH

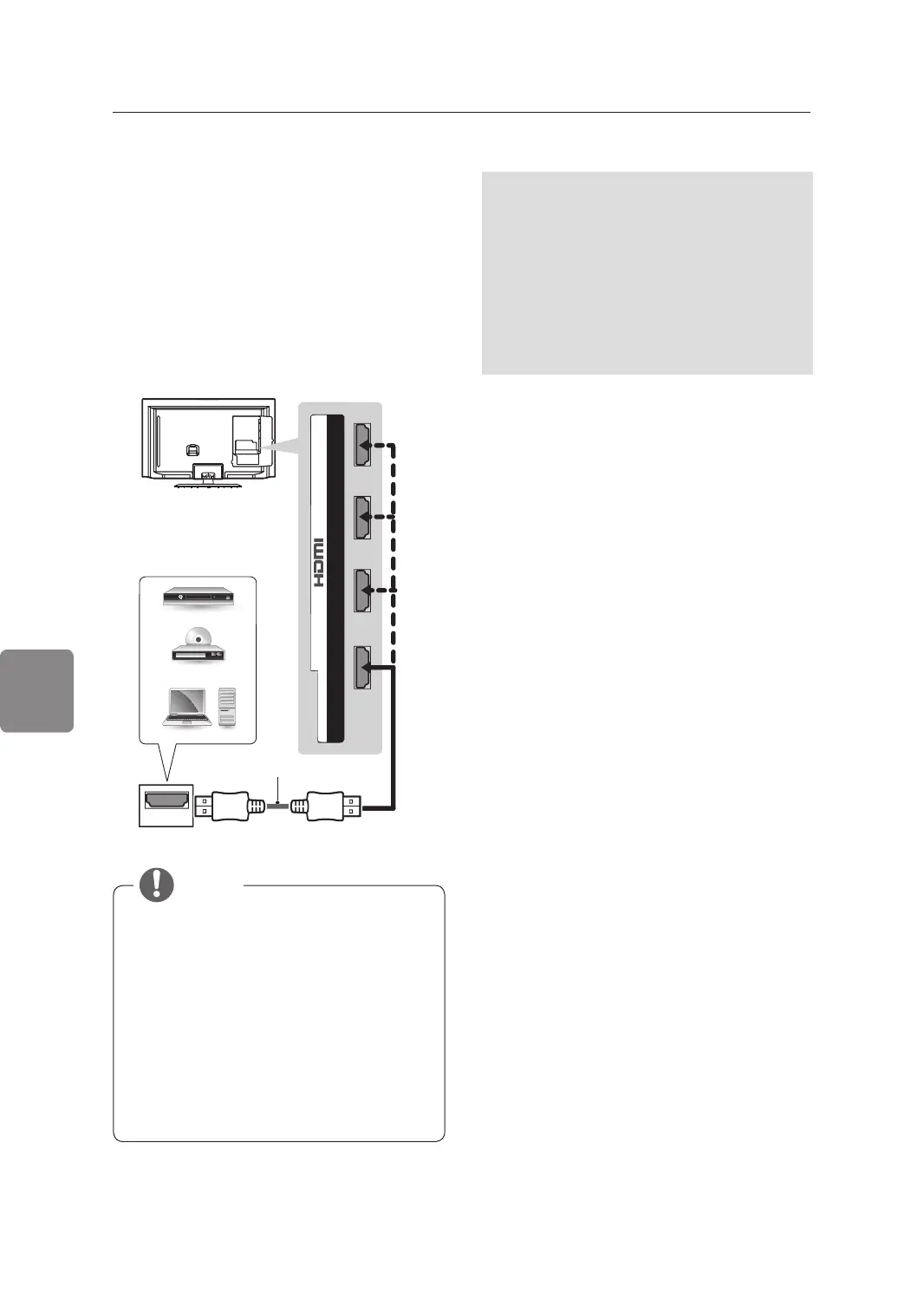

HDMI connection
Transmits the digital video and audio signals
from an external device to the TV. Connect
the external device and the TV with the HDMI
cable as shown in the following illustration.
Choose any HDMI input port to connect. It
does not matter which port you use.
•
•
ARC (Audio Return Channel)
An external audio device that supports
SIMPLINK and ARC must be connected
using HDMI input 1 (ARC) port.
When connected with a high-speed HDMI
cable, the external audio device that
supports ARC outputs optical SPDIF without
additional optical audio cable and supports
the SIMPLINK function.
•
•
•
•
•
NOTE
It is recommended to use the TV with the
HDMI connection for the best image quality.
Use the latest High Speed HDMI ™ Cable
with CEC (Customer Electronics Control)
function.
High Speed HDMI ™ Cables are tested to
carry an HD signal up to 1080p and higher.
Supported DTV Audio: MPEG, Dolby Digital.
Supported HDMI Audio format : DolbyDigital,
PCM (Up to 192 KHz, 32k/44.1k/48k/88k/
96k/176k/192k, DTS Not supported.)
2 3 1
(ARC)
4
(PC)
IN
HDMI
DVD/ Blu-Ray / HD Cable
Box / HD STB / PC
(*Not Provided)
To Next Page
