Audio connection
You may use an optional external audio system
instead of the built-in speaker.
USB connection
Connect a USB storage device such as a USB
memory card reader to the TV and access the
Smart Share menu to use various multimedia
les.
•
NOTE
If you use an optional external audio device
instead of the built-in speaker, set the TV
speaker feature to off.

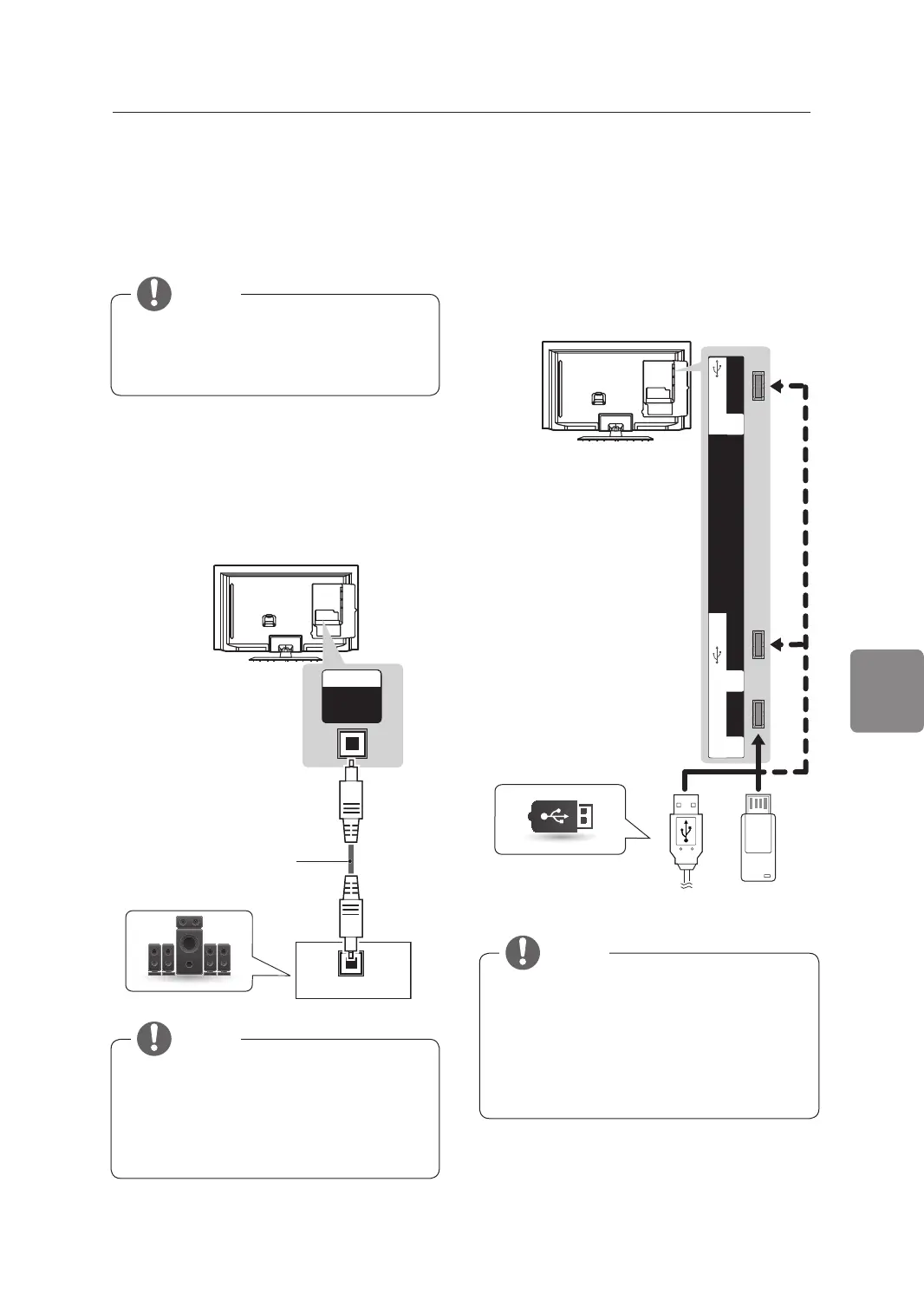

Digital optical audio connection
Transmits a digital audio signal from the TV to
an external device. Connect the external device
and the TV with the optical audio cable as
shown in the following illustration.
•
•
NOTE
Do not look into the optical output port.
Looking at the laser beam may damage
your vision.
Audio with ACP (Audio Copy Protection)
function may block digital audio output.
•
•
•
NOTE
To use a USB Hub device, make sure that it
is connected to the USB IN 2 USB Hub port.
To store apps on a USB storage device,
make sure that it is connected to the USB
IN 3 USB Apps port.
Connect the external power source if your
USB is needed.
OPTICAL
AUDIO IN
OUT
OPTICAL
DIGITAL
AUDIO
HDD IN
USB Hub
USB Apps
USB IN USB IN
321
(*Not Provided)
Digital Audio System
USB device
(*Not Provided)
