26 MAKING CONNECTIONS
ENGLISH
VIDEO
AUDIO
L R
IN
COMPONENT
AV
P
R
P
B
Y
VIDEO
AUDIO
WHITE WHITE
WHITE

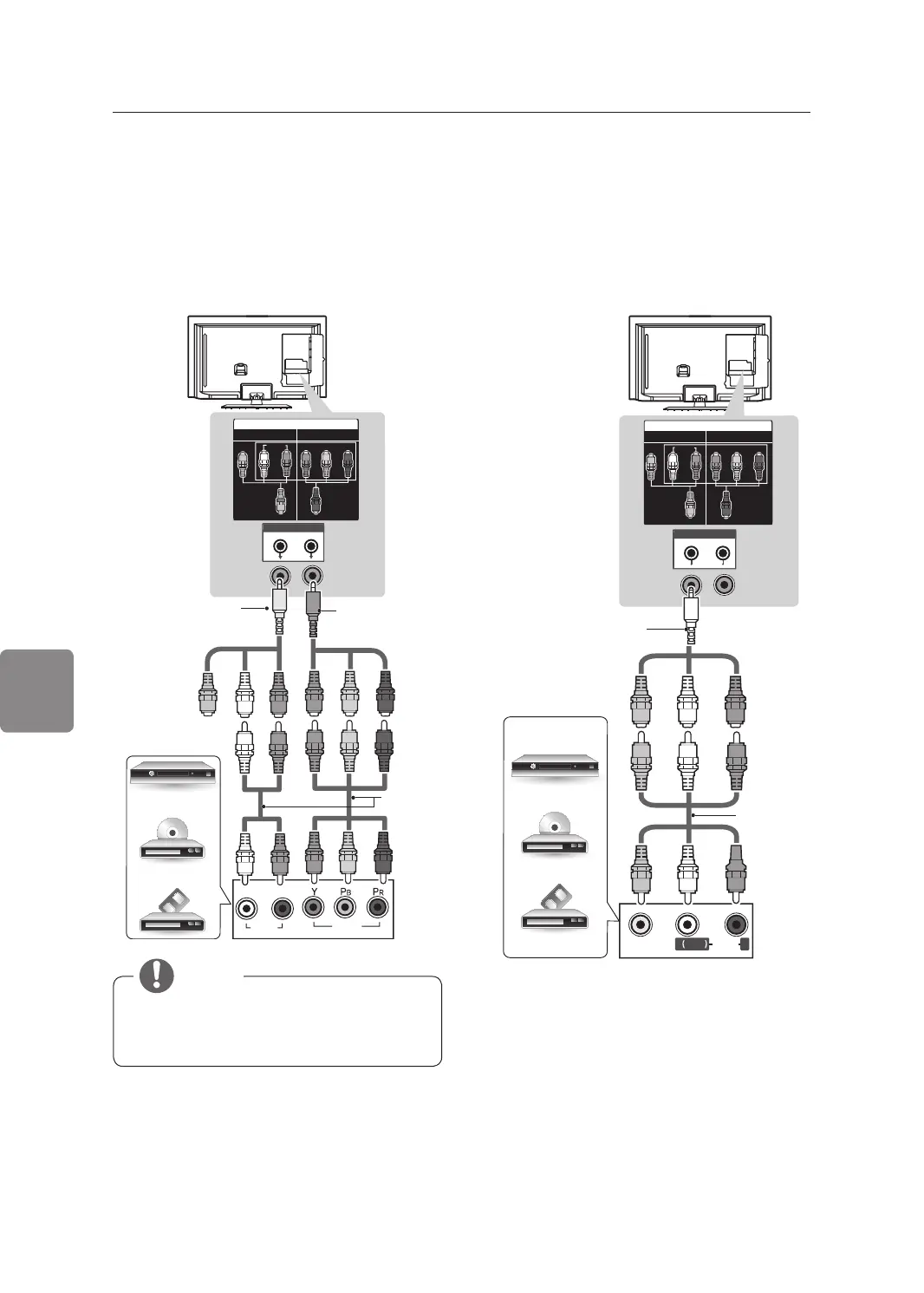

Component connection
Transmits the analog video and audio signals
from an external device to the TV. Connect the
external device and the TV with a component
cable as shown in the following illustration.
Composite connection
Transmits analog video and audio signals
from an external device to the TV. Connect the
external device and the TV with th e composite
cable as shown in the following illustration.
•
NOTE
If cables are installed incorrectly, it could
case the image to display in black and
white or with distorted color.
VIDEO
MONO
( )
AUDIOL R
IN
COMPONENT
AV
P
B
P
R
Y
VIDEO
AUDIO
VCR / DVD / Blu-Ray /
HD Cable Box
VCR / DVD / Blu-Ray
/ HD Cable Box
(Use the composite
video cable provided.)
(Use the component
video cable provided.)
(*Not Provided)
(*Not
Provided)
(Use the composite
video cable provided.)
YELLOW
RED RED
RED
YELLOW YELLOW RED
RED
WHITE
WHITE
YELLOW RED WHITE
RED
RED RED
BLUE BLUE
BLUE
GREEN
GREEN GREEN
YELLOW
YELLOW
GREEN
