DDiiggiittaall SSeett--ttoopp BBooxx
GG
If the digital set-top box has a DVI output and no HDMI output, a separated audio connection
is necessary.
GG
If the digital set-top box supports Auto DVI function, the output resolution of the digital
set-top box will be automatically set to 1280x720p.
GG
If the digital set-top box does not support Auto DVI, you need to set the output resolution
appropriately. To get the best picture quality, adjust the output resolution of the digital set-top
box to 1280x720p.
1
1
2
2
Signal
480i/576i
480p/576p/720p/1080i
Component
Yes
Yes
RGB-DTV
No
Yes
HDMI1/DVI (DTV)
No
Yes
HDMI2 (DTV)
No
Yes

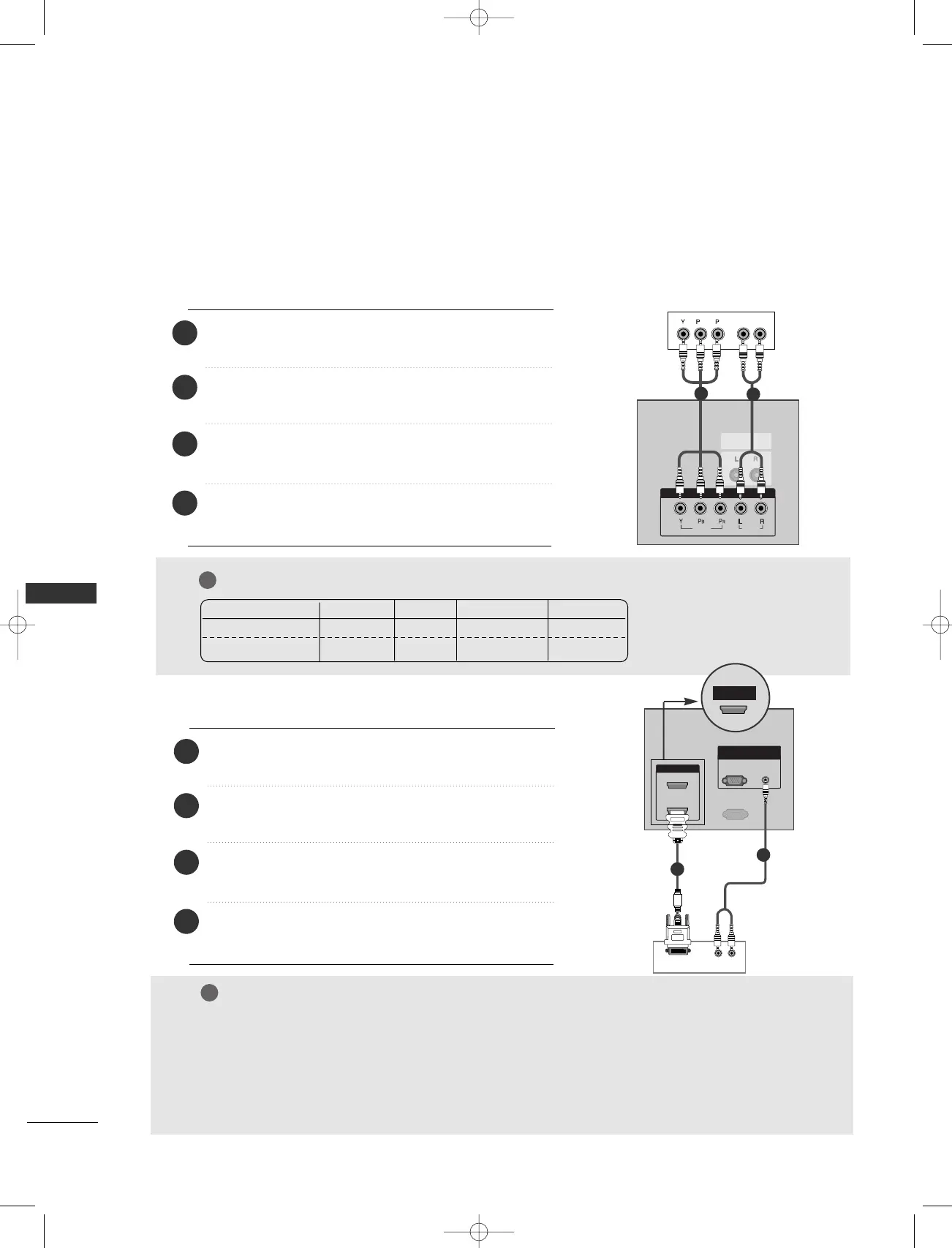

When connecting with a component cable
Connect the video outputs (Y, PB, PR) of the digital
set-top box to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
jacks on the set.
Connect the audio output of the digital set-top box to
the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO
jacks on the set.
Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
Select
CCoommppoonneenntt
input source with using the
IINNPPUUTT
button on the remote control.
1
2
3
4
When connecting with a HDMI to DVI cable
Connect the DVI output of the digital set-top box to the
HHDDMMII11((DDVVII))((
or
HHDDMMII//DDVVII)) IINN
jack on the set.
Connect the audio outputs of the set-top box to the
AAUUDDIIOO((RRGGBB//DDVVII))
jack on the set.
Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
Select
HHDDMMII11//DDVVII((
or
HHDDMMII//DDVVII))
input source
with using the
IINNPPUUTT
button on the remote control.
1
2
3
4
CONNECTIONS & SETUP
STB(SET-TOP BOX) SETUP
