EXTERNAL EQUIPMENT SETUP
22
EXTERNAL EQUIPMENT SETUP

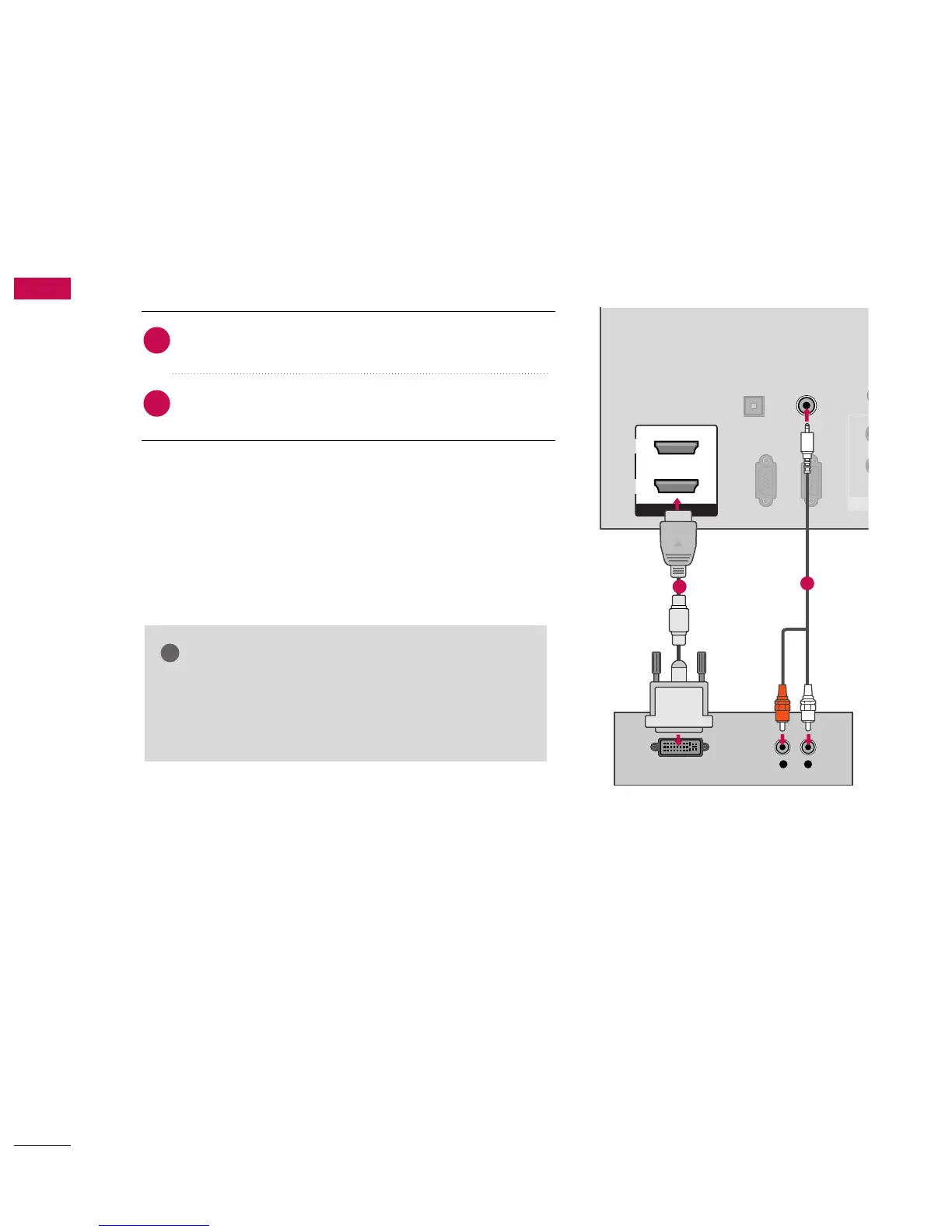

DVI to HDMI Connection
RGB IN (PC)
RS-232C IN
(CONTROL & SERVICE)
OPTICAL
DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
HDMI/DVI IN
2
1
LR
DVI-DTV OUTPUT
RE
CON
1
2
1
2
A DVI to HDMI cable or adapter is required for this
connection. DVI doesn't support audio, so a separate
audio connection is necessary.
NOTE
Connect the DVI output of the digital set-top box to the
or
jack on the TV.
Connect the audio output of the digital set-top box to
the
jack on the TV.
1. How to connect
2. How to use
■
Turn on the digital set-top box.
(
Refer to the owner’s man-
ual for the digital set-top box.
)
■
Select the
or
input source on the TV using the
button on the remote control.
2
1
