EXTERNAL EQUIPMENT SETUP
25

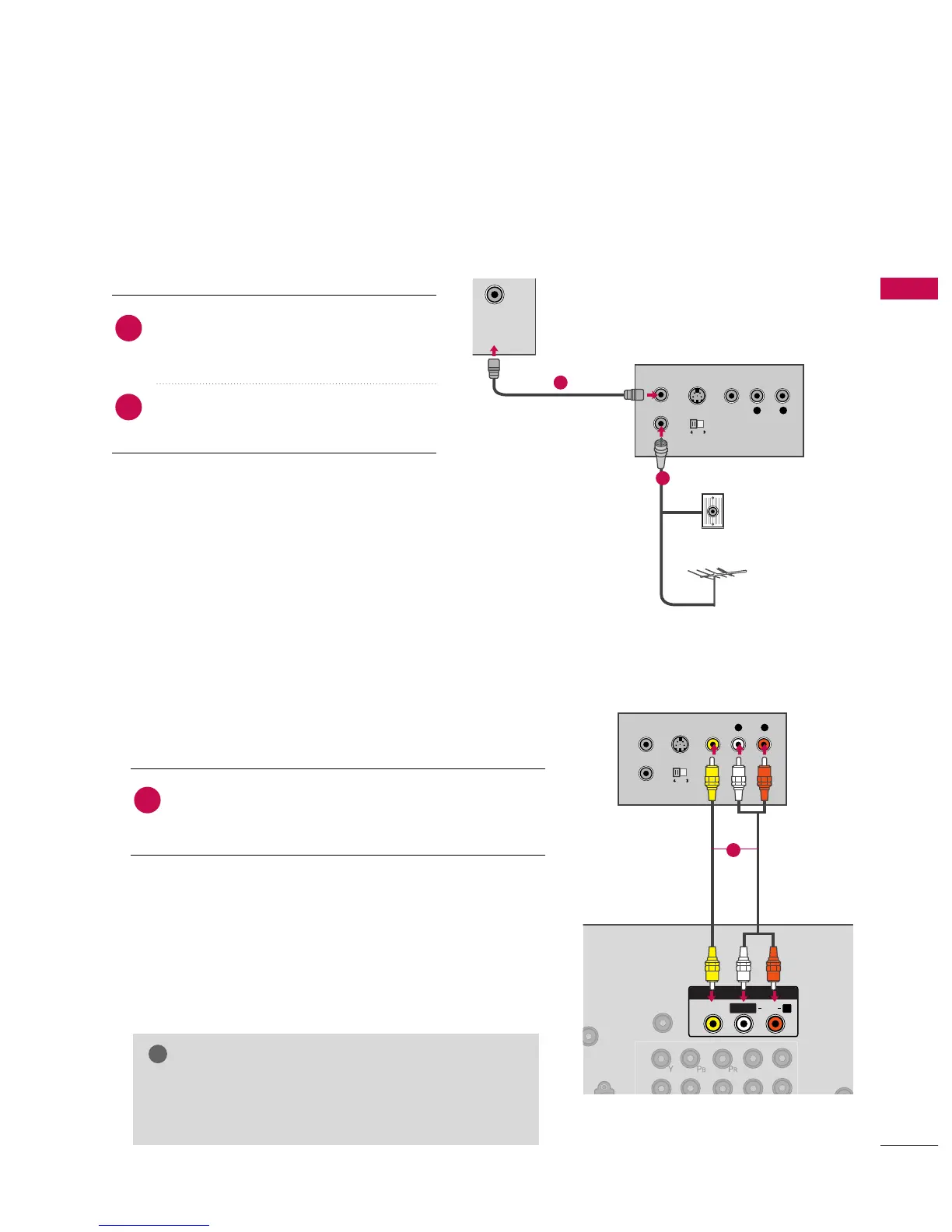

VCR SETUP
Antenna Connection
ANTENNA/
CABLE
IN
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
Wall Jack
Antenna
1
2
Connect the RF antenna out socket of the
VCR to the
ANTENNA/CABLE IN
socket
on the TV.
Connect the antenna cable to the RF
antenna in socket of the VCR.
1. How to connect
2. How to use
■
Set VCR output switch to 3 or 4 and then
tune TV to the same channel number.
■
Insert a video tape into the VCR and press
PLAY on the VCR.
(
Refer to the VCR owner’s
manual.
)
2
1
Composite (RCA) Connection
Connect the
AUDIO
/
VIDEO
jacks between TV and
VCR. Match the jack colors (Video = yellow, Audio Left
= white, and Audio Right = red)
1. How to connect
2. How to use
■
Insert a video tape into the VCR and press PLAY on the
VCR.
(
Refer to the VCR owner’s manual.
)
■
Select the
AV 1
input source on the TV using the
INPUT
button on the remote control.
■
If connected to
AV IN 2
, select
AV2
input source on the
TV.
1
G
If you have a mono VCR, connect the audio cable
from the VCR to the
AUDIO L/MONO
jack of the
TV.
NOTE
!
(PC)
UDIO
B/DVI)
REMOTE
CONTROL IN
1
2
AV IN 1
L
R
AUDIO
VIDEO
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
R
L/MONO
1
