EXTERNAL EQUIPMENT SETUP
27
AUDIO OUT CONNECTION
RGB(PC)
RS-232C IN
(CONTROL & SERVICE)
AUDIO
(RGB/DVI)
OPTICAL
DIGITAL
AUDIO OUT
HDMI/DVI IN
2
1
1
2
When connecting with external audio equipment, such as
amplifiers or speakers, you can turn the TV speakers off in
the menu. (
)
NOTE
G
Do not look into the optical output port. Looking at the laser beam may damage your vision.
Audio with ACP (Audio Copy Protection) function may block digital audio output.
CAUTION
Connect one end of the optical cable to the TV’s
port of
.
Connect the other end of the optical cable to the digital
audio input on the audio equipment.
Set the “TV Speaker option - Off” in the AUDIO menu. (
)
See the external audio equipment instruction manual for
operation.

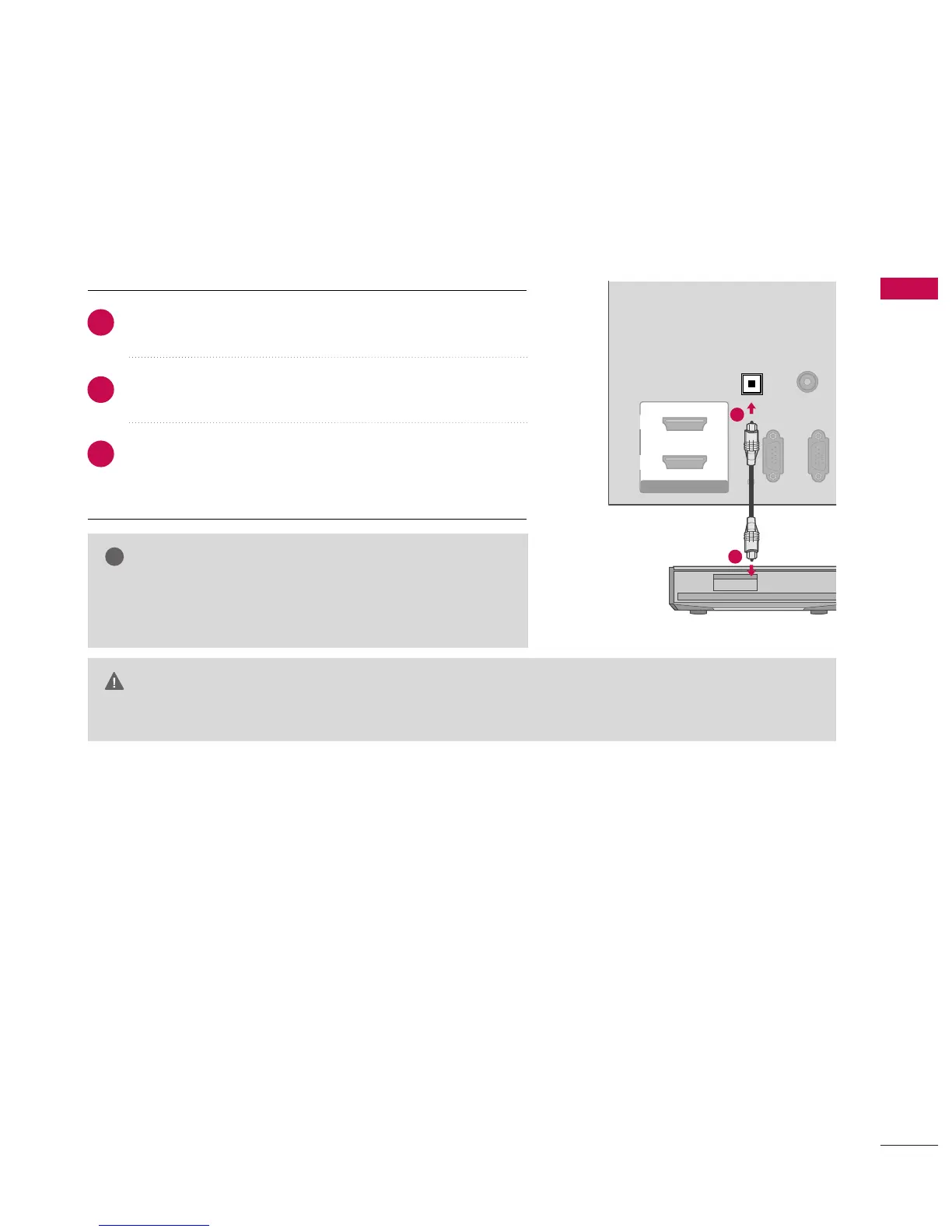

1. How to connect
2
3
1
Send the TV’s audio to external audio equipment via the Audio Output port.
