EXTERNAL EQUIPMENT SETUP
23
DVD SETUP
Component Connection
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
YPB PR
Video output ports
on DVD player
Y
Y
Y
Y
P
B
B-Y
Cb
Pb
P
R
R-Y
Cr
Pr

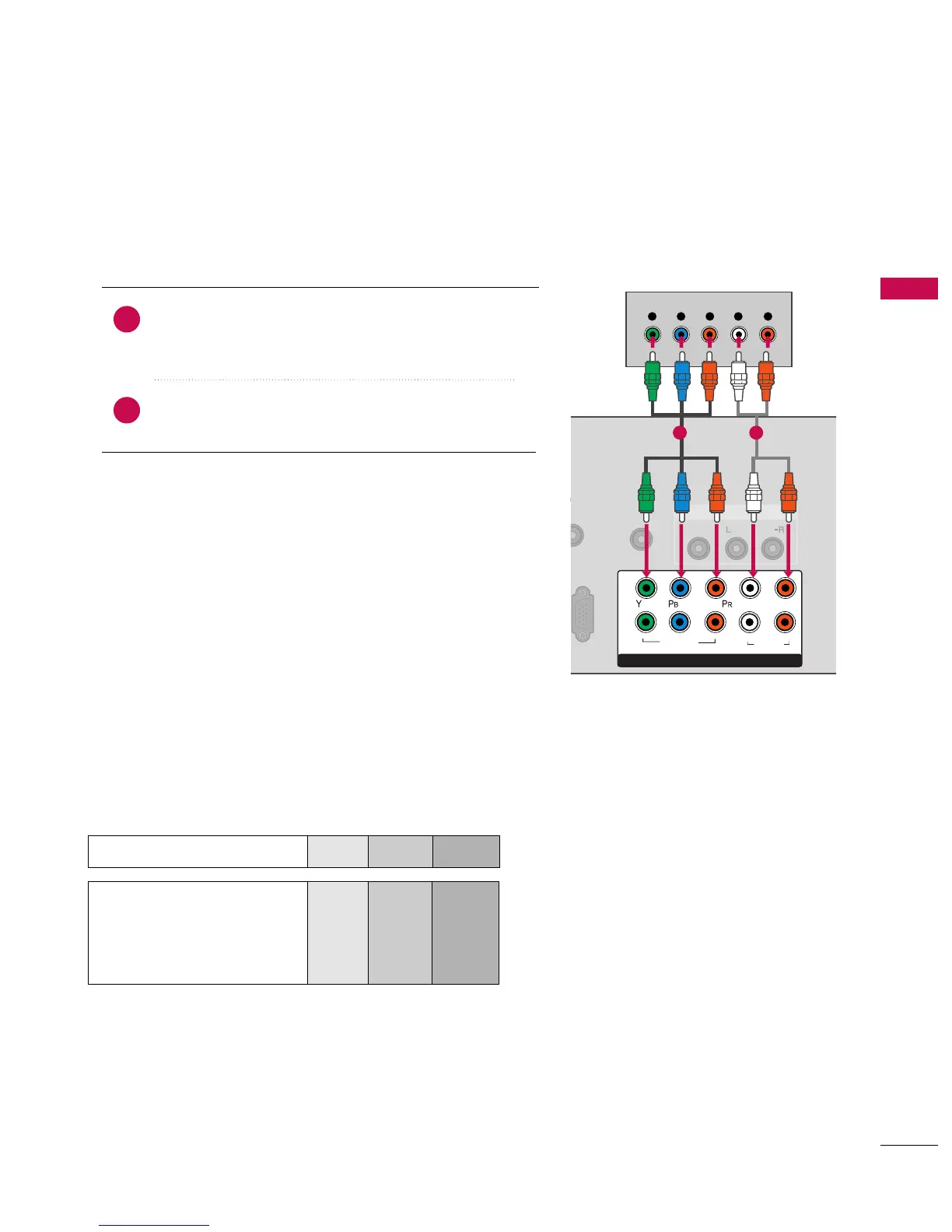

Connect the video outputs
(
Y, PB, PR
)
of the DVD to the
COMPONENT IN VIDEO 1
jacks on the TV.
Match the jack colors
(
Y = green, P
B = blue, and PR = red
)
.
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO 1
jacks on the TV.
1. How to connect
2. How to use
■
Turn on the DVD player, insert a DVD.
■
Select the
Component1
input source on the TV using
the
INPUT
button on the remote control.
■
If connected to
COMPONENT IN 2
input, select the
Component2
input source on the TV.
■
Refer to the DVD player's manual for operating instructions.
2
1
A
DIO IN
B/DVI)
REMOTE
CONTROL IN
AUDIO
VIDEO
/MONO
AV IN 1
COMPONENT IN
1
2
VIDEO
AUDIO
L
R
Y L RP B P R
1 2
