EXTERNAL EQUIPMENT SETUP
27
DVD SETUP
Component Connection
Component Input ports

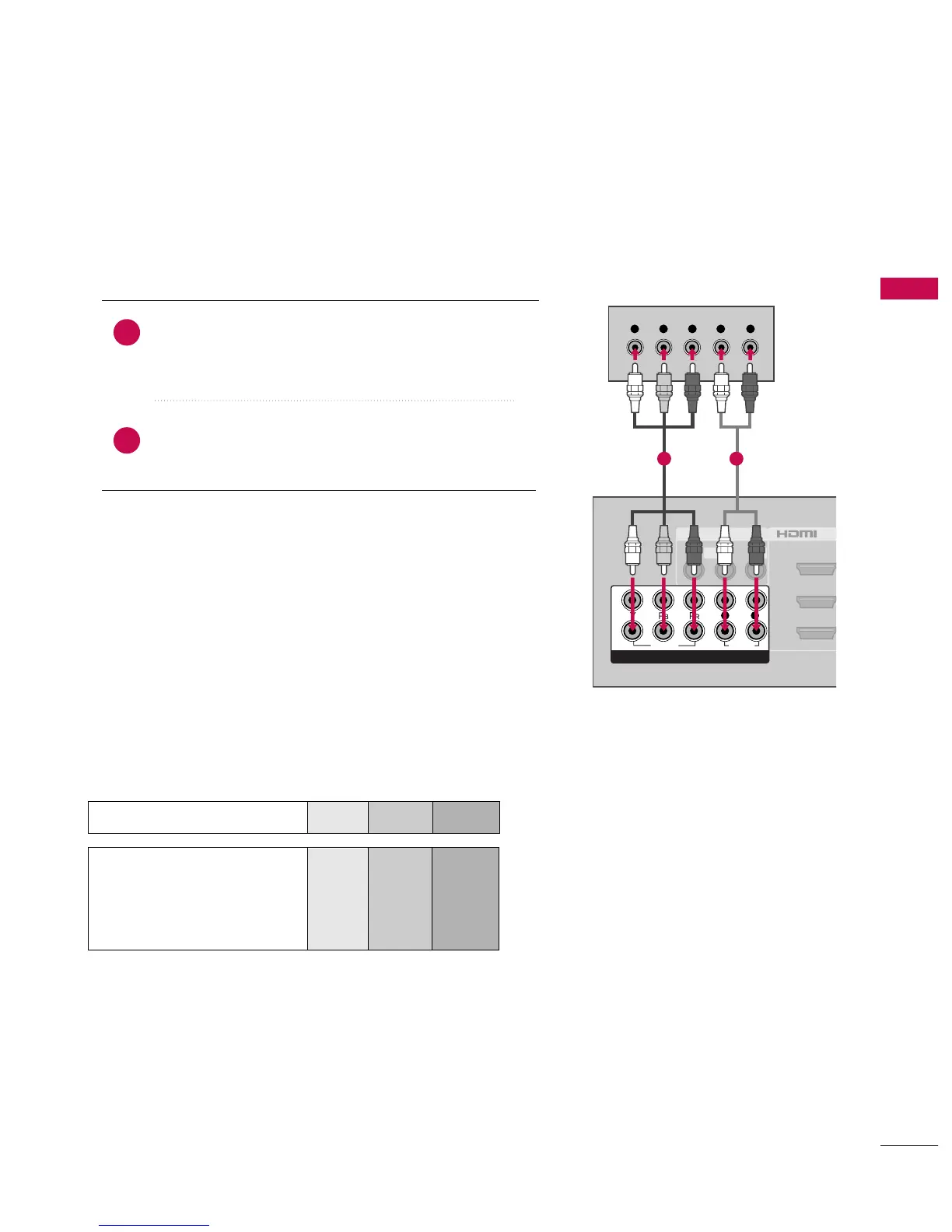

To get better picture quality, connect a DVD player to the
component input ports as shown below.
Component ports on the TV
YPB PR
Video output ports
on DVD player
Y
Y
Y
Y
PB
B-Y
Cb
Pb
P
R
R-Y
Cr
Pr
Connect the video outputs
(
Y, PB, PR
)
of the DVD to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO 11
or
22
jacks on the TV.
Match the jack colors
(
Y = green, PB = blue, and PR = red
)
.
Connect the audio outputs of the DVD to the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO 11
or
22
jacks on the TV.
1. How to connect
2. How to use
■
Turn on the DVD player, insert a DVD.
■
Select the
CCoommppoonneenntt11
or
22
input source on the TV
using the
IINNPPUUTT
button on the remote control.
■
Refer to the DVD player's manual for operating instructions.
2
1
AV IN 1
2
3
1
MONO
( )
AUDIOVIDEO L R
/DVI
VIDEO
AUDIO
L R
COMPONENT IN
2
1
Y L RPB PR
1 2
