PREPARATION
y
The Shortest Distance/Longest Distance is adjusted by rotating the zoom ring using
the zoom function.
y
The projection distance for each screen size is just a reference, and there is about
±5 % deviation.

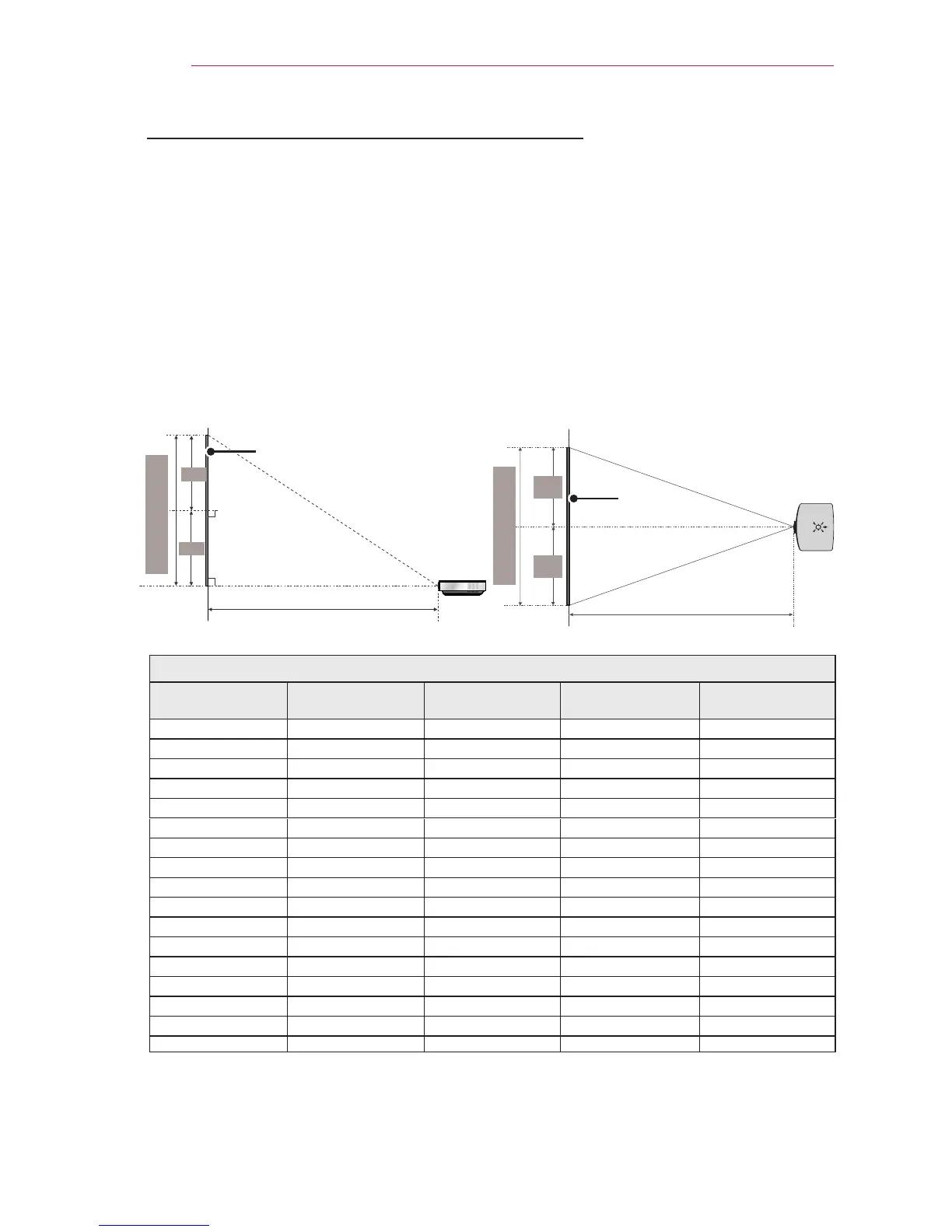

Projection Distance per Screen Size
1 Place the projector on a sturdy, level surface, together with the computer or audio/
video source.
2 Place the projector at an appropriate distance from the screen. The distance be-
tween the projector and the screen determines the actual size of the image.
3 Position the projector so that the lens is perpendicular to the screen. If the lens is not
perpendicular to the screen, the projected image will look distorted. To correct the
distortion, use the Keystone function. (See 25 page)
4 Connect the power cords of the projector and connected devices to the wall outlet.
Ratio of upward projection: 100 %
Screen Height (X)
X/2
X/2
Screen Width (Y)
Y/2
Y/2
DISPLAY
Projection Distance (D) Projection Distance (D)
DISPLAY
4:3 aspect ratio
Screen Size (mm)
Screen Width (Y)
(mm)
Screen Height (X)
(mm)
Shortest Distance (D)
(mm)
Longest Distance (D)
(mm)
1016 813 610 1000 1198
1270 1016 762 1250 1497
1524 1219 914 1500 1796
1778 1422 1067 1750 2095
2032 1626 1219 2000 2395
2286 1829 1372 2250 2694
2540 2032 1524 2500 2994
3048 2438 1829 3000 3593
3556 2845 2134 3500 4192
4064 3251 2438 4000 4791
4572 3658 2743 4500 5390
5080 4064 3048 5000 5989
5588 4470 3353 5500 6588
6096 4877 3658 6000 7187
6604 5283 3962 6500 7486
7112 5690 4267 7000 7786
7620 6096 4572 7500 8684
