AIR DUCT
ROLLERS

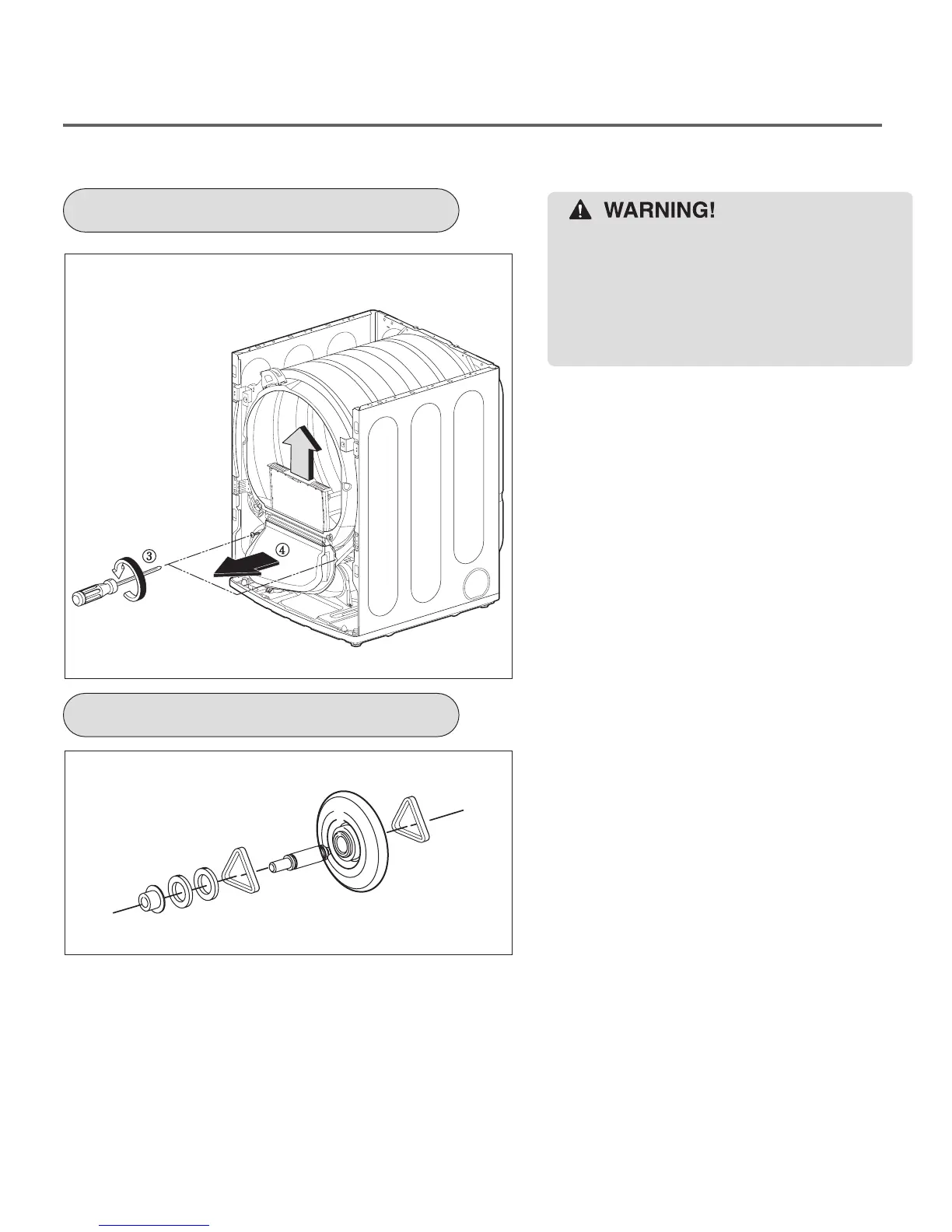

1.
Disassemble the top plate.
2.
Remove the cabinet cover and tub drum
[Front ].
3.
Remove the drum assembly and tub drum [Rear].
4.
Disconnect the air duct from the tub drum [Front ].
5.
Remove the roller from the tub drum [Front ] and
tub drum [Rear ].
When you disassemble the Dryer, be sure to
disconnect the dryer from its electrical supply.
Protect your hands and arms from sharp edges
when working. To reduce the risk of personal
injury, adhere to all industry recommended
safety procedures including the use of long
sleeved gloves and safety glasses.
1.
Disassemble the top plate.
2.
Remove the cabinet cover .
3.
Remove the filter and 2 screws.
4.
Remove the air duct.
