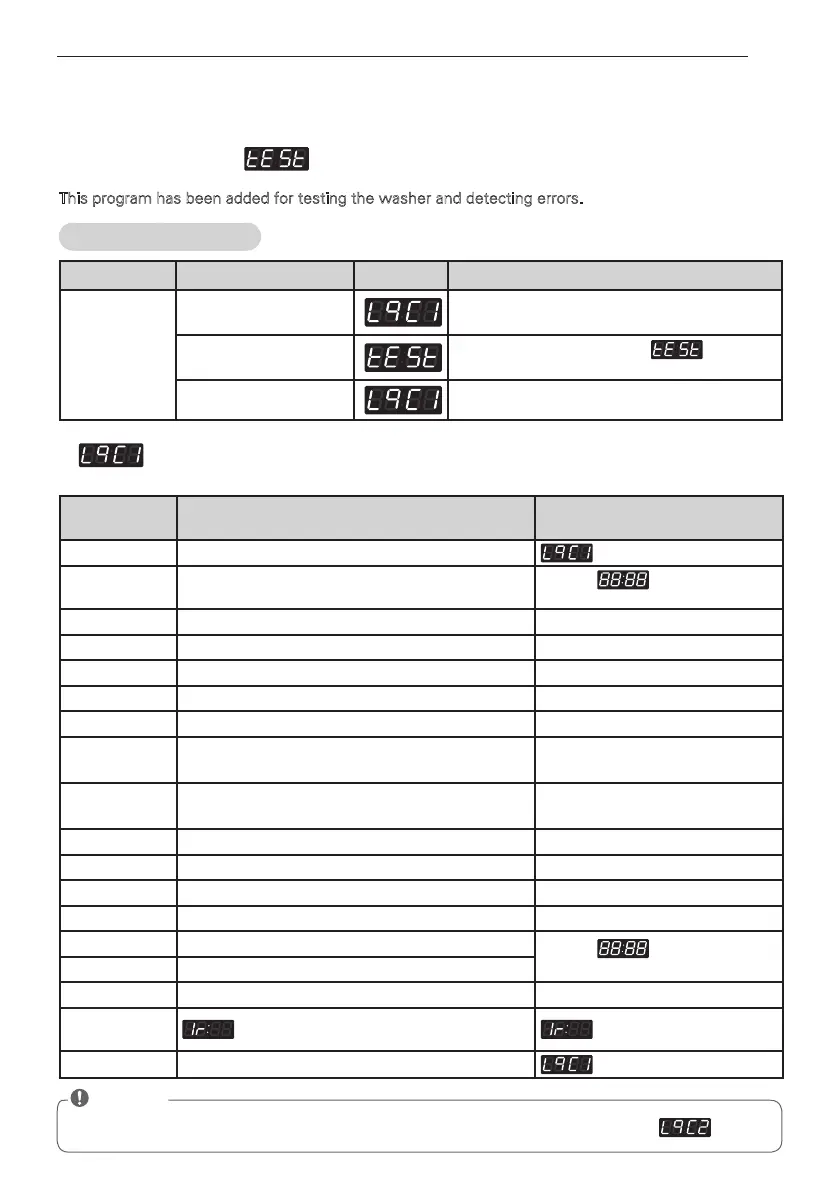

PROGRAMMING MODE - TEST MODE
PROGRAMMING MODE -
TEST MODE
Diagnostic tests: (display)
This program has been added for testing the washer and detecting errors.
1.
According to pressing Start button, test move to the next step.
Entering the test mode
Data Name Button Display Description
Entering
the test mode
1. Entering
programming mode
Insert service card (card type)
Turn on/off toggle switch (coin type)
2. Hot
Press the Hot button. Then appears
in the display.
3. Start
Enter the diagnostic test mode.
Number of times the
START button is pressed
Check Point Display
None
1 time
Turns on all lamps and locks the door
Displays
, 1U:XX, 1g:XX and
10:XX alternately (Version)
2 times
Tumble Clockwise. rpm (40~50)
3 times
Low Speed Spin rpm (600)
4 times
High Speed Spin rpm (1150)
5 times
Inlet valve for main water turns on. Water level frequency (255~)
6 times
Inlet valve for hot wash turns on. Water level frequency (255~)
7 times
Inlet valve for atomizing turns on (single model).
Inlet valve for softener turns on (stack model).
Water level frequency (255~)
8 times
Inlet valve for bleach turns on (single model).
Inlet valve for atomizing/bleach turns on (stack model).
Water level frequency (255~)
9 times
Tumble counter clockwise. rpm (40~50)
10 times
Heater turns on. Displays water temperature
11 times
Turn on Circulation Pump. Water level frequency (255~)
12 times
Drain Pump turns on. Water level frequency (255~)
13 times
Turns on all lamps.
Displays
, 1U:XX, 1g:XX and
10:XX alternately (Version)”
14 times
Button Checks.
15 times
High Speed Spin rpm (1150)
16 times
PDA Signal Check
this function is not applied in
this machine
17 times
NOTE
• Make sure the drum is empty when a diagnostic test is performed. Do not use
.
