- 32 -

Only for training and service purposes

3. Technical brief

GD510 Operational Description Revision A

LG Electronics 32/113 LGE Property

3.5. SIM & uSD interface

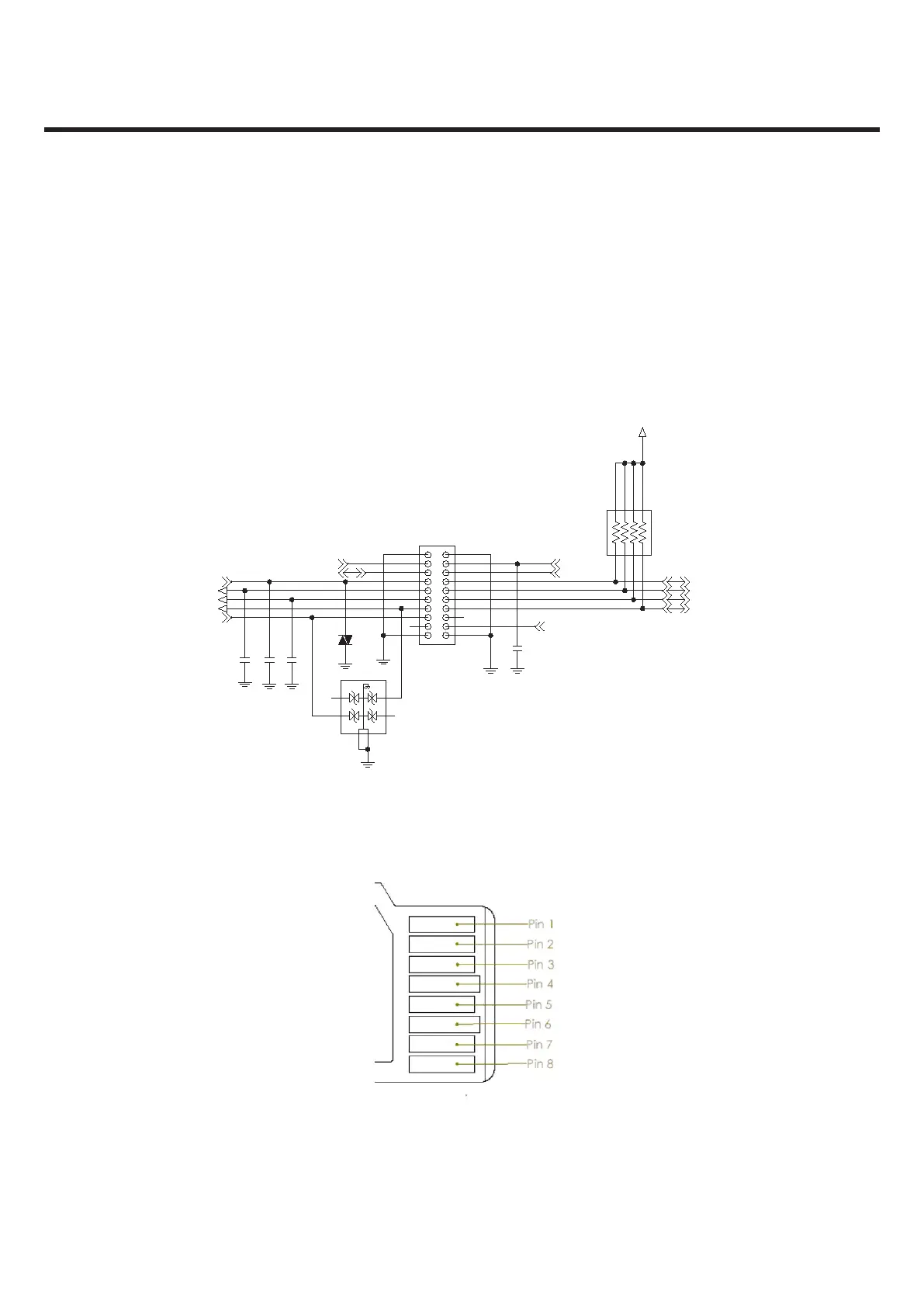

GD510 supports 1.8V & 2.9V plug in SIM, SIM interface scheme is shown in (Figure 8).

SIM_IO, SIM_CLK, SIM_RST ports are used to communicate with BBP(S-Gold3) and the SIM power

supply enabled by PMIC.

SIM Interface

SIM_CLK : SIM card reference clock

SIM_RST : SIM card Async /sync reset

SIM_IO : SIM card bidirectional reset

Figure 8

SIM & Micro SD Circuit

The MicroSD Memory Module has eight exposed contacts on one side. The S-Gold3 is connected to the

module using a dedicated eight-pin connector

Micro SD Memory Card Detection Scheme

EVLC18S02003

C521

EVSC5S04F050VA501

51 P1 P5

P2 P4

SOL_VBAT

GB042-20S-H10-E3000

CN501

1110

129

138

147

156

165

174

183

192

201

VMME_2V9

VSIM_2V9

VMME_2V9

5AR

100Kohms

C515

27pF 1uF

C516

C518

27pF

C519

1uF

MMC_DATA[0]

MMC_CMD

MMC_CLK

MMC_DET

SIM_RST

SIM_IO

SIM_CLK

MMC_DATA[1]

MMC_DATA[2]

MMC_DATA[3]

SOLBAT_DET

ENBY0039601

GB042-20S-H10-E3000

Main <-> SUB
