3. Technical brief

GD510 Operational Description Revision A

LG Electronics 51/113 LGE Property

3.22. Power Amplifier Module

The TQM7M5005H Power Amplifier Module(PAM) is designed in a compact from fact for quad-band

cellular handsets comprising GSM850/900,DCS1800,PCS1900,supporting GMSK and linear EDGE

modulation. Class12 General Packet Radio Service(GPRS) multi-slot operation is also supported.

The module consists of a GSM850/900 PA block and a DCS1800/PCS1900 PA block,impedance

matching circuitry for 50ohm input and output impedances, and a Multi-function Power Amplifier

Control(MFC) block. A custom CMOS integrated circuit provides the internal MFC function and interface

circuitry.

Two separate Heterojunction Bipolar Transistor(HBT) PA blocks are fabricated onto InGaP die; one

supports the GSM850/900 bands, the other supports the DCS1800 and PCS1900 bands. Both PA

blocks share common power supply pins to distribute current. The InGaP die, the silicon die, nad the

passive components are mounted on a multi layer laminate substrate. The assembly is encapsulated

with plastic overmold.

RF input and output ports are internally matched to 50ohm to reduce the number of external components

Extremely low leakage current(2.5uA) maximizes handset standby time. Band select(BS) circuitry select

GSM transmit frequency band(logic0) and DCS/PCS transmit frequency(logic1). MODE circuitry selects

GMSK modulation (logic0) or EDGE modulation(logic1). VRAMP controls the output power for GMSK

modulation and provides bias optimization for EDGE modulation depending on the state of MODE

control.

The integrated multi-function(MFC) provides envelope amplitude control in GMSK mode, reducing

sensitivity to input drive, temp, power supply, and process variation. In EDGE mode, the MFC configures

the PA for fixed gain, and provides the ability to optimize the PA bias operation at different power levels,

This circuitry regulates PA bias conditions, reducing sensitivity to temp., power supply, and process

variation. The Enable input signal(pin8) provides a standby state to minimize battery drain..

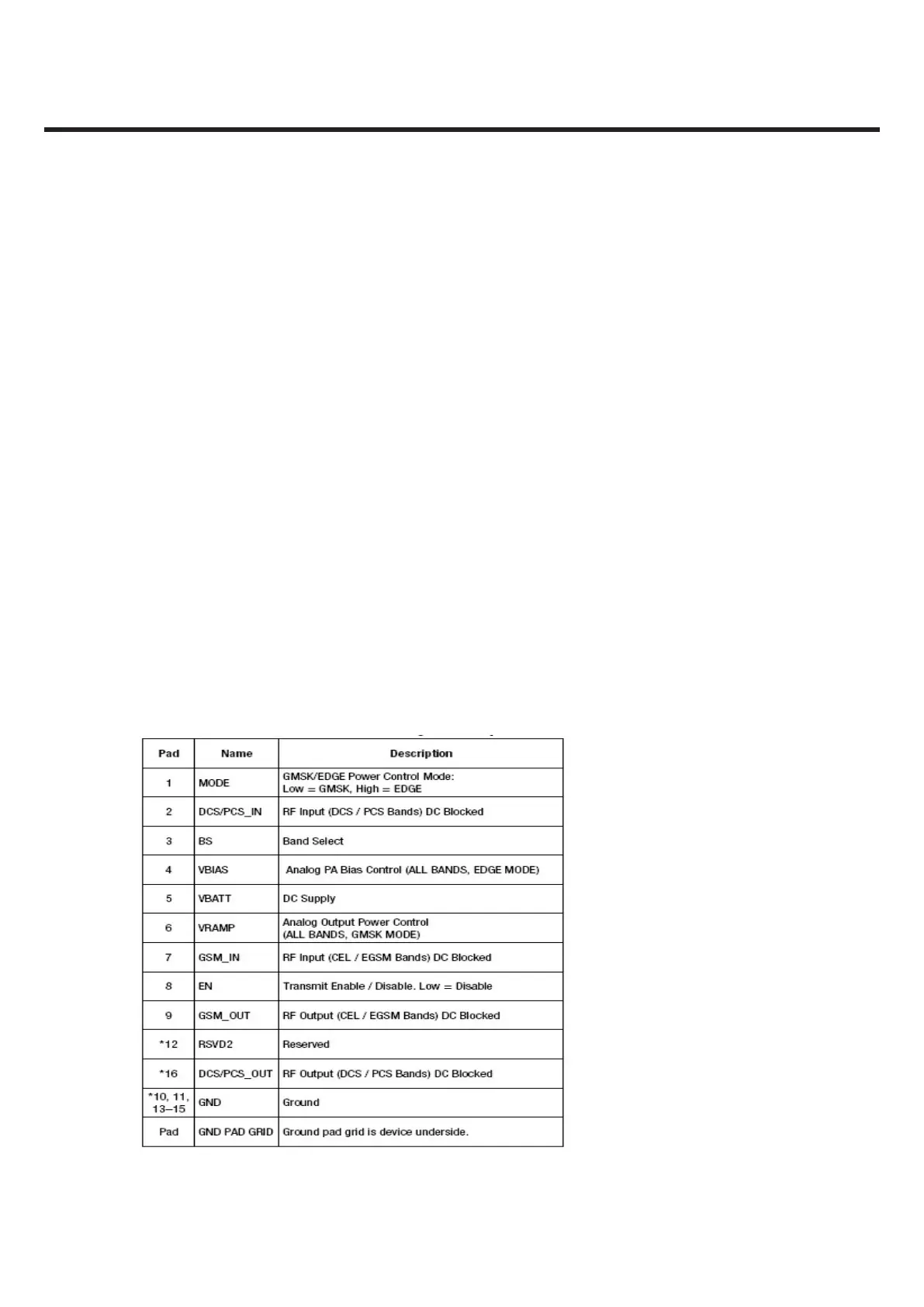

.Table 10 PAM pin description
