[Quality][Button/Switch] Part Replacement Guide on Knob Supporter(Active SVC Request)
Service Bulletin
Product : LG Gas/Elec. Oven
Bulletin # : CVZ201900039-02
Release Date : 2020.03.13
Applicable for Serial Number : 807KMxxxxx~902KMxxxxx
1. Repair Instruction
Applicable for models
(USA) Elec. : LSE4611ST, LSE4611BD, LSE4613ST, LSE4613BD, LSE4615ST, LSE4615BM, LSE4616ST, LSE4616BD, LSE4617ST,
LTE4815ST, LTE4815BM, LTE4815BD
Gas : LSD4913ST , LSG4511ST, LSG4511BD, LSG4513ST, LSG4513BD, LSG4515BM, LSG4515ST, LTG4715ST, LTG4715BM, LTG4715BD
(Canada) Elec : LSE4611BD, LSE4611ST, LSE4617ST, LSE5613BD, LSE5613BM, LSE5613ST, LSE5615ST, LTE4815ST
Gas : LSG4515BM, LSG5513BD, LSG5513ST
Bulletin Type : SVC Notice Parts Others Applicable only with symptoms with every repair


Symptoms Knob supporter is broken when mode is selected
Cause By any reason
1) Serial number range : 807KMxxxxx~902KMxxxxx
 Even if you visit a customer due to other failure,
the part must be replaced

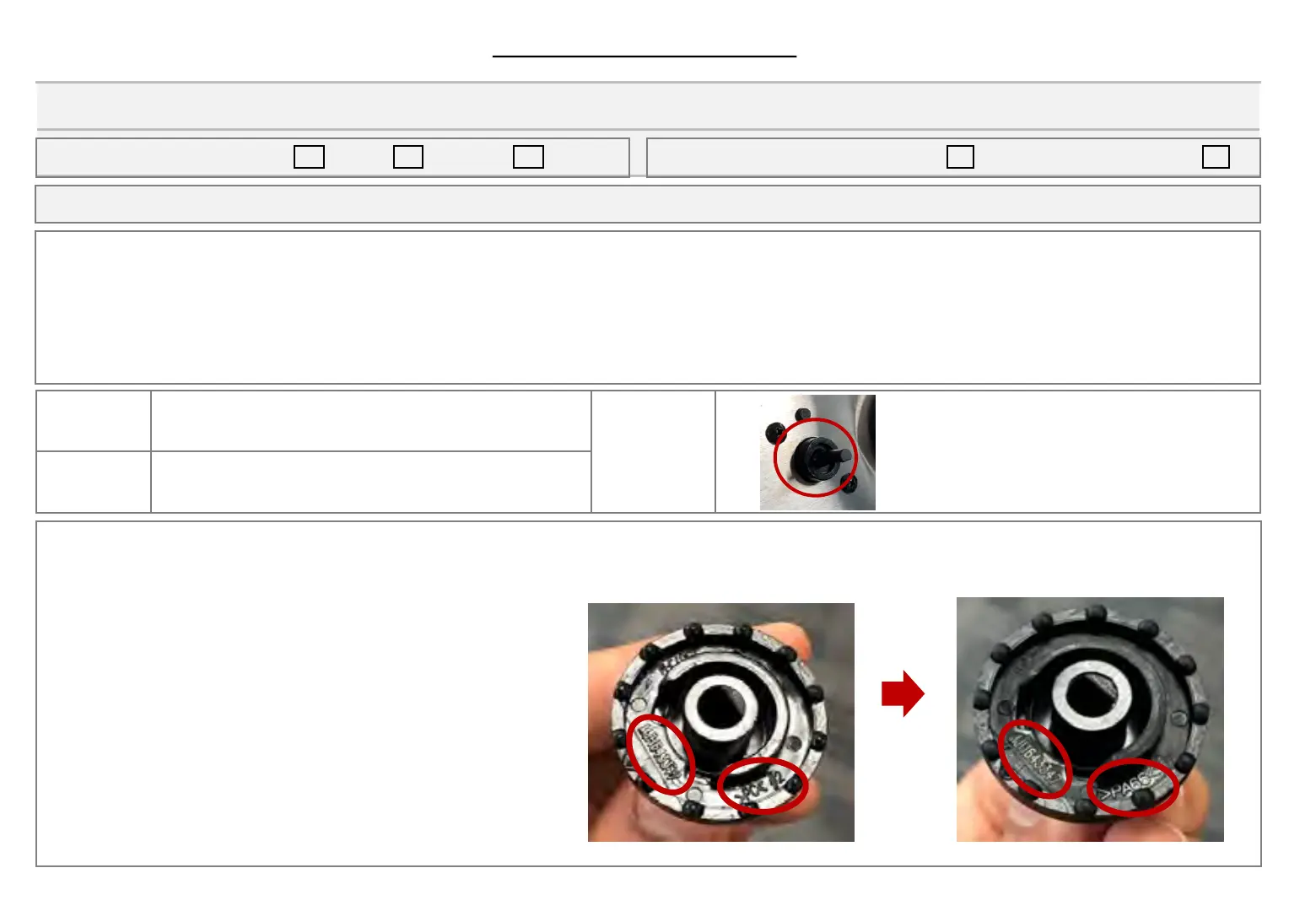

① Replace supporter to new supporter changed material : P/No. MJH64334701(No P/No. Change)
As Is To Be
Page 1
Material Property was changed(PC → PA66)
Same shape with gloss
Same shape without gloss
Please do not replace any PCB. All kinds of PCBs
don't need to be replaced in this symptom
