LG LMXS28596S Technical Manual

[Quailty Improvement] Majesty1,2,3 C-fan noise & error mode occur
Service Bulletin
Product : Ref
Bulletin # : CNZ201900274-01
Release Date : 2019.06.19
Applicable for Serial Number :Before~904KR* (before ~20190417)
1. Repair Instruction
Page 1
Applicable for models
LFCS27596S, LFXS26596D, LFXS26596S, LFXS26973D, LFXS26973S, LFXS28566D, LFXS28566M, LFXS28566S, LFXS28596D,
LFXS28596M, LFXS28596S, LFXS28968D, LFXS28968S, LMXS28596D, LMXS28596S, LMXS28626D, LMXS28626S
Bulletin Type: Quality Parts Others Applicable only with symptoms with every repair

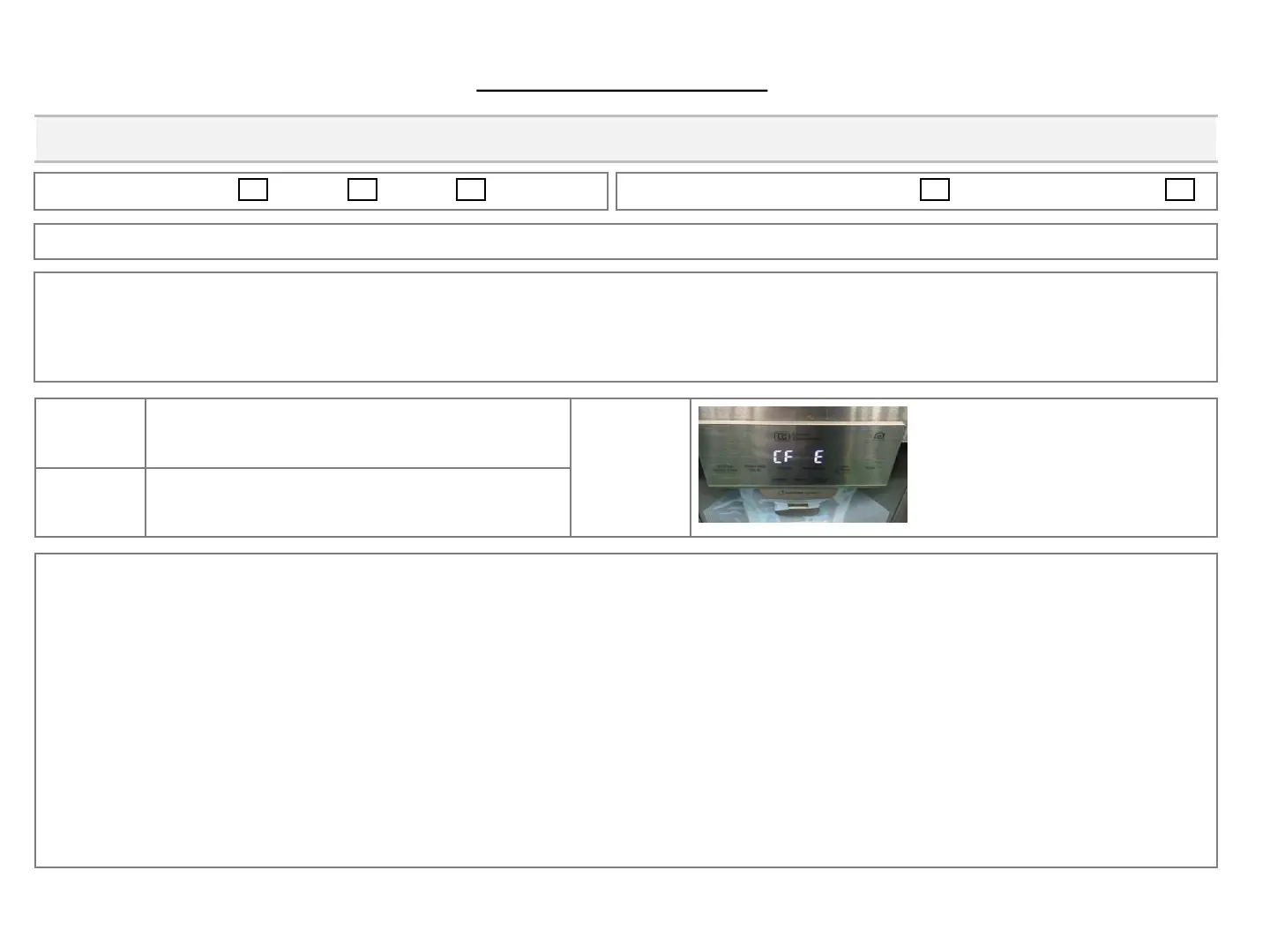

Symptoms
- Frictional noise from back of refrigerator
- CF E error code
Cause
C-fan interference with guide fan, and c-fan
Blocked by guide fan
The display panel shows CF E error code
 
1) Unplug unit and open cover m/c
2) Check Guide fan and Tray drip assembly
3) Make SVC action according to the process map.
If guide fan and fan motor part defect, part replacement is needed.

LG LMXS28596S Specifications

General

Type	freestanding
Style	french door; 4 door
Color	stainless steel
Total Capacity	27.6 cu. ft.
Refrigerator Capacity	18.4 cu. ft.
Freezer Capacity	yes; 9.2 cu. ft.
Humidity Controlled Crispers	2 humidity crispers
Defrost System	automatic
Cooling System	smart cooling plus™ system with door cooling+
Number of Refrigerator Shelves	4 (3-fixed, 1-fold)
Number of Refrigerator Door Bins	7
Number of Freezer Drawers	2-tier organization
Temperature Control	digital; yes
Temperature Sensor	6
Interior Light	ceiling led
Dispenser	external
Ice Maker	yes (dispenser)
Water Filter	lt1000p; yes
Door Alarm	yes
Smart Home	yes; smartthinq, google assistant, alexa
Remote Control	yes
Wi-Fi	yes
Annual Energy Consumption	760 kwh/year
Voltage	120 volts
Current	15

Weight and Dimensions

Depth	36 1/4 inch
Height	69 3/4 inch
Width	35 3/4 inch
Net Weight	322 lbs.
