EXTERNAL EQUIPMENT SETUP
DVD SETUP

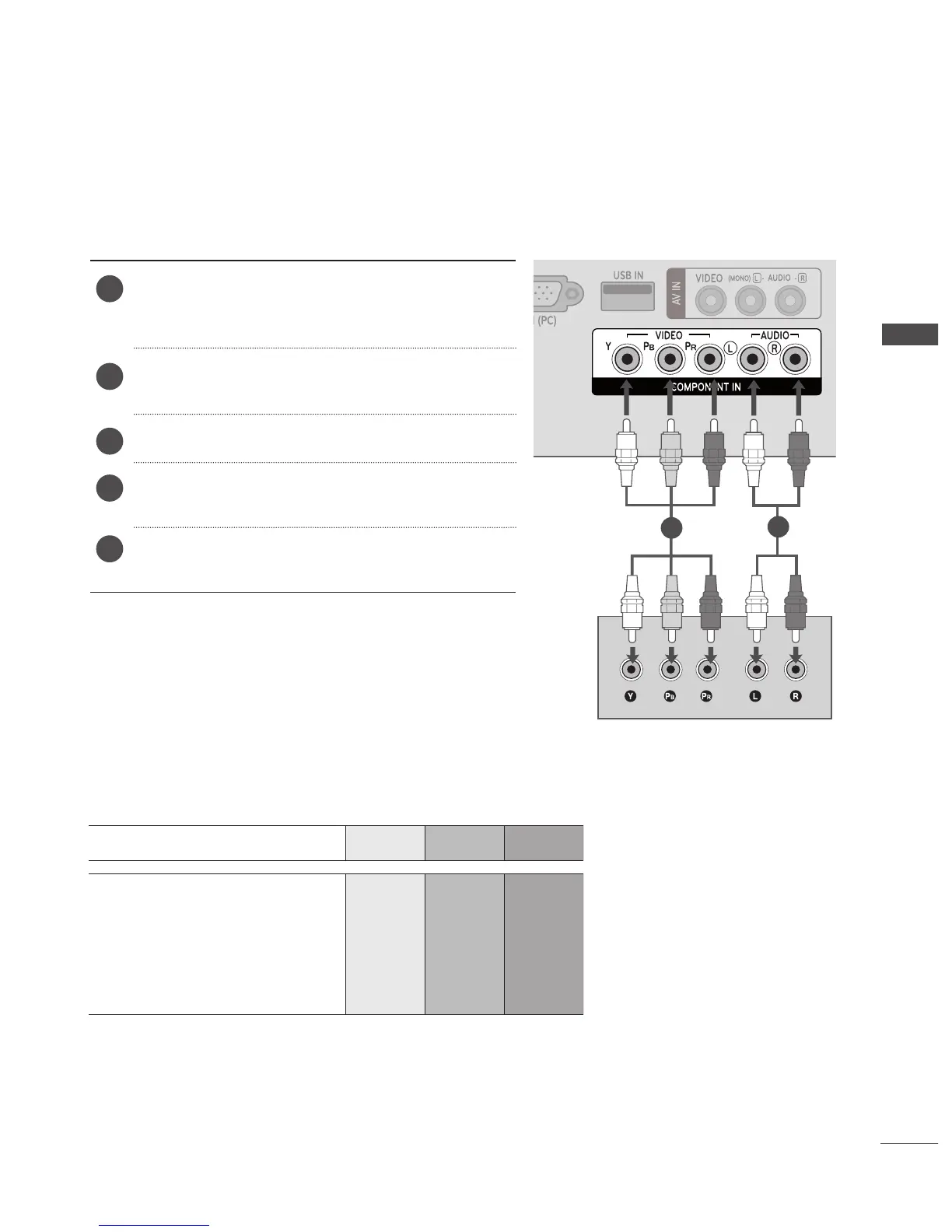

Connecting with a Component Cable
Connect the video outputs (Y, PB, PR) of the DVD
to the COMPONENT IN VIDEO jacks on the Monitor
set.
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO jacks on the Monitor set.
Turn on the DVD player, insert a DVD.
Select Component using the INPUT on the remote
control.
Refer to the DVD player's manual for operating
instructions.
1
2
3
4
5
Component Input Ports
For better picture quality, connect a DVD player to the component input ports as shown below.
Component Ports on the set Y P
B
P
R
Video output Ports
on the DVD player
Y P
B
P
R
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
1
2
To Next Page
