EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
Connecting with a component cable
■ To avoid damaging any equipment, never plug in any power cords until you have finished connecting all equipment.
■ The image shown may be somewhat different from your set.
► HDMI Audio Supported format : Dolby Digital, PCM
► DTS Audio format is not supported.
Signal Component HDMI
480i / 576i YES No
480p / 576p YES YES
720p / 1080i YES YES
1080p
YES
(50 Hz / 60Hz only)
YES
(24 Hz / 30 Hz / 50Hz / 60Hz)

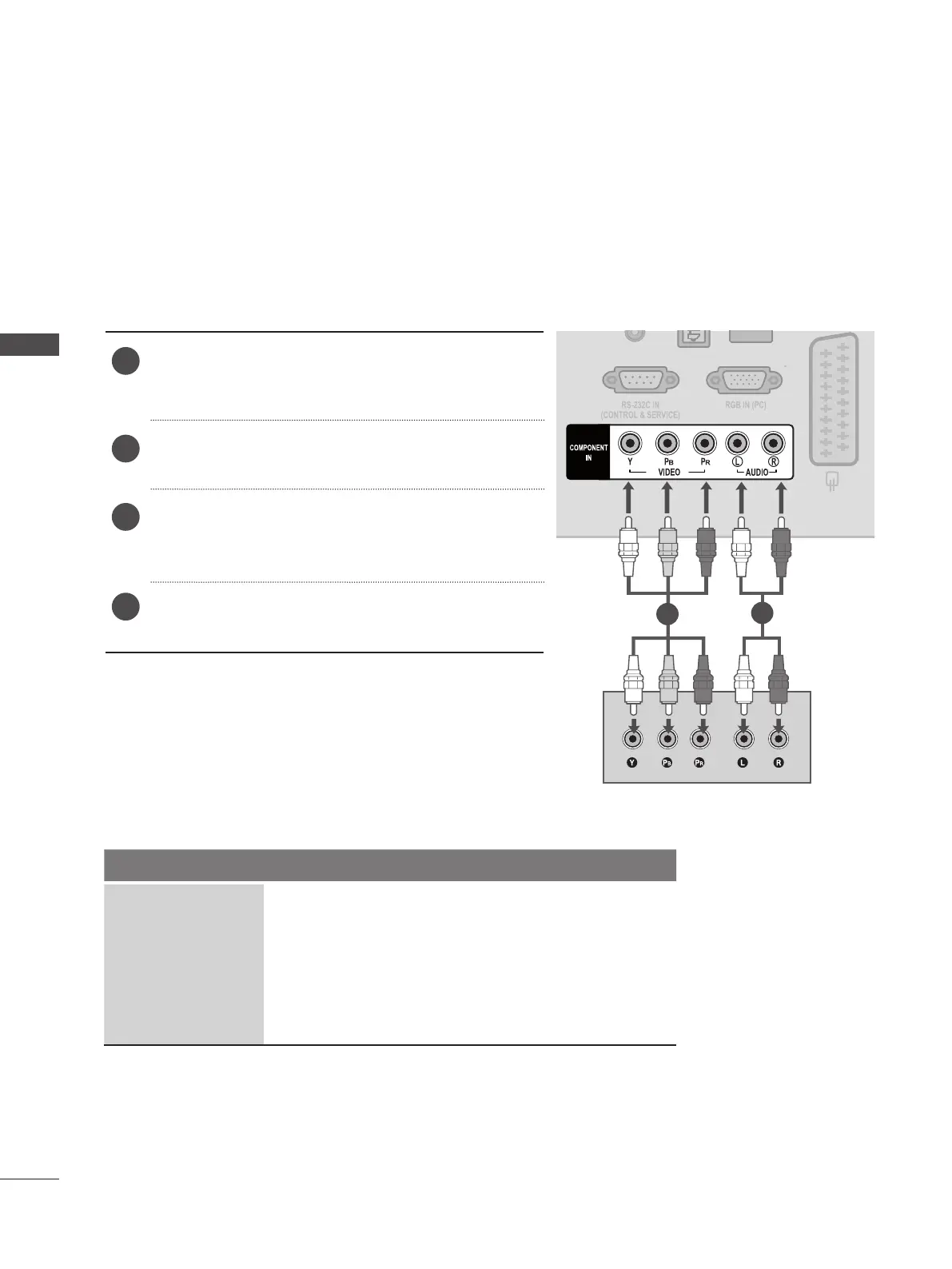

Connect the video outputs (Y, PB, PR) of the digital
set-top box to the COMPONENT IN VIDEO jacks on
the SET.
Connect the audio output of the digital set-top box
to the COMPONENT IN AUDIO jacks on the SET.
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top
box.)
Select COMPONENT input source using the INPUT
button on the remote control
1
2
3
4
1
2
