CAUTION
In case that the control box is opend and before checking electrical parts, it should be checked that the
LED 01M, 02M turned off(wait 7 minutes after main power OFF), otherwise it may cause electrical shock.
Checking Method for Key Components

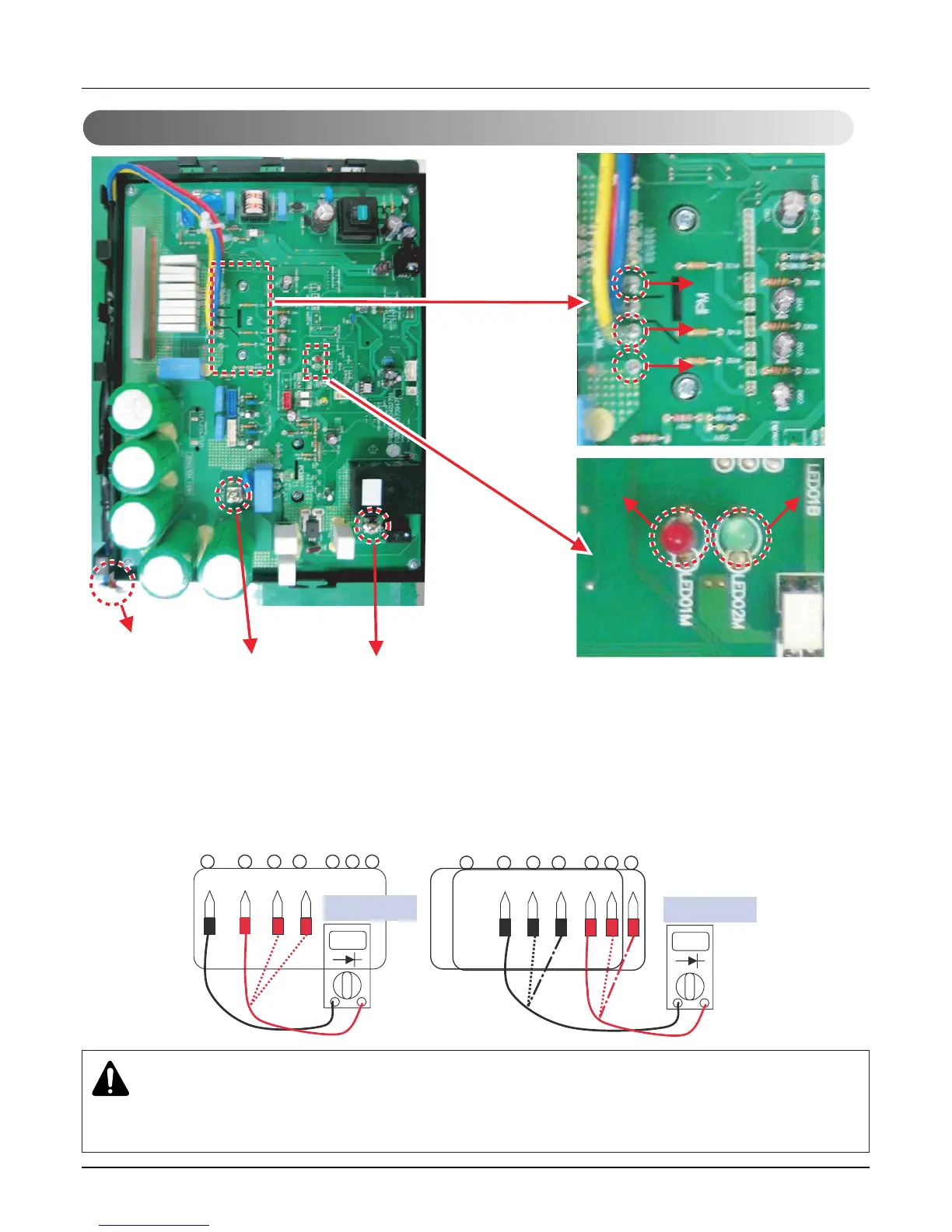

2.4 Inverter IPM Checking Method
1. Wait until inverter PCB DC voltage is discharged after main power off.
2. Pull out CN(L), CN(N) connectors and U,V,W COMP Connector.
3. Set multi tester to resistance mode.
4. If the value between P and N terminal of IPM is short(0Ω) or open(hundreds MΩ), PCB needs to be replaced.(IPM damaged)
5. Set the multi tester to diode mode.
6. In case measured value is different from the table, PCB needs to be replaced.(PCB damaged).
CN(L1)_RED CN(L2)_BLACK
U,V,W Connector
U
V
W
U
V
W
LED01MLED01M LED02MLED02MLED01M LED02M
27 26 25 24 23 22 21
P U V W Nu Nv
Nw
0.4 ~ 0.6 V
27 26 25 24 23 22 21
P U V W Nu Nv
Nw
0.4 ~ 0.6 V
