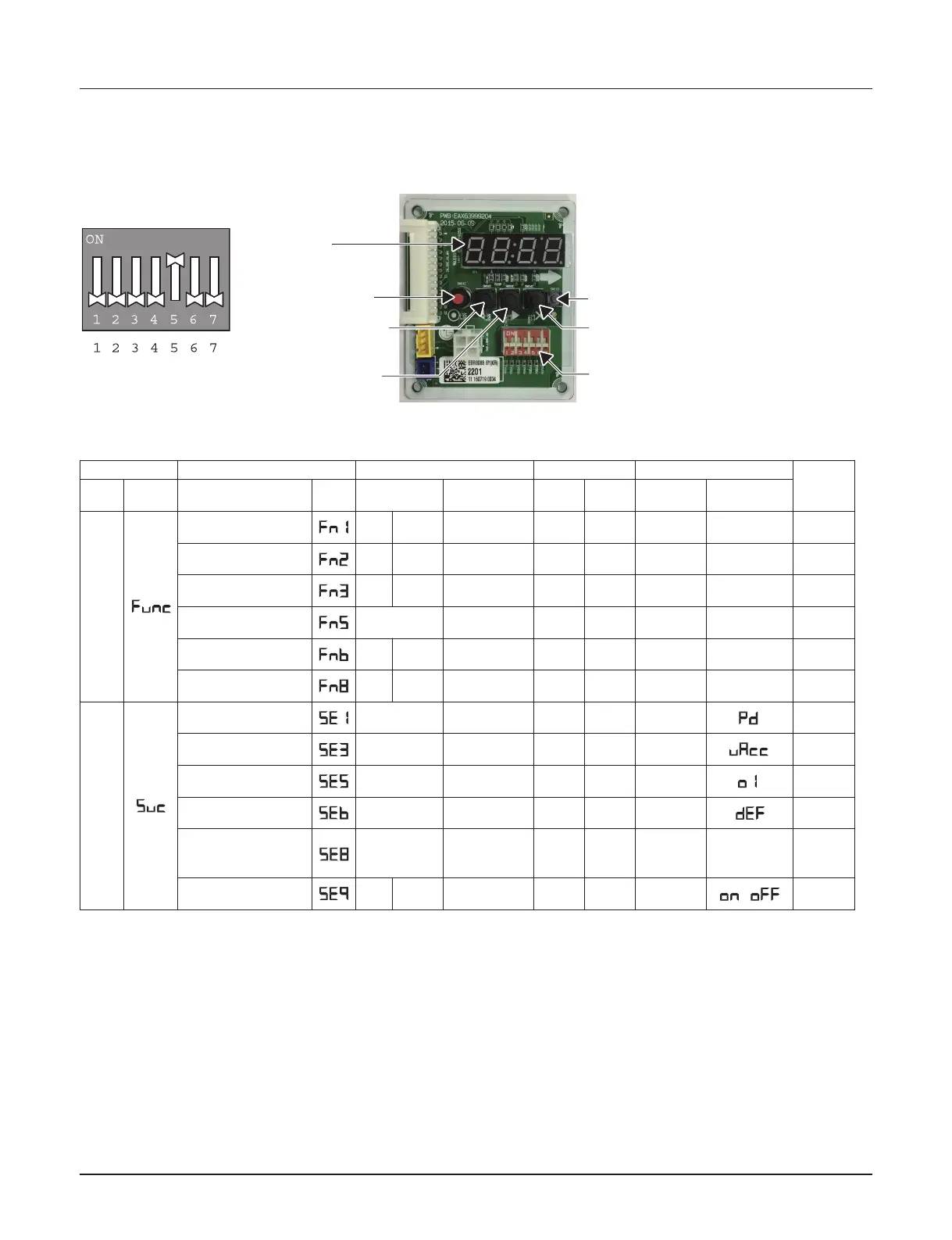

Function
DIP-SWITCH
SW01D(reset)
SW04C(x:cancel)
7-Segment
SW03C(▶:forward)
SW02C(◀:backward)
SW01C(●:confirm)
n Setting the function
Select the mode/function/option/value using ‘ ▶ ’, ‘ ◀ ’ Button and confirm that using the ‘ ● ’ button after dip
switch No.5 is turned on.
MODE FUNCTION OPTION VALUE ACTION
remarks
content Display1 content Display2 content Display3 content Display4 implement Display5
Install
ation
Cool & Heat Selector
(Only Heatpump)
oFF op1~op2
selected the
option
- -
change the
set value
blank
save in
EEPROM
Static pressure com-
pensation
oFF op1~op3
selected the
option
- -
change the
set value
blank
save in
EEPROM
Night low noise
oFF op1~op15
selected the
option
- -
change the
set value
blank
save in
EEPROM
ODU address
- - 0~254
set the
value
change the
set value
blank
save in
EEPROM
Snow removal & rapid
defrost
oFF op1~op3
selected the
option
- -
change the
set value
blank
save in
EEPROM
Target pressure adjust-
ing
oFF op1~op7
selected the
option
- -
change the
set value
blank
save in
EEPROM
SVC
Pump Down - - - -
start opera-
tion
-
Vacuum mode - - - -
start opera-
tion
-
Forced oil return
- - - -
start opera-
tion
-
Forced defrost
- - - -
start opera-
tion
-
Cycle data view - - - -
Show in
segment
Show the each
numerical value
in process
-
Refrigerant noise
reduction mode
oFF op1~op2 - - -
Change the
set value
save in
EEPROM
* Functions save in EEPROM will be kept continuously, though the system power was reset.
