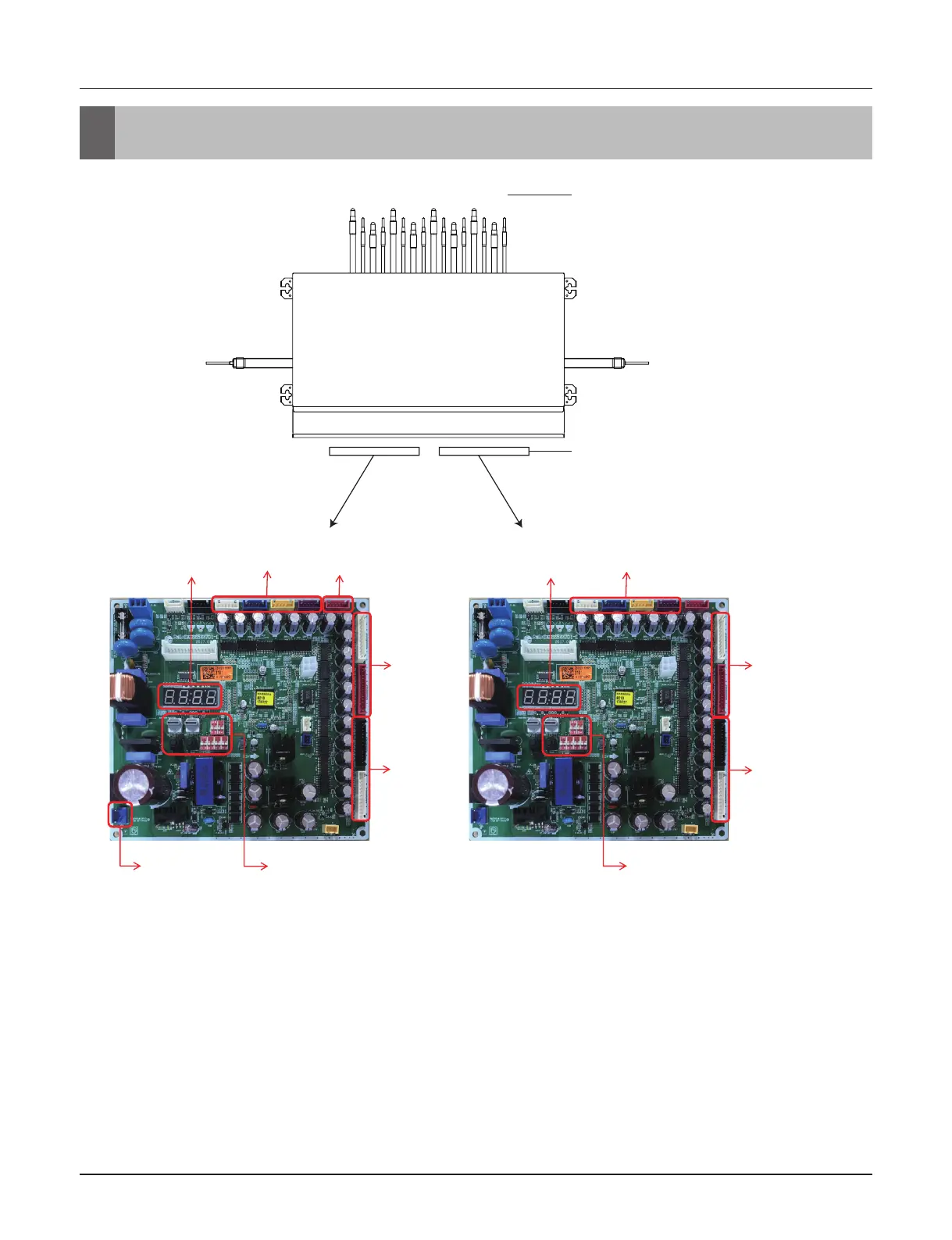

HR Unit PCB
- 68
-
Copyright © 2020 LG Electronics Inc.
All rights reserved. Only training and service purposes.
HR Unit PCB (PRHR**3A, ** : 02, 03, 04, 06, 08)
Branch #1~4
Bypass
(from left)
SC EEV
ڸڹںڻڼڽھڿ
Branch #3,4
High/Low
(from top)
Branch #1,2
High/Low
(from top)
Branch #5~8
Bypass
(from left)
Branch #7,8
High/Low
(from top)
Branch #5,6
High/Low
(from top)
7-SEG
Main PCB (2EA, same P/No)
7-SEG
Liquid
Bypass
Valve
- SW02E : Use only SW
No.5
- SW01E : Branch #5~8
(from SW No.1)
- SW01C
- SW01D/SW01C/
SW02B/SW01B/SW02E
- SW01E : Branch #1~4
(from SW No.1)
Branch No.
* Number from left in sequence for less-than-8 branch model.
** PRHR043 / PRHR043A / PRHR033 / PRHR033A / PRHR023 / PRHR023A : Master Only
67
69
