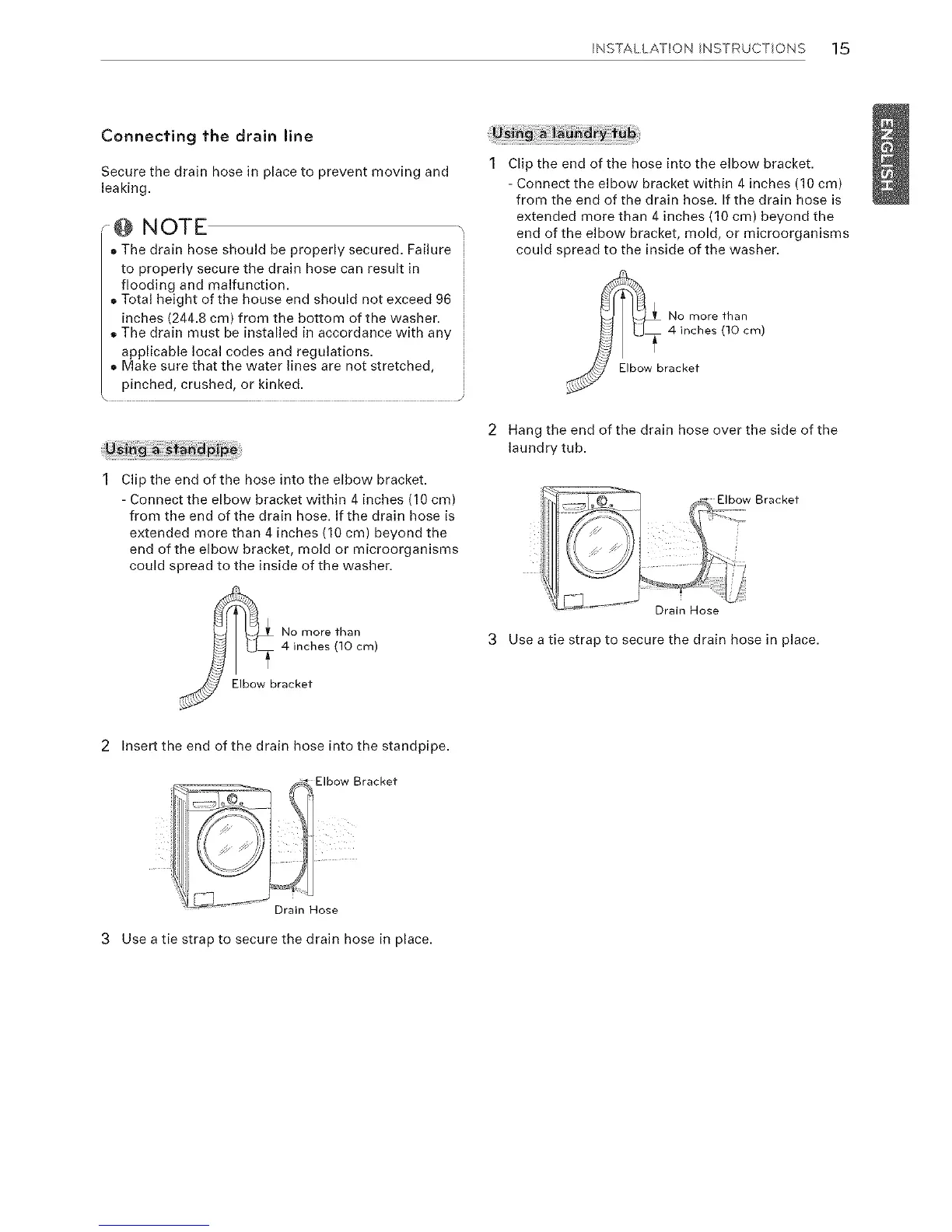

INSTALLATION INSTRUCTIONS 15

Connect"ing 1"he drain line

Secure the drain hose in place to prevent moving and

leaking.

_@ NOTE-

o The drain hose should be properly secured. Failure

to properly secure the drain hose can result in

flooding and malfunction.

o Total height of the house end should not exceed 96

inches (244.8 cm) from the bottom of the washer.

o The drain must be installed in accordance with any

applicable local codes and regulations.

o Make sure that the water lines are not stretched,

pinched, crushed, or kinked.

..... J

Clip the end of the hose into the elbow bracket.

- Connect the elbow bracket within 4 inches (10 cm)

from the end of the drain hose. If the drain hose is

extended more than 4 inches (10 cm) beyond the

end of the elbow bracket, mold or microorganisms

could spread to the inside of the washer.

NO more than

4 inches (10 cm)

racket

2 Insert the end of the drain hose into the standpipe.

Elbow Bracket

Use a tie strap to secure the drain hose in place.

Clip the end of the hose into the elbow bracket.

- Connect the elbow bracket within 4 inches (10 cm)

from the end of the drain hose. If the drain hose is

extended more than 4 inches (10 cm) beyond the

end of the elbow bracket, mold, or microorganisms

could spread to the inside of the washer.

loncm

racket

2 Hang the end of the drain hose over the side of the

laundry tub.

3 Use a tie strap to secure the drain hose in place.
