16.9 SafetyMonitor
WARNING!
Read the user manual for SafetyMonitor carefully before use of the Eleganza 4 bed with SafetyMonitor!
Intended Use
SafetyMonitor is a system that monitors statuses of Eleganza 4 bed: brake status (braked castors/unbraked castors), siderail status
(siderails up/siderail down), bed height (bed in the lowest position/bed not in the lowest position), backrest angle (backrest in more
than 30°/backrest in less than 30°), patient presence (patient on the bed/patient not on the bed) and location of the bed (where the
bed is situated). Secure statuses are: braked bed, siderails up, bed in the lowest position, backrest in more than 30° and patient
on the bed. The system triggers alerts (notice signals for insecure statuses) and alarms (alarm signals for the absence of a patient
on the bed). Alerts and alarms are automatically passed to the hospital information system and displayed on a screen in the nurse
station and on a smartphone/tablet. Information is transmitted via LAN or Wi-Fi connection. Alarm (Bed Exit Alarm) sounds just from
the bed. In this way, medical staff can be informed in a timely manner of any safety risk while saving administrative time.
System components
SafetyMonitor system consists of installed server, secure intranet infrastructure (Wi-Fi or LAN), screen in the nurse station (PC
or tablet or smartphone), Tag on the wall, parked Eleganza 4 EMR ready bed with iBoard Basic, Integration Module, Localisation
Receiver, LAN connector and LAN cable.
iBoard Basic (SafetyMonitor Section)
1. ON button (RUN)
2. Inner Zone button (Bed Exit Monitoring)
3. Outer Zone button (Bed Exit Monitoring)
4. OFF button
5. Volume button (3 levels of sound pressure)
6. PAUSE button
7. Bed Exit Monitoring Activated (Inner Zone Monitoring)
8. Patient icon (patient is on the bed)
9. Volume indicator (3 levels of sound pressure)
10. Server connection icon (arrows only – connected, arrows with cross – disconnected)
11. Bed icon with bed statuses
12. SafetyMonitor system status indicator (ON/OFF/PAUSE)
1 2 3 4
5
6
7
8
910
11
12

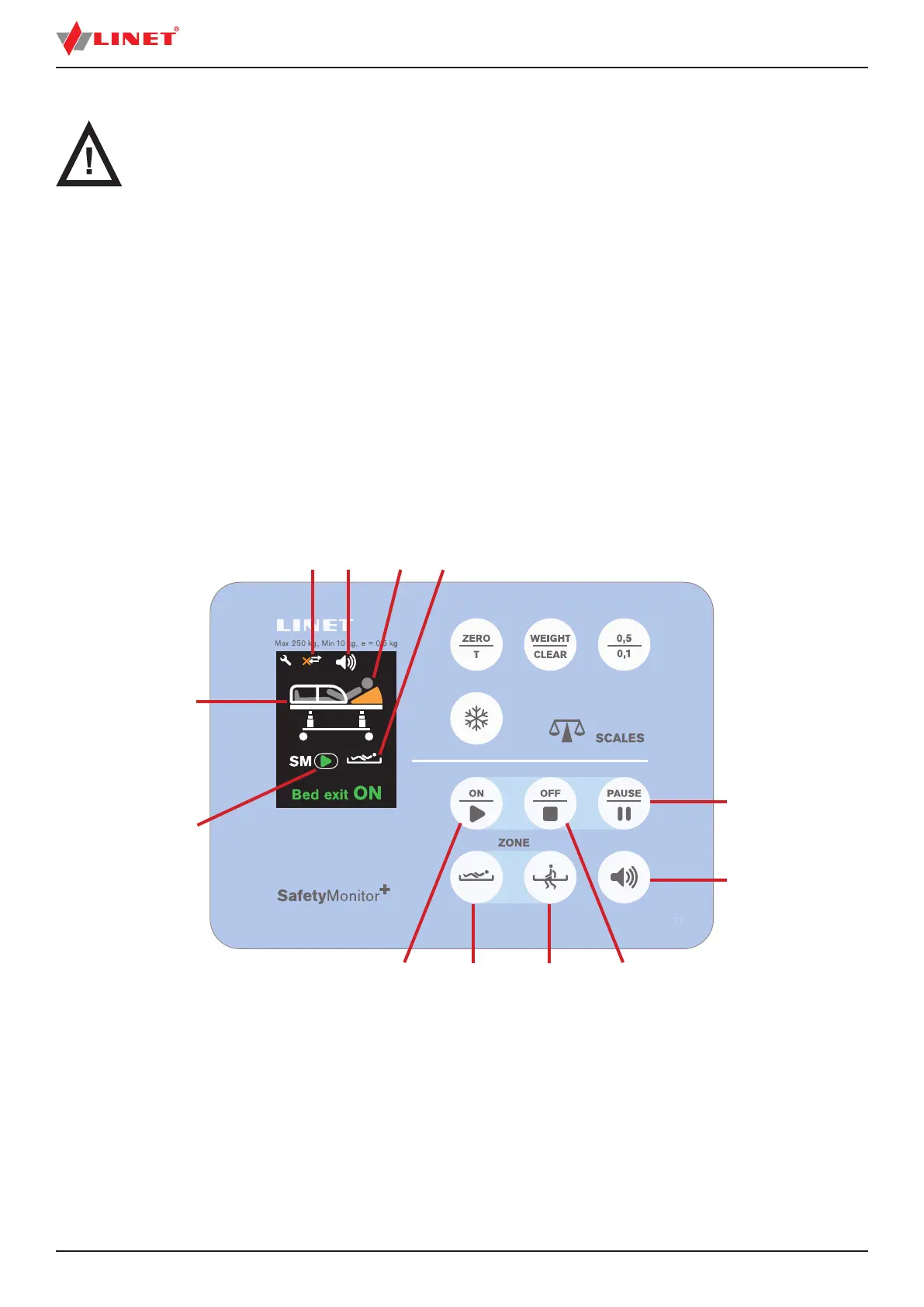

Fig. SafetyMonitor Section (iBoard Basic) - Display and Keyboard
