Linksys® E2000 Wireless-N Router Configuration Guide

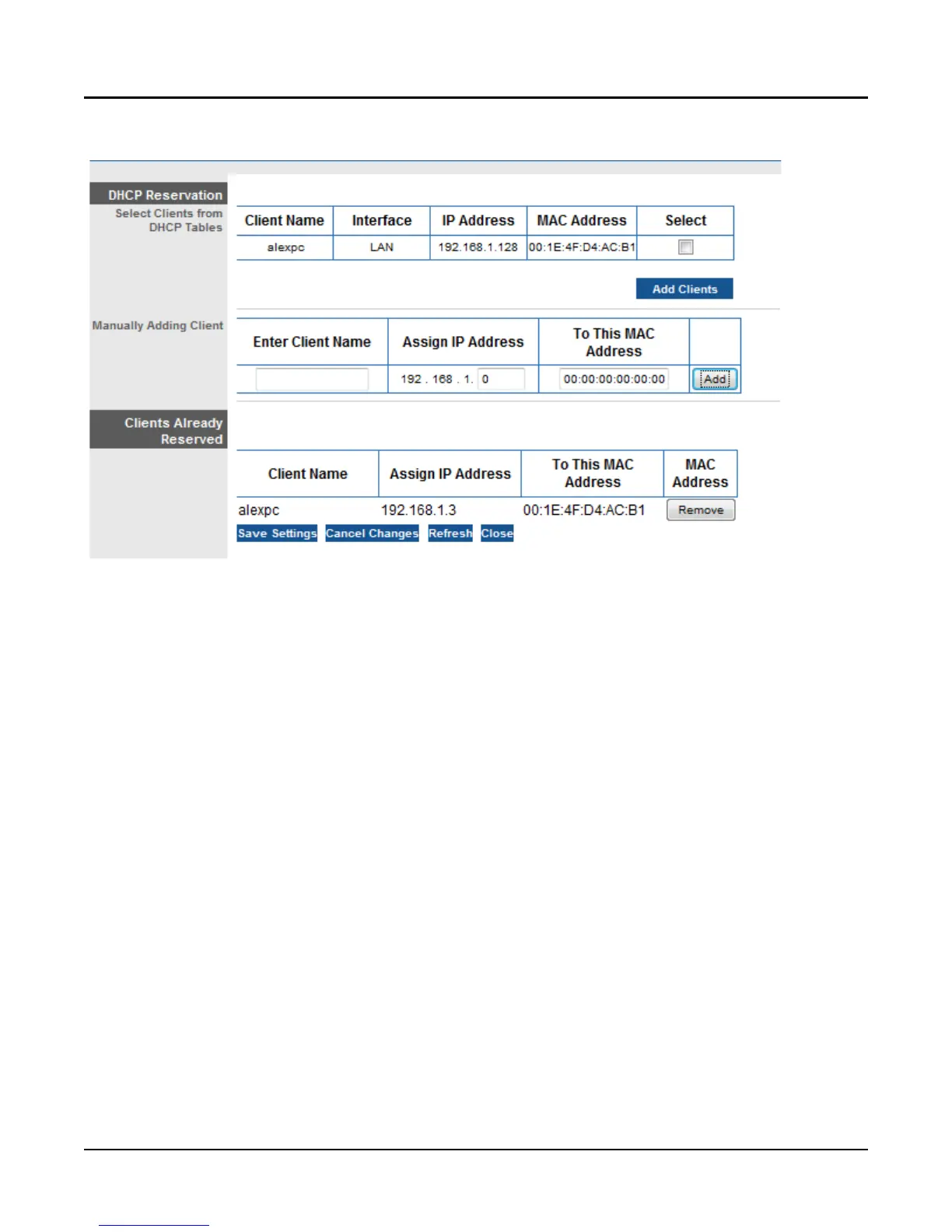

Press Add Client to add the PC to the table.
Press Save Settings and then Close.
To make these settings take effect, disconnect and then reconnect the Ethernet cable to the
PC.
Note that if the PC containing N2KServer
®
is the same PC that you are working on, your
session will be disconnected as the PC is given its new address.
2.4 Adding a MBB100 N2KView Client to the Network
Connect Maretron’s Black Box (MBB100) to the WiFi/Router using an Ethernet Cable. The
cable plugs into one of the blue Ethernet sockets at the back of the router.
Open the Configuration Dialog on the MBB100 by clicking on the Configuration tab on the right
of the screen. In the Network Configuration section, ensure that the Use DHCP box is
selected. If it is not, click on the square to display the check mark and press the Update button.
The screen may blank for a couple of minutes while the change is applied.
Close the Configuration Dialog and open the Connections Dialog by clicking on the
Connections tab on the right of the screen.
In the N2KServer Connection section, press the Disconnect button, type the IP address of the
IPG100 or PC-based N2KServer.
Page 14 Revision 1.1

Linksys E2000 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Input current	1 A
Input voltage	12 V
Dimensions (WxDxH)	202 x 34 x 160 mm
WLAN data transfer rates supported	300 Mbit/s
DHCP client	-
Antennas quantity	3
Antenna gain level (max)	2.2 dBi
Web-based management	No
Security algorithms	WEP, WPA, WPA2
Certification	FCC, CE, IC-03, Wi-Fi
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Weight	300 g
