Linksys LAPAC1750 User Manual

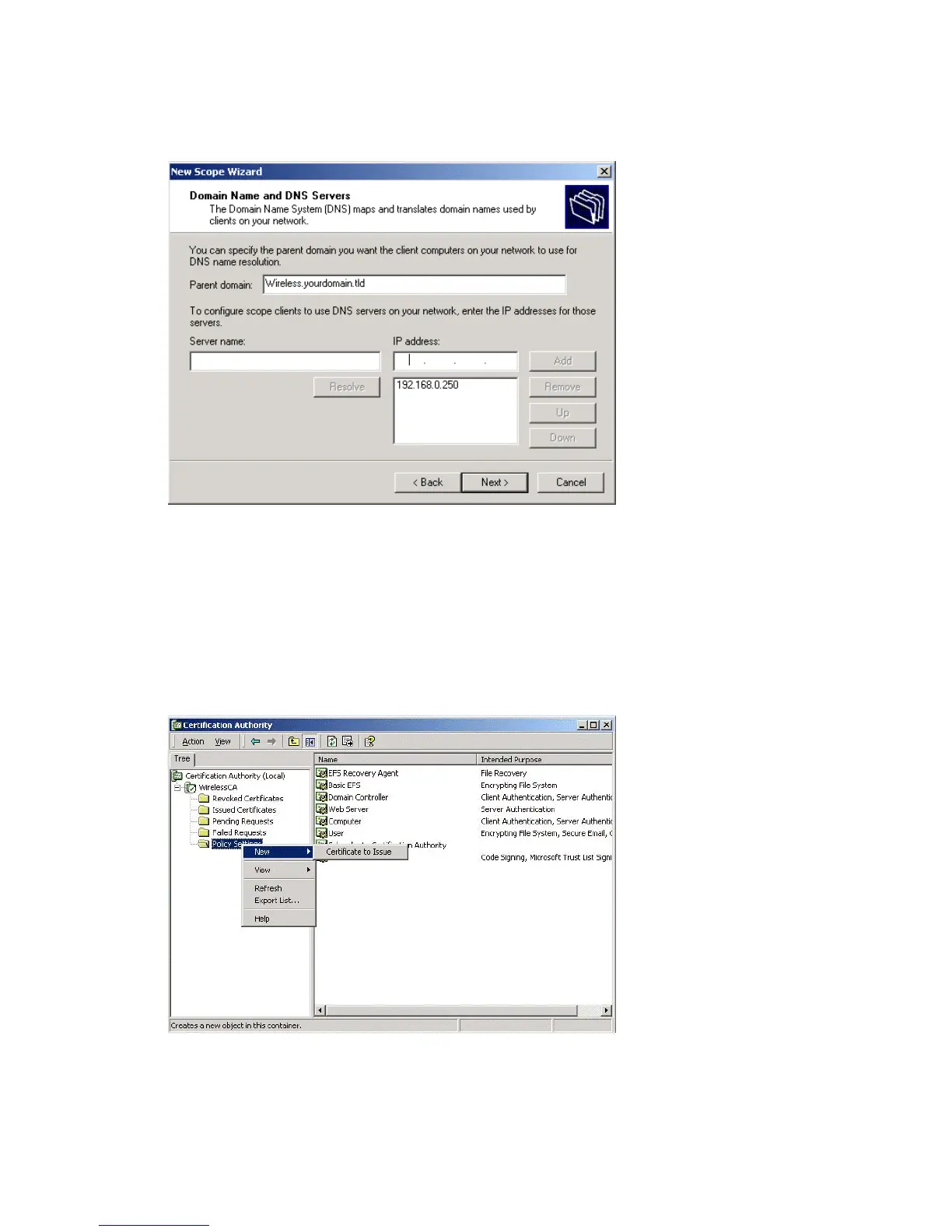

10. For the parent domain, enter the domain you specified for the domain controller setup, and
enter the server's address for the IP address. Click Next.
11. If you don't want a WINS server, just click Next.
12. Select Yes, I want to activate this scope now. Click Next, then Finish.
13. Right-click on the server, and select Authorize. It may take a few minutes to complete.
Certificate Authority Setup
1. Select Start > Programs > Administrative Tools > Certification Authority.
2. Right-click Policy Settings, and select New > Certificate to Issue.
3. Select Authenticated Session and Smartcard Logon (select more than one by holding
down the Ctrl key). Click OK.
110

Linksys LAPAC1750 Specifications

General

Modulation	-
Frequency band	2.412 - 2.462, 5.18 - 5.24, 5.745 - 5.825 GHz
Channels quantity	11 channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEEE 802.3u
Wi-Fi data rate (max)	500 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Quality of Service (QoS) support	Yes
Internal	No
Placement	Ceiling, Wall
Certification	FCC, CE, IC
Product color	White
Cable lock slot type	Kensington
Supported network protocols	IPv6
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	802.1x RADIUS, WDS, WEP, WPA, WPA2
Number of SSID supported	16
Antenna features	Integrated antenna
Input current	1.5 A
AC input voltage	12 V
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	243.08 mm
Width	236.98 mm
Height	43.69 mm
