Rev: 07.10.19 Page 15
CCD-0001575
5. Apply brake at the desired bed height, then raise the brake release handle.
6. Reconnect the motor harness.
Manually Lowering the Bed(s)
Do as follows:
1. Unplug the motor harness from the PnP control module (Fig. 20).
Before releasing the brake in manual mode, make sure there are no people, pets or obstacles below
the bed platforms. Keep hold of the brake lever as the bed(s) extends. Be prepared to apply the
brake if necessary.
2. Push up on the brake release (Fig. 21A). Bed will drift downward.
3. Re-apply the brake by lowering the brake release handle when the desired bed height is reached.
4. Reconnect the motor harness.

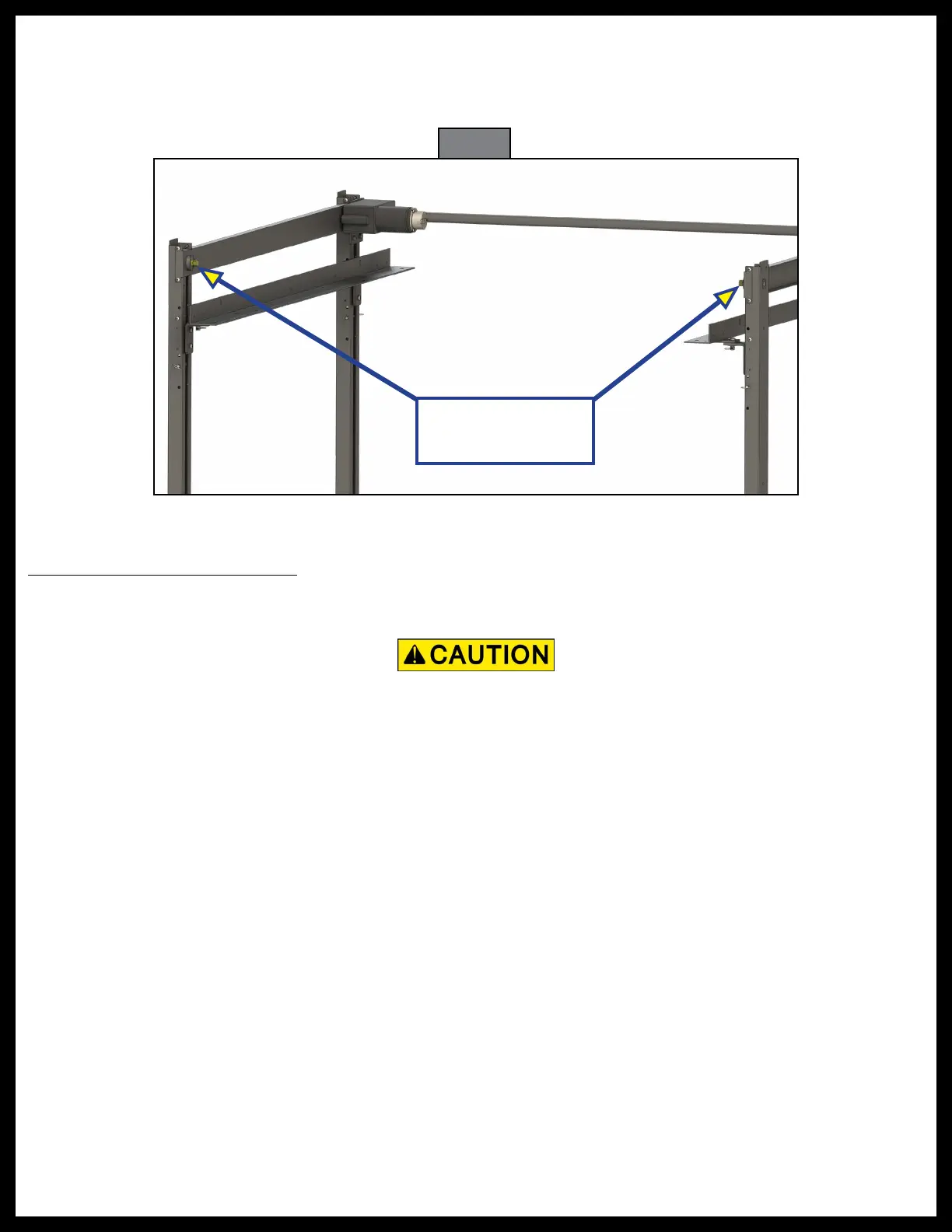

Fig. 22
Cranking Points for
Manual Operation
3. Remove the caps from the cranking points, which are located at the top of the front c-channels
(opposite of the c-channels where the motor and cross-connecting shaft are installed).
4. Using a
½"
socket and ratchet, manually crank the bed lift (Fig. 22).
NOTE: Cranking is easier if two people crank simultaneously, one on each side of the bed lift.
