The upper trolleys are only used to support a bed platform. Bed platform rails (Fig. 9A) are secured to the tab
brackets (Fig 9B) and the bed platform rests on the platform rails.
Lowering
1. Put the sofa or dinette seats, if equipped, in the up (stowed) position. (See Lower Trolley: Sofa or
Dinette Configuration.)
Fig. 9
Upper Trolleys
Fig. 10
A
B
A
B
NOTE: Bed platform has
been removed
for clarity.

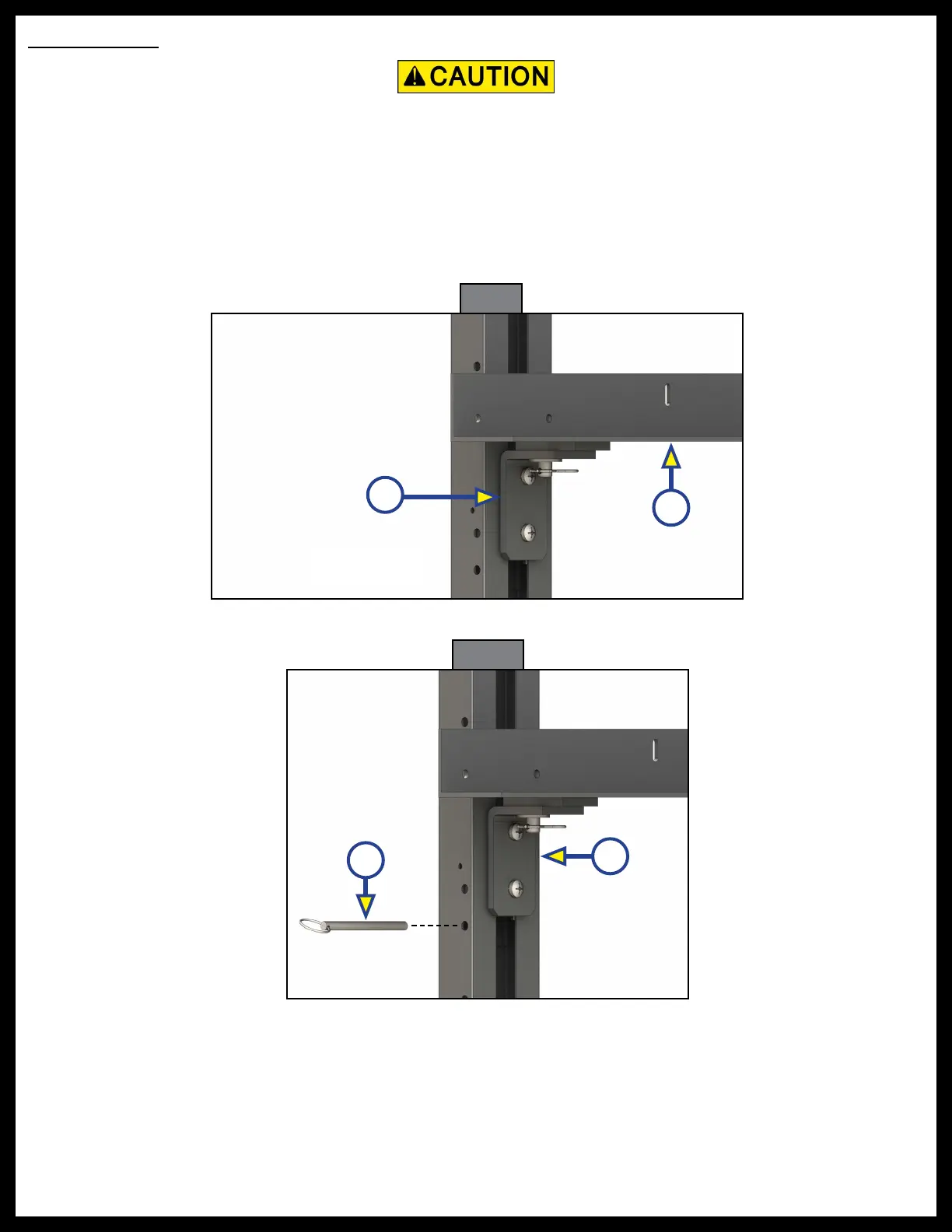

2. Pull the all four pins (Fig. 10A) securing the upper trolleys (Fig. 10B) to the C-channel rails (Fig. 10C).
The upper trolleys can drift down if not properly secured. Make sure that the securing pins are in
place after adjusting the upper trolleys.
3. Press the DOWN switch and the upper and lower trolleys will come down together. The upper trolleys
will stop at the first stop bunk stop block.
4. The the lower trolleys can continue to lower.
5. Replace the pins securing the top bunk.
