Rev: 07.10.19 Page 9
CCD-0001575
A
B

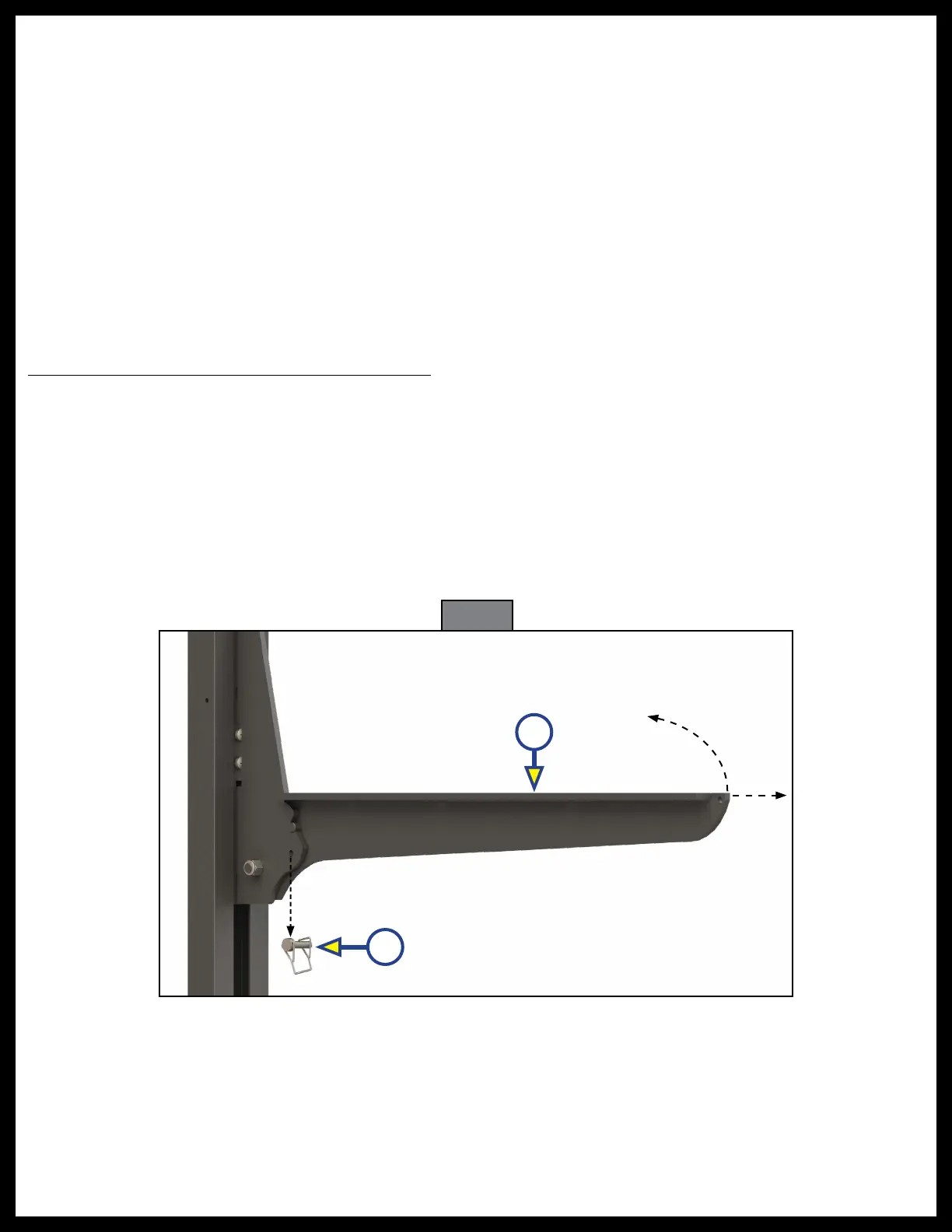

Fig. 11
Stowing
The HappiJac Bed Lift system has a stow feature for the upper trolley, where the upper limit switches stop
the upper trolleys in uppermost position to provide maximum space underneath the bed platform attached
to the upper trolleys.
NOTE: Lower trolleys can still move up and down when the upper trolleys are in the stowed position.
1. Press the UP switch to run the upper trolleys until they are stopped by the upper limit switches.
2. Insert all four locking pins (Fig. 10A) through the C-channel rails.
3. Lower bottom bunk to desired operational height.
To Un-stow
1. Retract the beds up to the up and retracted position.
2. Remove all four locking pins (Fig. 10A) from the C-channel rails.
3. Lower both platforms until the top bunk rests on the bunk stops, and the lower platform continues to
extend and lower to the desired operational height.
Lower Trolley: Sofa or Dinette Configuration
The lift system can be configured to accomodate a bed on the upper trolley and a sofa or dinette on the
lower trolleys. The sofa or dinette will need extra brackets that will lock into the lower trolleys.
NOTE: Bracket shown without sofa or dinette attached. Consult the manufacturer's instructions for bracket
installation on sofa or dinette units.
Lowering the Arm
1. Remove the lockpins securing both bracket arms (Fig. 11A).
2. Pull up slightly on the bracket arm (sofa or dinette seat base) (Fig. 11B), then pull out.
3. Gently lower the arm (sofa or dinette seat base).
