13
Connections
Connecting an AV Device Using an HDMI Cable
• This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection)
Protocol.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to
the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x
1080p.
1. Use an HDMI cable to connect the TV’s HDMI input
socket to the external AV device’s HDMI output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the STANDBY button on the front right side
panel of the TV or the
button on the remote
control to turn on your TV.
4. Press the SOURCE button on the front right side
panel of the TV or on the remote control to display
the Source List. Use the
buttons to select HDMI
and then press the OK button to confirm.

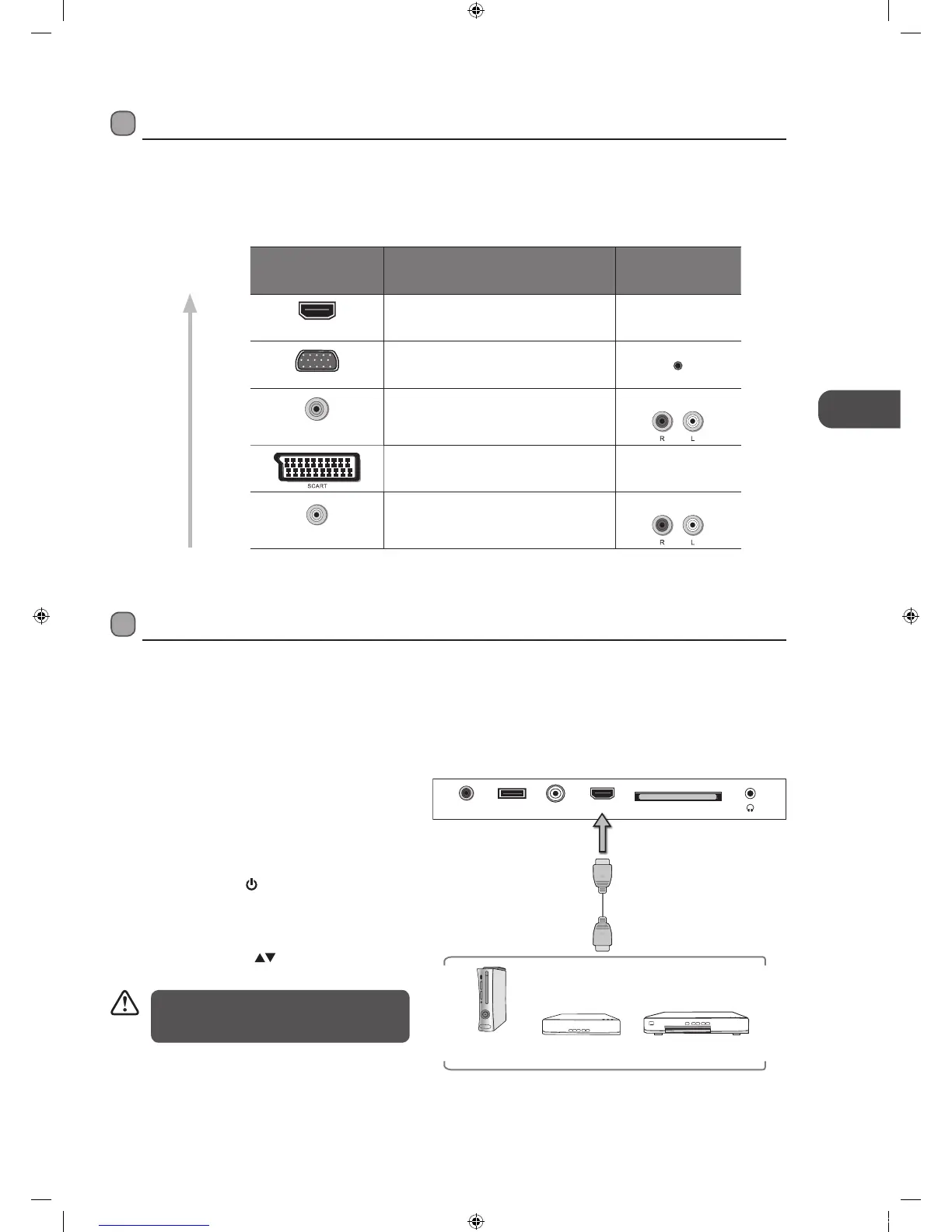

Making Video and Audio Connections
Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and
connection procedures.
When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are
complete.
Signal Type
Separate Audio
Connection Required
HDMI
HDMI
(480i/480p/576i/576p/720p/1080i/1080p)
No
VGA (PC)
PC
Yes
Audio In
YPbPr
IN
Component Video
(480i/480p/576i/576p/720p/1080i/1080p)
Yes
SCART (RGB Input) No
CVBS
Composite Video
Yes
Best Video
Performance
Although this TV is able to connect to an
HDMI device, it is possible that some devices
may not operate correctly.
COAX
Audio Out
AERIAL IN
USB
HDMI CI CARD IN
Rear Right Side View of TV
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
HDMI Cable
(not included)
L22FEDN_P_R_W12_IB_120402_Annie.indd 13 12年4月2日 下午3:16
