Logik L22FEDN12 User Manual

GB
Connections
15

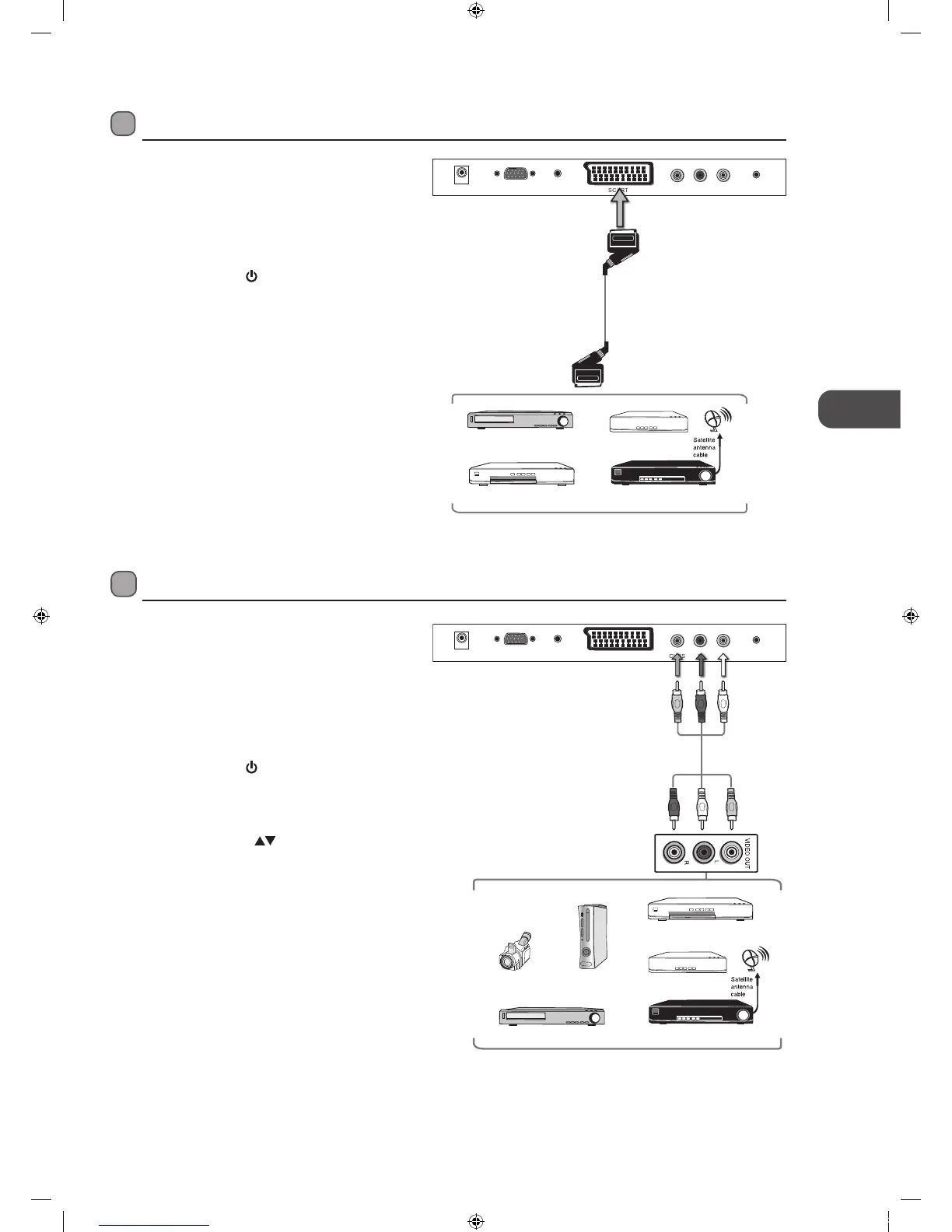

Connecting an AV Device Using Composite Cable
1. Use the AV cable to connect the TV’s AUDIO(L/R)/
VIDEO IN input sockets to an external AV device’s
composite audio/video sockets.
(Video = yellow, Audio Left = white, and Audio
Right = red)
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the STANDBY button on the front right side
panel of the TV or the
button on the remote
control to turn on your TV.
4. Press the SOURCE button on the front right side
panel of the TV or on the remote control to display
the Source List. Use the
buttons to select AV and
then press the OK button to confirm.
Connecting an AV Device Using a SCART Cable
1. Use a SCART cable to connect the TV’s SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the STANDBY button on the front right side
panel of the TV or the
button on the remote
control to turn on your TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Rear Right Bottom View of TV
VGA (PC)
DC IN
VGA (PC)
Audio In
Mini YPbPrCVBSSCART R L
SCART Cable
(not included)
Satellite Receiver
VCR
DVD Player / Recorder
Set-top Box
Satellite Receiver
Rear Right Bottom View of TV
VGA (PC)
DC IN
VGA (PC)
Audio In
Mini YPbPrCVBSSCART R L
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(included)
Yellow (Video)
White (L)
Red (R)
Yellow (Video)
Red (R)
White (L)
L22FEDN_P_R_W12_IB_120402_Annie.indd 15 12年4月2日 下午3:16
