63
DATE
22.12.2003
COMPILER TECO/ATI
REG. CODE
1-5302-467
MODEL N°
50707
DATE OF ISSUE
06-95
REVISION 05
ENDORSED
XI
128
129
ELECTRICAL SYSTEM

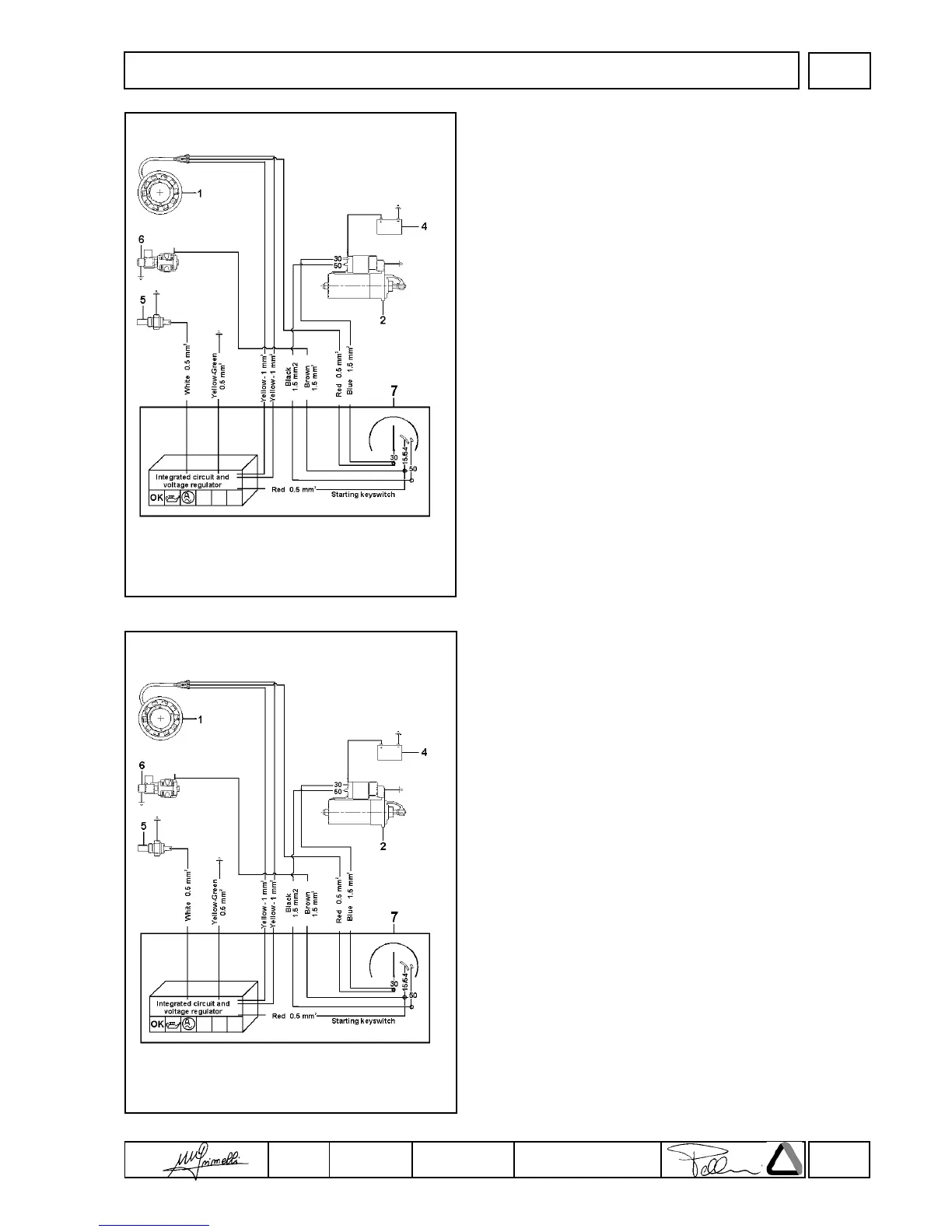

12V electric starter diagram with voltage regulator built into the
ignition panel
Components:
1 Alternator
2 Starter motor
4 Battery
5 Pressure switch
6 Solenoid valve
7 Ignition switch
Note: The battery, which is not supplied by LOMBARDINI, should
have 12V nominal voltage rating and a capacity of not less
than 44 Ah / 210 Amp. of fast discharge intensity.
12V electric ignition layout with motor protection (optional)
Components:
1 Alternator
2 Starter motor
4 Battery
5 Pressure switch
6 Solenoid valve
7 Ignition switch
8 Panel
Note: The battery, which is not supplied by LOMBARDINI, should
have 12V nominal voltage rating and a capacity of not less
than 44 Ah / 210 Amp. of fast discharge intensity.
