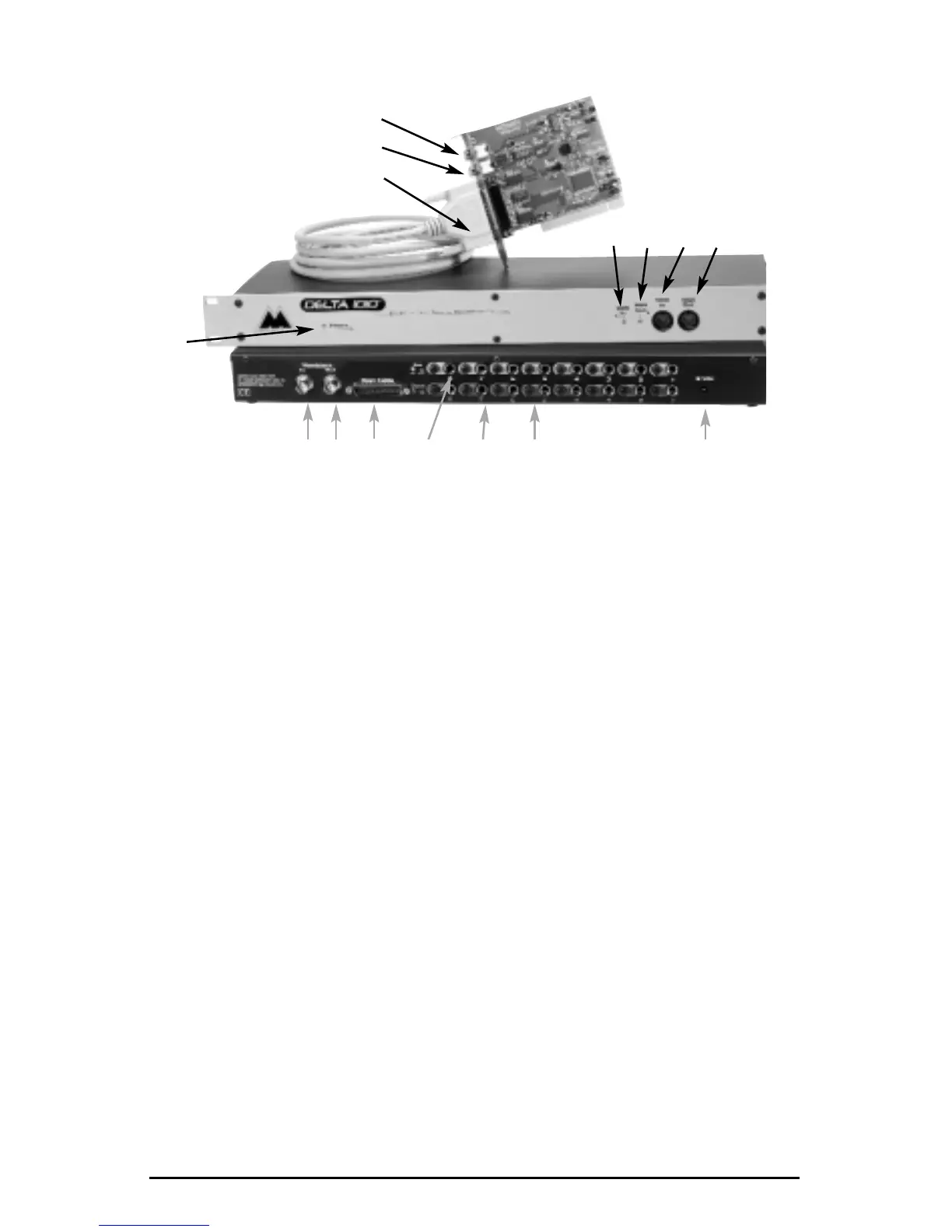

Rack Unit Front Panel:
1. Power indicator LED: When lit, this LED indicates that the external rack-
mount unit’s power is on. Note that there is no power switch on the rack-
mount unit; instead the rack-mount unit’s power is enabled while the host
computer is turned on.
2. MIDI Input LED: This LED will light corresponding to MIDI information
received at the Delta 1010’s MIDI input.
3. MIDI Output LED: This LED will light corresponding to MIDI information
transmitted from the Delta 1010’s MIDI output.
4. MIDI In jack: This standard MIDI connector accepts a standard MIDI cable.
Typically a MIDI controller or MTC source would be connected to the Delta
1010 MIDI input jack.
5. MIDI Out jack: This standard MIDI connector accepts a standard MIDI cable.
Typically a MIDI keyboard or sound module would be connected to the MIDI
output jack.
Rack Unit Back Panel:
6. Word Clock In: This female BNC connector is used to input word clock signals
from external sources. The Delta 1010 is capable of synchronizing its sample
rate with that of the incoming word clock signal. The input provides built-in
75-ohm termination. The use of 75-ohm coaxial cables (with male BNC
connectors) is highly recommended.
7. Word Clock Out: This female BNC connector outputs a word clock signal that
is in-sync with the present sample rate clock of the Delta 1010. The output
circuitry is designed to drive a word clock signal across 75-ohm coaxial cables
and into a device with 75-ohm termination.
8. Host Cable connector: This 25-pin D-sub connector is used to attach the
external rack-mount unit to the PCI host card, using the supplied host cable.
9. Analog Inputs 1-8: These jacks input analog audio from a variety of external
234
5
15
14
13
6 7
8
10 11 129
