WIRING MANUAL
The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction,
translation, transmission, in part of or whole of the present document,are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the Authorized Service Centre of Mahindra & Mahindra Ltd.,will amount to unauthorized use and shall be liable for penalty/
prosecution© 2013 Mahindra & Mahindra Ltd.
MAN-00233
MAY 2013/Rev1
25042013
C178C189
C151
C152
G25
Applicable
for H8 only
Applicable
for H8 only
SR. NO.
NAME OF COMPONENT
NO. OF POLES COLOUR CONNECTOR VIEW NEW NOMENCLATURE WIRE HARNESS
1GROUND GROUND G25 DRIVER DOOR WIRING HARNESS
2
IC ORVM (8P) 8
GREY FEMALE INTER HARNESS CONNECTOR C189 DRIVER DOOR WIRING HARNESS
3
POWER WINDOW 11
NATURAL FEMALE CONNECTOR C178 DRIVER DOOR WIRING HARNESS
4
IC IP 20P 20
NATURAL FEMALE CONNECTOR
C151 DRIVER DOOR WIRING HARNESS
5
IC IP 4P 4
GREY FEMALE CONNECTOR
C152
DRIVER DOOR WIRING HARNESS
TYPE

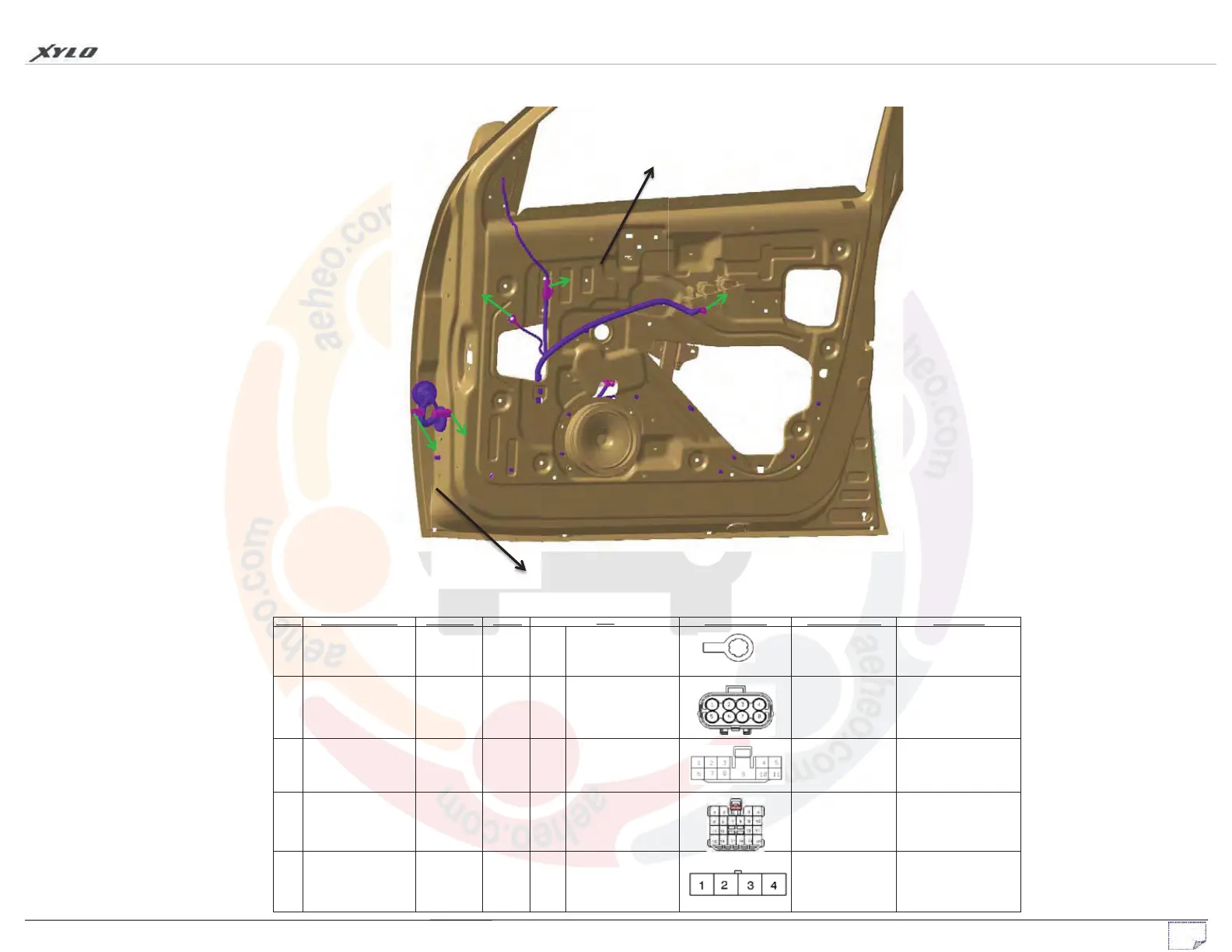

DRIVER DOOR WIRING HARNESS (FROM INSIDE)
APPLICABLE MODELS: H4/H4 ABS /H8/H8 AIRBAG
To Next Page
