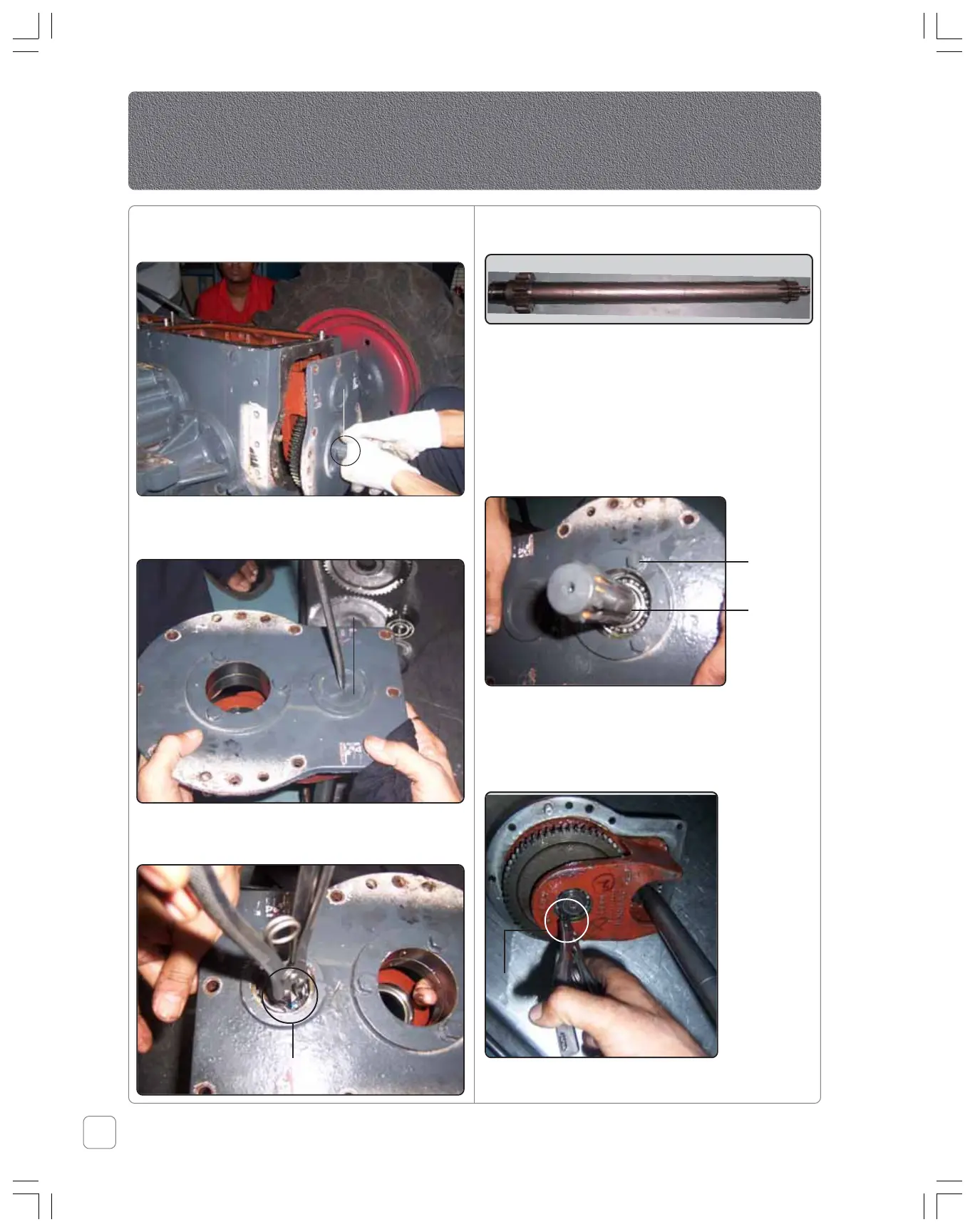

3. Pull out the PTO shaft subassembly by
holding the main PTO shaft.
4. Damage & remove the welch plug mounted
on the rear cover.
5. Remove the rear circlip of the PTO drive
shaft with the help of external circlip plier.
6. Remove the PTO drive shaft by tapping it
from the rear with the help of a mallet.
7. With the help of circlip piler remove the
circlip of PTO drive shaft bearing.
8. Tap & remove the bearing of PTO shaft
drive shaft.
9. Remove 3 nos of bolt & spring lock washer
of PTO oil seal retainer with the help of 8
mm spanner.
10. Pull & remove the PTO oil seal retainer.
11. Remove the PTO oil seal.
12. Remove the front & rear circlip of main PTO
shaft.
Main PTO
Shaft
Welch
Plug
Circlip
PTO Drive Shaft
Bolt
Main PTO
Shaft
Front
Circlip
