Mahindra YUVRAJ 215 User Manual

52

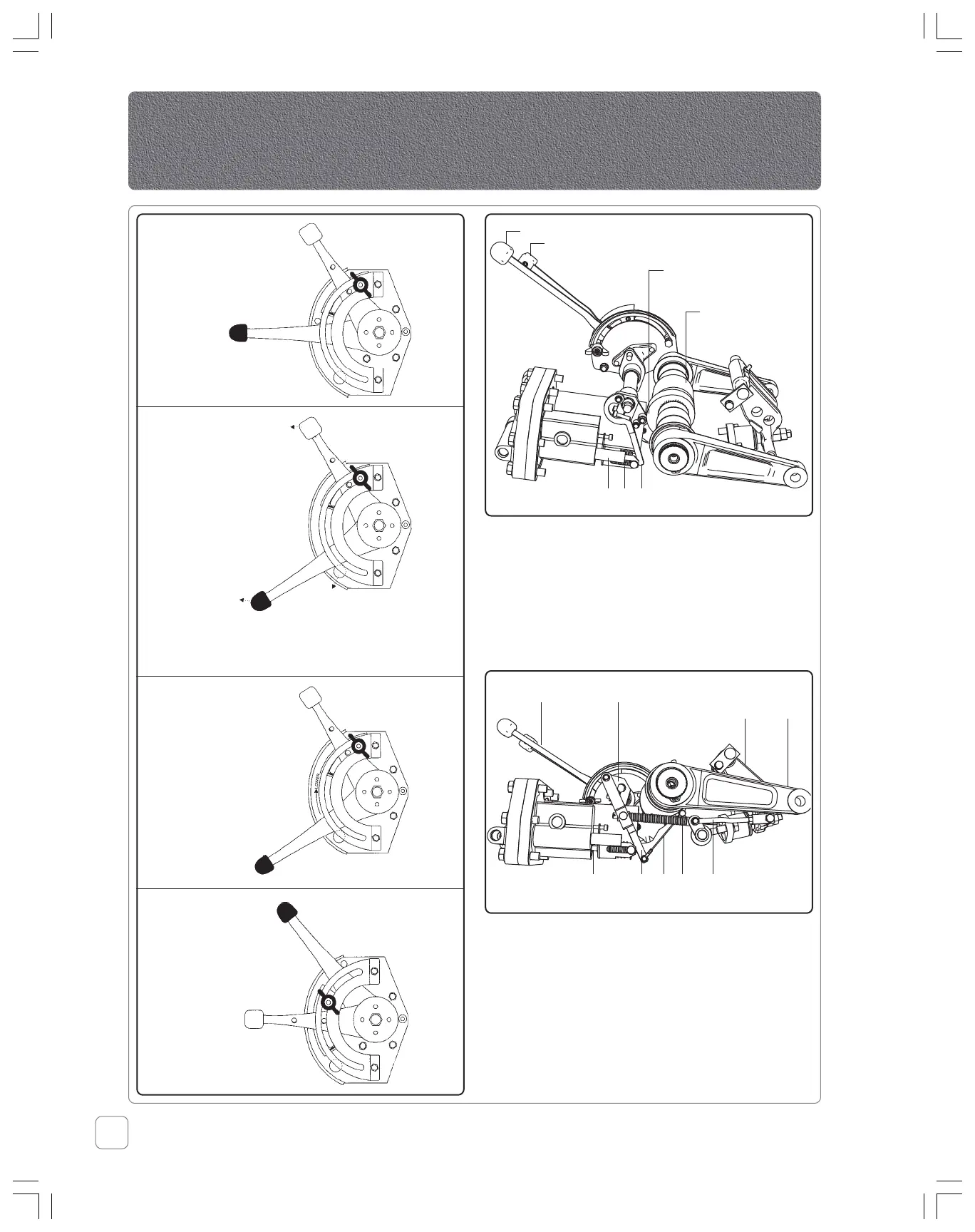

Hydraulic Torque Values
Position control set to give
a desired height
Position Control Set to give a
desired height
Position Control Set to give
a desired height
Position Control
Lever
Draft Control
Lever
Upper Limit
Stop
Position
Control
Control set for Transporting
1
2
7
5
6
3
4
1 Lever Position Control
2 Lever Draft Control
3 Cam
4 Roller
Arrangement of Position Control Linkages
5 PC Actuating Link
6 Spring
7 Spool
1 Lever Draft Control
2 Rocker Draft
Control
3 Top Link Crank
4 Lift Arm
5 Link Outer Draft
Arrangement of Draft Control Linkages
Sensing
6 Spring DC Rod
7 Cable
8 Link Cpte. DC
Actuating
9 Spool Control
Valve
8 7 56
1
3
2
4
9
