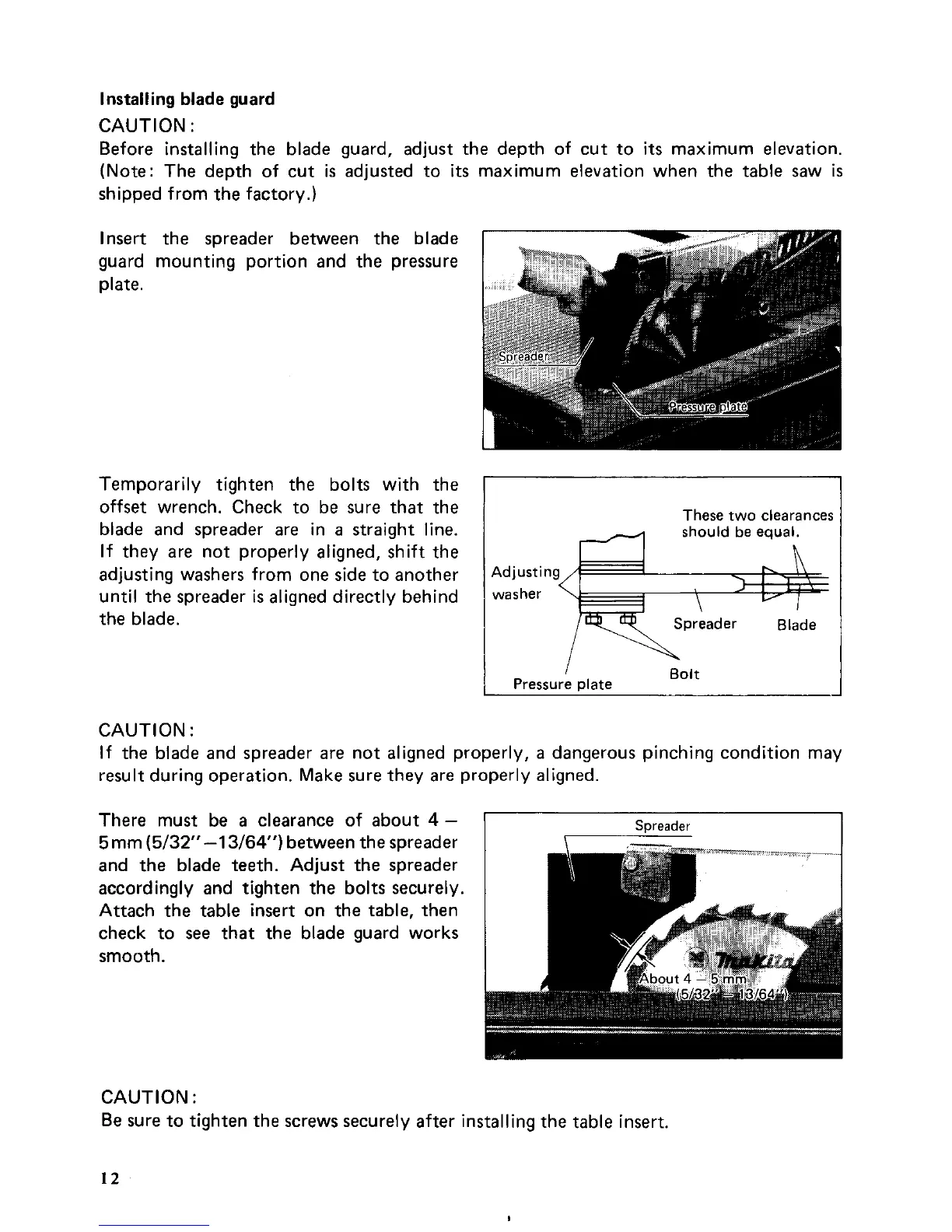

Installing blade guard
CAUTION
:
Before installing the blade guard, adjust the depth
of
cut to
its
maximum elevation.
(Note: The depth of cut
is
adjusted to
its
maximum elevation when the table saw
is
shipped from the factory.)
Temporarily tighten the bolts with the
offset wrench. Check to be sure that the
blade and spreader are in
a
straight line.
If they are not properly aligned, shift the
adjusting washers from one side to another
until the spreader
is
aligned directly behind
the blade.
These two clearances
should be equal.
r--l
h
washer
Spreader Blade
K'
/
Bolt
Pressure plate
CAUTION
:
If the blade and spreader are not aligned properly,
a
dangerous pinching condition may
result during operation. Make sure they are properly aligned.
There must be
a
clearance of about
4
-
1
Soreader
1
5 mm (5/32"-13/64") between the spreader
and the blade teeth. Adjust the spreader
accordingly and tighten the bolts securely.
Attach the table insert on the table, then
check to
see
that the blade guard works
smooth.
I
-,
----
I
CAUTION
:
Be sure to tighten the screws securely after installing the table insert.
12
