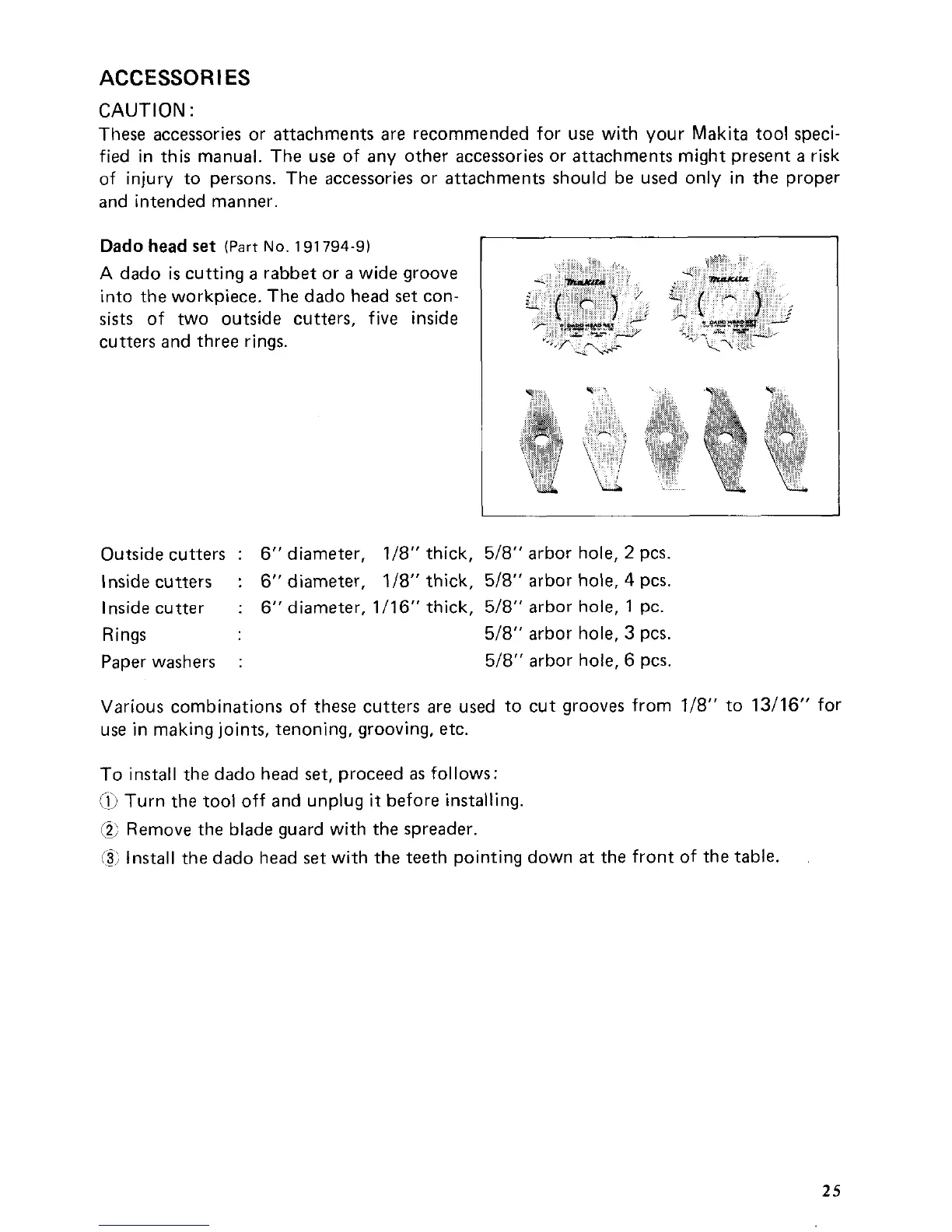

ACCESSORIES
CAUTION
:
These accessories or attachments are recommended for use with your Makita tool speci-
fied in this manual. The use of any other accessories
or
attachments might present
a
risk
of injury to persons. The accessories or attachments should be used only in the proper
and intended manner
Dado head set
(Part
No
191
794-9)
A
dado
is
cutting
a
rabbet or
a
wide groove
into the workpiece. The dado head
set
con-
sists
of two outside cutters, five inside
cutters and three rings.
Outside cutters
:
6" diameter,
1/8"
thick,
5/8"
arbor hole,
2
pcs.
Inside cutters
:
6" diameter,
1/8"
thick,
5/8"
arbor hole,
4
pcs.
Inside cutter
:
6" diameter, 1/16" thick,
5/8"
arbor hole,
1
pc.
Rings
518"
arbor hole, 3 pcs.
Paper washers
:
5/8"
arbor hole, 6 pcs.
Various combinations of these cutters are used to cut grooves from
1/8"
to 13/16" for
use in making joints, tenoning, grooving,
etc.
To install the dado head
set,
proceed
as
follows:
(1:
Turn the tool off and unplug
it
before installing.
(2;
Remove the blade guard with the spreader.
3,
Install the dado head
set
with the teeth pointing down
at
the front of the table
25
To Next Page
