MHT 10120 L M

Series

ENGAGING THE ACCESSORY

- Check that the accessory is in a position which simplifies connection

of the snap coupling. If it is badly positioned, take the necessary

precautions to move it in the conditions of maximum safety.

- Check that the rods of the locking cylinder are retracted.

- Position the lift-truck with the boom lowered squarely in front of and

parallel to the accessory and tilt the snap coupling forward (Fig. A).

- Bring the snap coupling into position below the accessory’s connec-

tion pipe, raise the boom slightly and tilt the connection back to posi-

tion the accessory (Fig. B).

- Raise the accessory off the ground for easier engagement.

HYDRAULIC LOCKING AND RELEASE (OPTIONAL)

- The accessory (if any) is locked and released using the optional con-

trol (which may be operated by a push-button or using the control

lever itself, depending on the type of truck). For further information,

refer to the use and maintenance manual provided with the truck.

REMOVING (AND PUTTING DOWN) THE ACCESSORY

- Proceed in reverse direction to the ENGAGING THE ACCESSORY

procedure, taking care to place it in a safe position on firm, flat

ground.

ACCESSORY WITHOUT HYDRAULIC SYSTEM AND HYDRAULIC LOCKING (OPTIONAL)

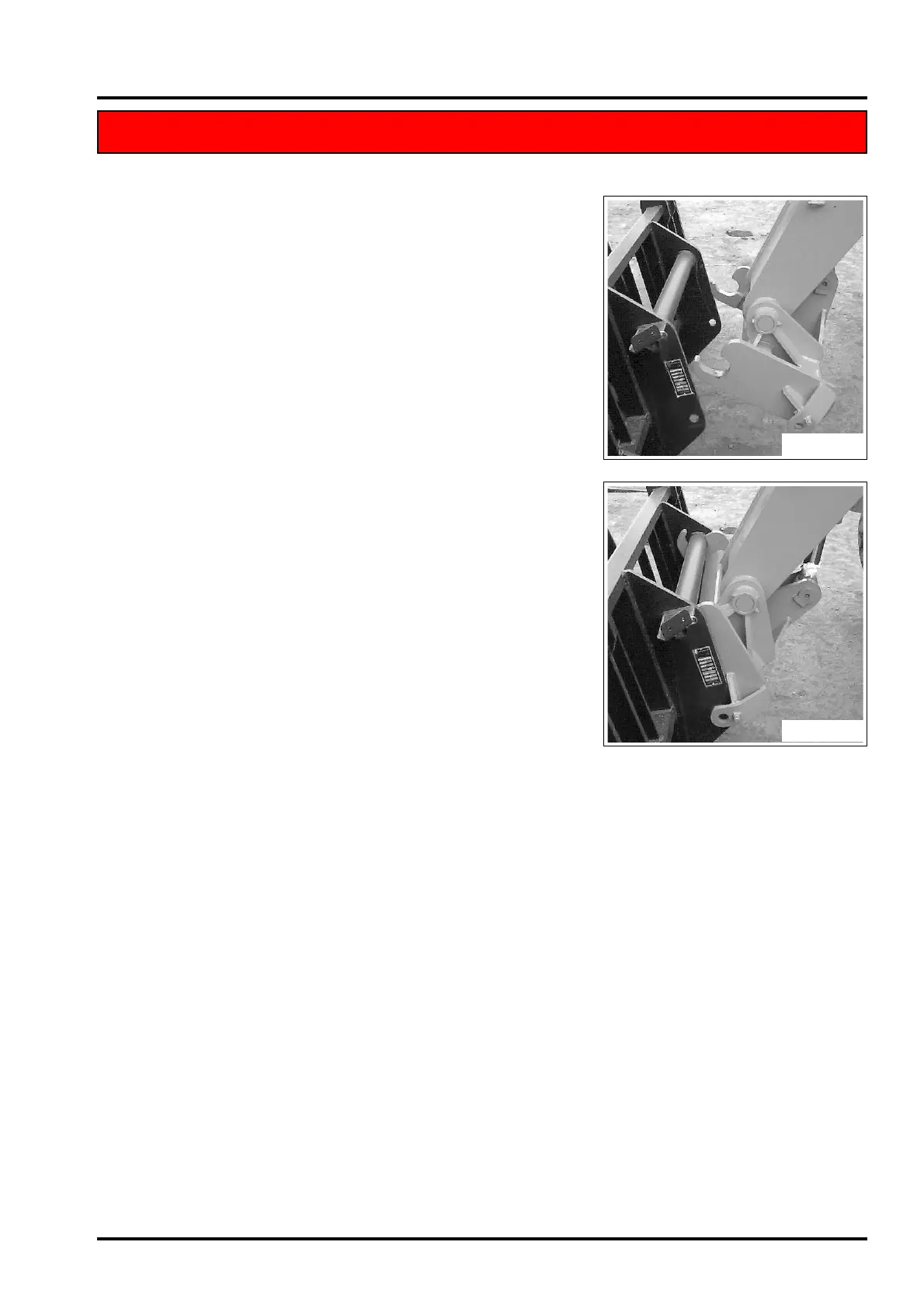

Fig. A

Fig. B
