ELECTRICAL SYSTEM RT765E-2 SERVICE MANUAL
3-2
Published 9-04-2014, Control # 422-08

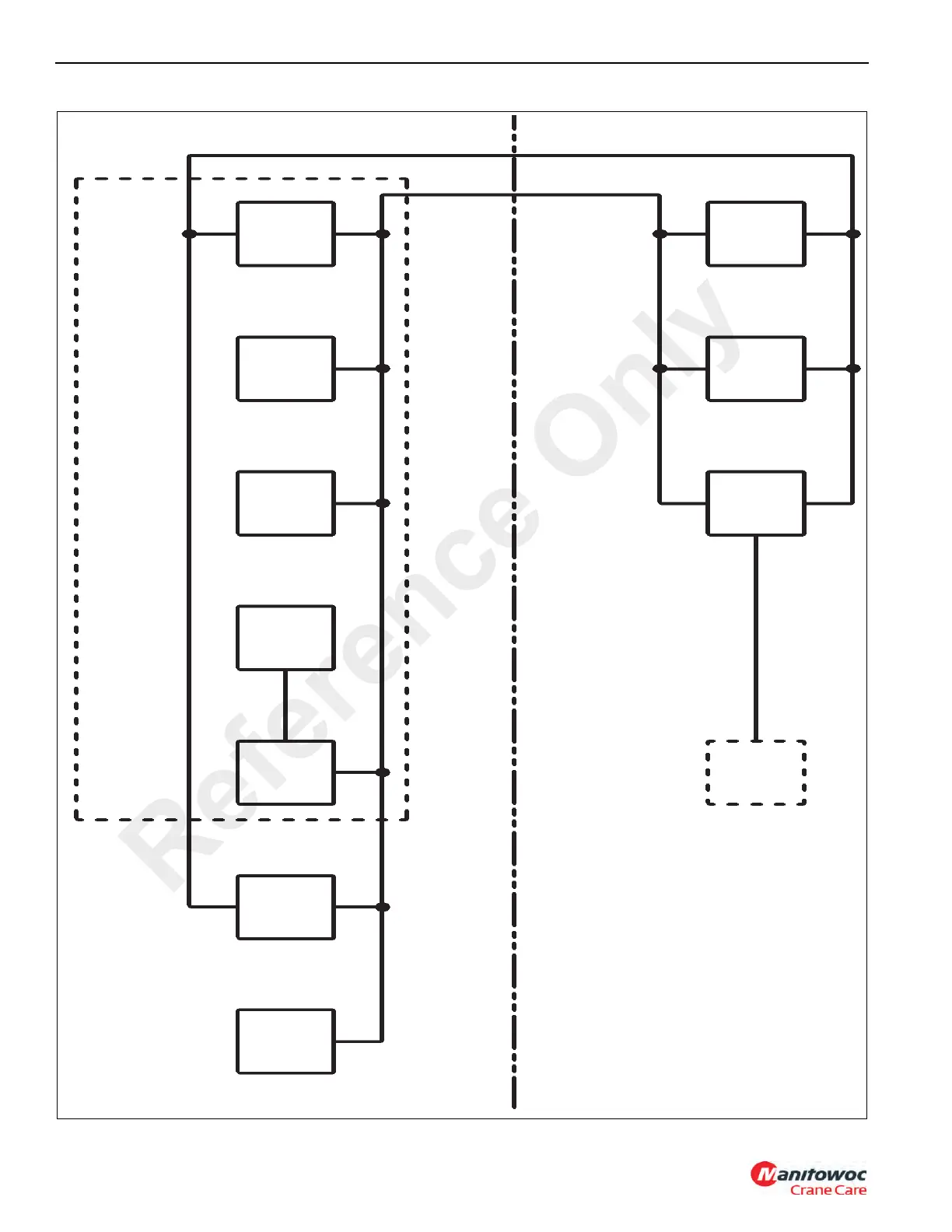

FIGURE 3-1
7747
Slave Module
T/T
PWR Mod
(Left side T/T)
Slave Module
T/T
I/O & Valve
Driver
(Right side T/T
Boom Pivot
Area)
RCL
Control
Module
Crane
Star
Slave
Module
S/S Cab
(Steering
Column)
Slave
Module
S/S Cab
(Front of
Cab)
Slave
Module
S/S Cab
(Behind Seat
on PWR
Panel)
Engine
ECM
Master
Module
(Battery
Box)
Slave
Module
Frame
(Front
Frame)
Slave
Module
Frame
(Rear
Frame)
Superstructure
Cab
Carrier
Engine
SwivelSwivel SwivelSwivel
Reference Only
