15
Installation and Service Manual
OPERATION

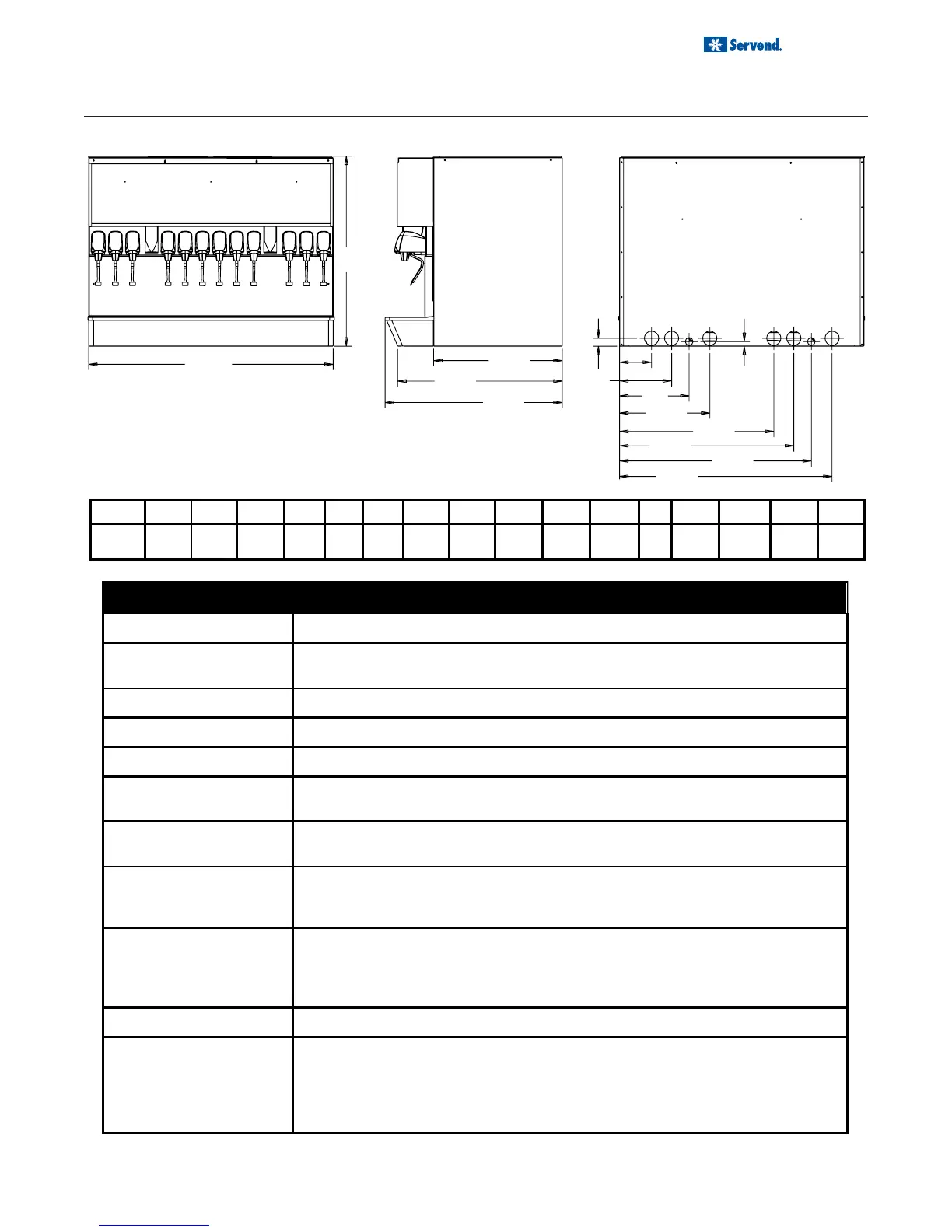

MII-302 MEASUREMENTS & SPECIFICATIONS
MII-302
Standard Features Key Switch, Drain Kits, 12" high lighted merchandiser and timed agitation
Dimensions 42.75" W x 31" D x 34.25" H (inches)
108.6 W x 78.74 D x 87 H (cm)
Shipping Weights 470 lbs. / 213 kgs.
Countertop Weights 402 lbs. / 182 kgs.
Ice Storage Capacity 300 lbs. / 136 kgs.
Electrical Requirements Dispenser: 120V/60Hz/3.5FLA
Drain Two pre-installed 3/4" (1.9 cm) PVC (N.P.T.) drain fittings extends from drain pan. Ice
bin drains directly into drain pan for front clean out, no hook up necessary.
Machine Compatibility Manual fill or top-mount with compatible 30" wide ice machine. Certain top-mounted
machines may reduce storage capacity. Contact distributor or MBS for baffle and ice
maker lid requirements for top-mounted ice machine applications.
Graphic Area Dimensions Standard Physical trim - 42.625" W x 11" H (108.2 W x 27.94 H (cm))
Visual area - 41.75" W x 10.062" H; (106 W x 25.56 H (cm))
Extended Merchandiser:Physical trim - 42.5" W x 23.813" H (107.95 W x 60.49 H (cm)
Visual area - 41.624" W x 22.875" H (105.72 W x 58.1 H (cm))
Service Motor, drain and electrical connections are front serviceable.
Options The MII-302 will accommodate up to 12 Flomatic 464 (at 3-4 oz/sec) beverage valves.
F-464 valves are available in sanitary lever, push button, Autofill lever and portion
control. Other valves available, contact factory for details. Leg kits not available for
MDH-302. Other options: regulators, carbonator, side water lever installation kits and
side splash panels.
A
H
K
L
D
M
N
O
P
Q
F
E
G
J
C
ABCD
1.38" 5.59" 9.10" 12.16"
EFG H
31.00"
KLMNO QPUnit
33.25" 12.50" 42.75" 28.78" 22.50" .82" 26.97" 30.47" 33.75" 37.16"MII-302
J
15.78"
